Title: 8500 Adjustment & Calibration Document No: 129AC000 Sheet 11 of 12
BLEASE QUALITY DOCUMENT
BQD 083.V2
25/5/94
4. 17 Front Panel Calibration Adjustment

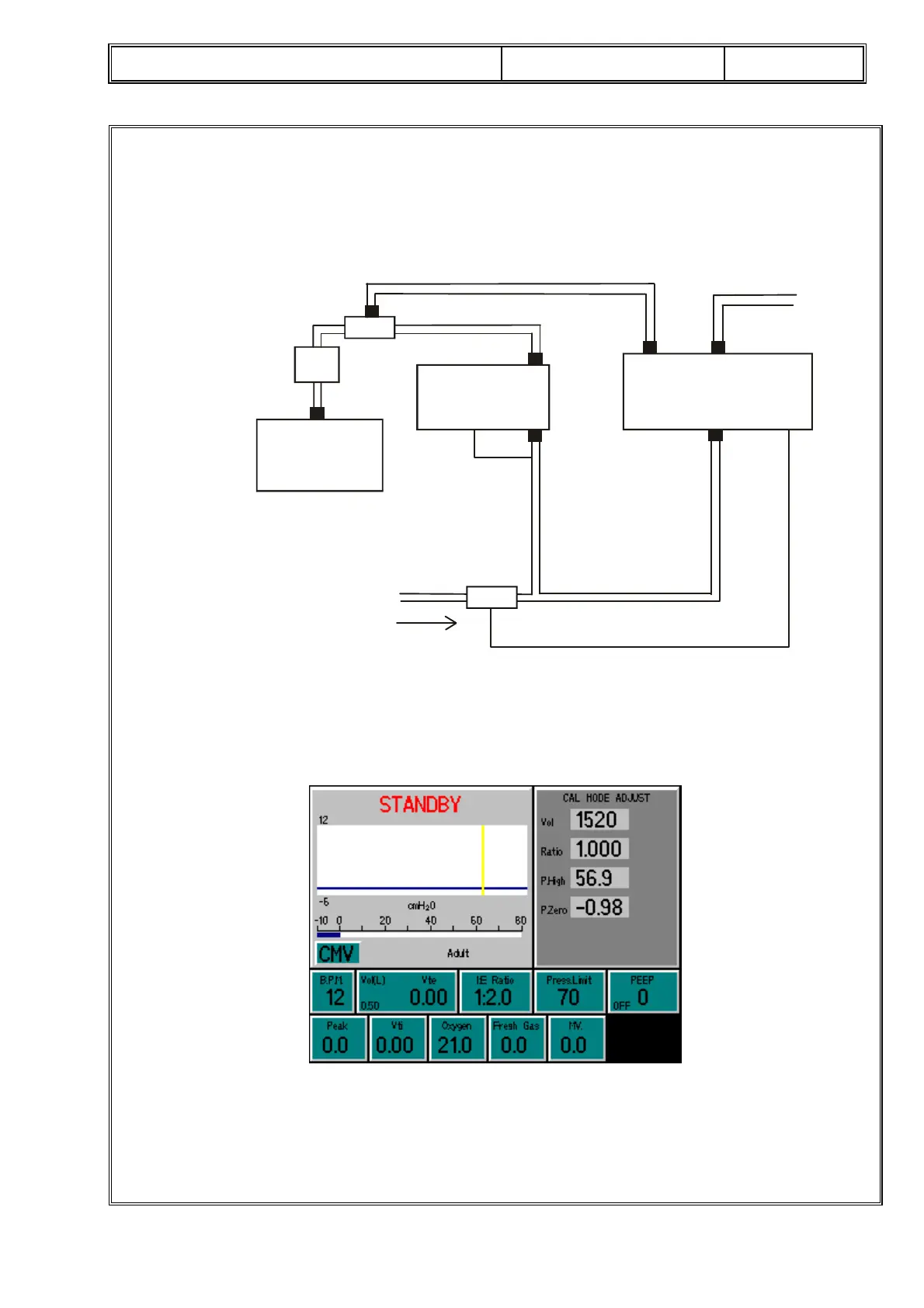

Set-up the vetilator in a full circuit including an absorber (See below). Run the ventilaor and
compare the values displayed on the front panel of the ventilator with the values displayed by the
calibration analyser.
20R
Resistor
20 L
Compliance
12600010
Calibration
Analyser
Fresh gas is set for minimum required
to maintain full bellows <0.5 l/min
Lo pressure
Inlet P+
Anaesthesia Ventilator
Bellows and Absorber
Driving
Gas
Short Hose
Hi Flow
Outlet
Hi Flow
Inlet
Patient
Circuit
Fresh Gas Sensor
Flow Sensor
If adjustment of the displayed Vte, Vti and Peak pressure is required the calibration values can
be adjusted by pressing the save key and selecting configuration then setup, enter the password
PRAAA. This disables the alarms and replaces the alarm panel with a new menu. (See
below).
Changing the gain factor in the Vol box effects both Vti & Vte. Once Vte is satisfactory the
Ratio of Vti to Vte can be adjusted by changing the ratio value. The peak pressure value is adjusted
by changing the value in the P.High Box and the zero pressure value is adjusted by changing the
value in the P.Zero box.
To Next Page
