Assembly:
Step One: Install the 3/8” diameter stainless CO
2
tube into the top of the
grip. The tube is held in place with an o-ring located inside of the grip. Push
the tube until it hits the stop inside the grip. (Figure 2)
Step Two: Slide the smaller diameter (1/4”) beer tube inside the CO
2
tube
and through the hole in top of the grip. (Figure 3)
Step Three:
Slide the spring onto the CO
2
tube and then slide the beer
trigger onto the tube. (Figure 4)
Step Four:
Install the small black silicone valve seat onto pin of the “U”
shaped stainless beer clip as shown. Then install the beer clip onto the
groove on the end of the CO
2
tube. (Figure 5)
Step Five: Pull the beer trigger over the top of the grip and snap the slot
into the groove of the beer tube. (Figure 6)

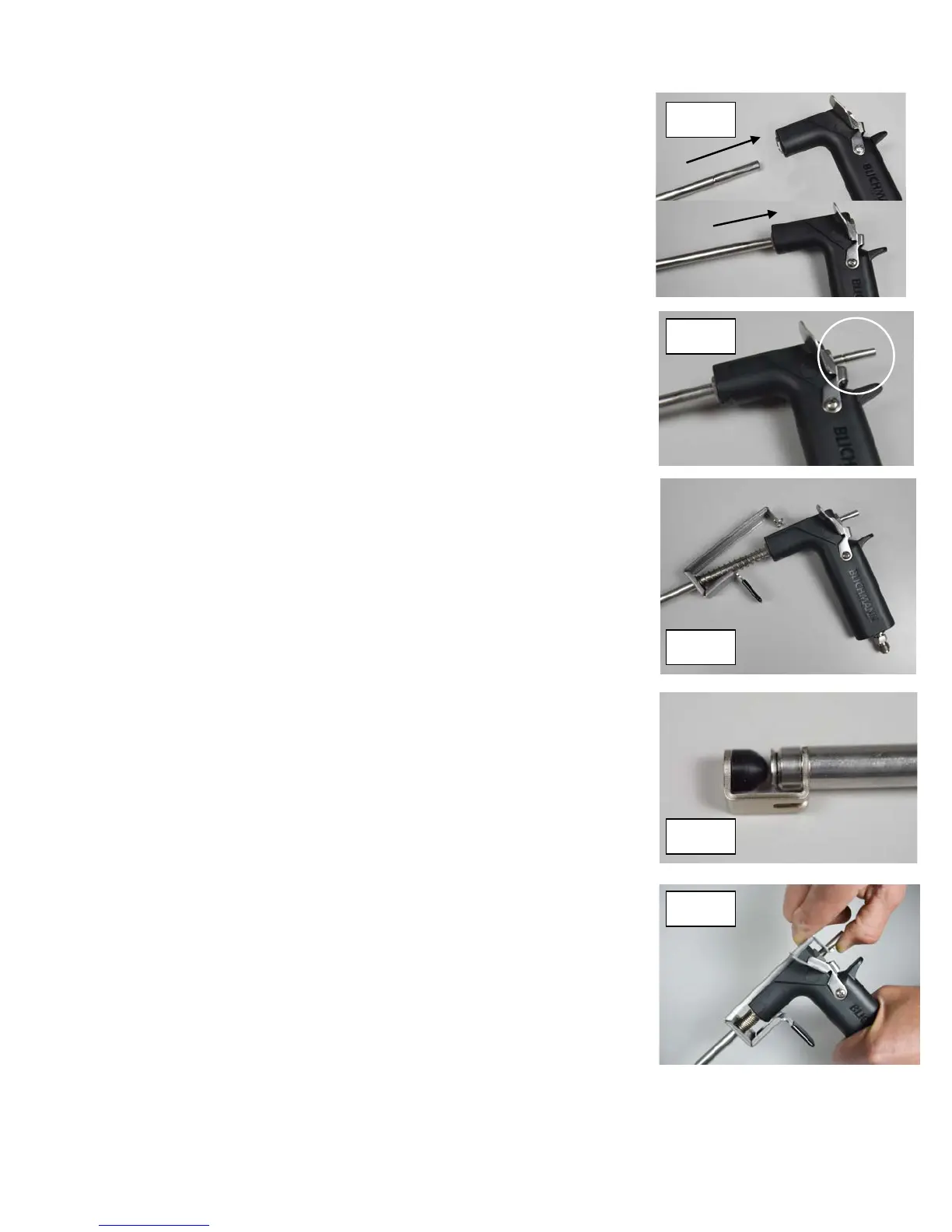

Fig. 2
Fig. 3
Fig. 4
Fig. 5
Fig. 6
