Blitz FATT DC - Turbo Timer Installation Procedure; Step-by-Step Installation Guide

To Next Page

To Previous Page

Installation Procedure

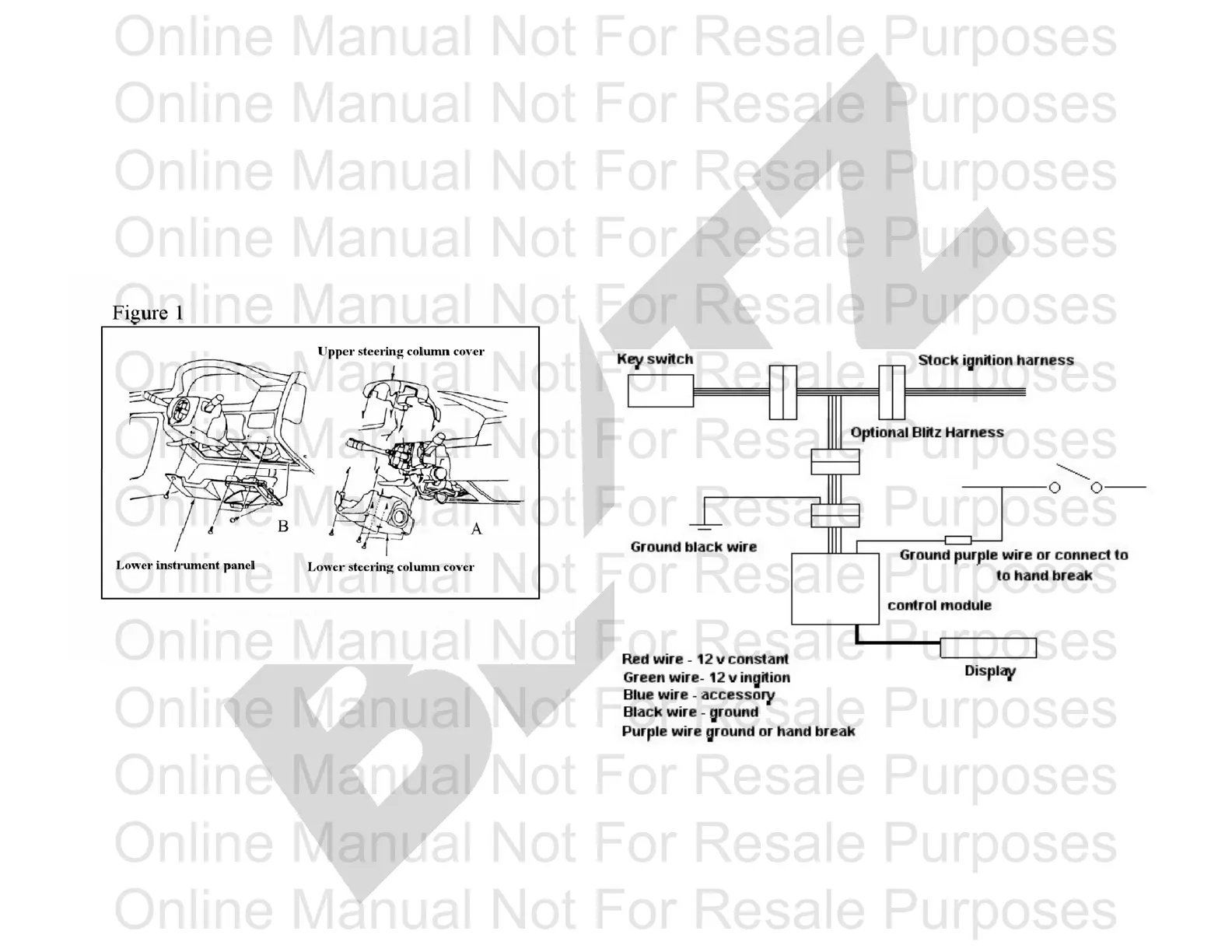

4. Pull out the starter coupler located in figure 1 and connect the

1. Remove lower instrument panel as shown in figure 1 #B. genuine Blitz turbo timer harness (sold separately) into the starter

2. Remove upper and lower steering column cover as shown in figure 1 #A. coupler.

3. Locate the key ignition coupler. 5. Connect the Blitz turbo timer harness to the 3 pin connector

as shown below.

6. Connect 3 pin harness to 4 pin harness.

7. Ground all black wires as shown in figure 2. Ground should be metallic

portions and avoid painted surfaces.

8. The purple wire should be grounded or hooked up to the hand break.

*Illustration shown above is reverse.
