Blitz GHUSE Series - Page 38

3252002

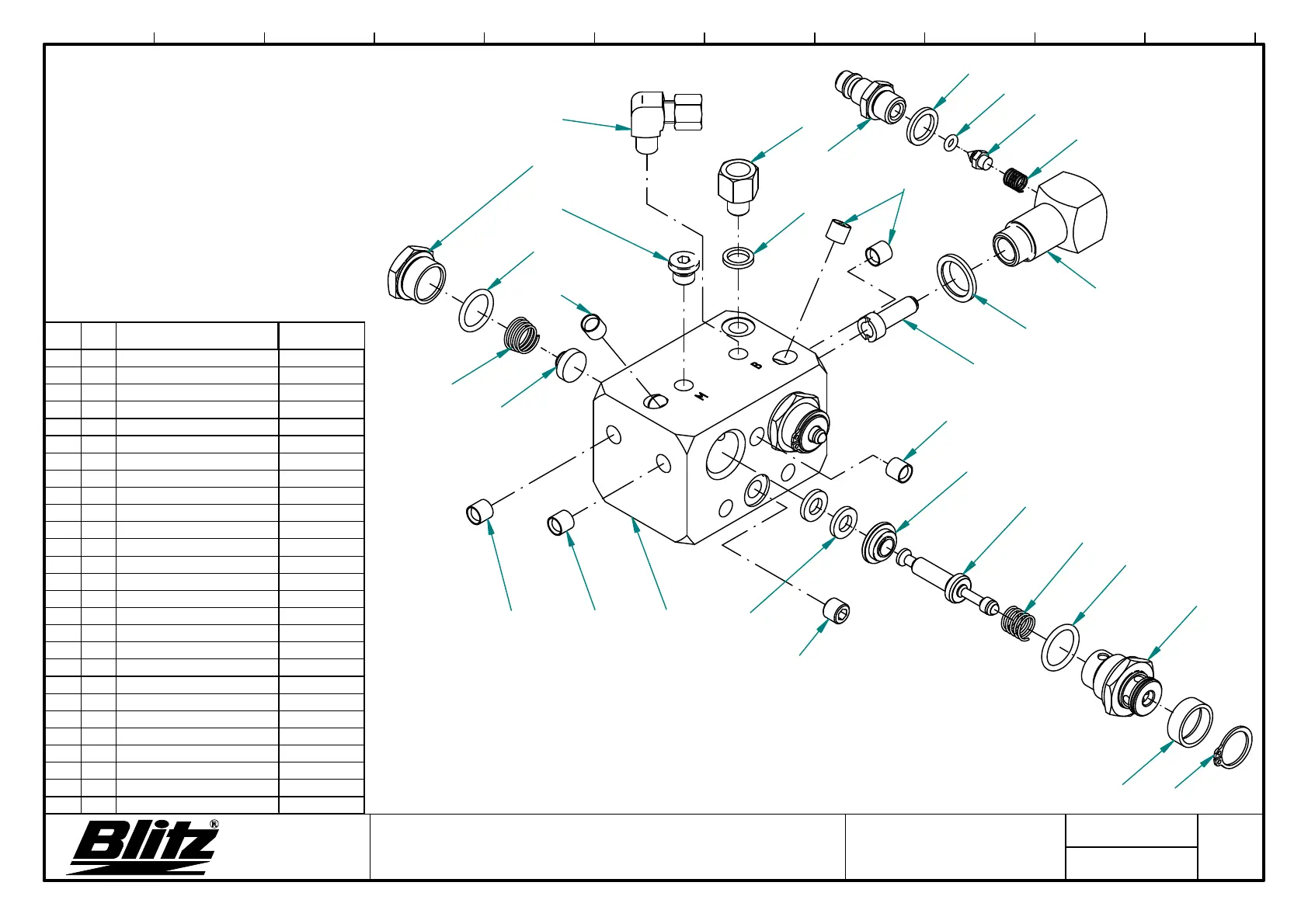

Steuerung kpl. GWUS
shirth
25/02/08
Blatt 3
von 3
012345678910
BlitzRotary GmbH
Hüfinger Straße 55
78199 Bräunlingen
Pos. Stk.
Description (en)
Order-No. vvvvvv
1 1 Valve body 3252201
2 2 Sealing cap 3252215
3 4 Seal f.valve seat 707104
4 2 Stop disk 3252204
5 2 Conical spring No. 128 3252214
6 2 Compression spring No. 142 3161108
7 2 Valve tappet cpl. 3252219
8 2 Retaining ring DIN 471 704009
9 2 Venting 3252210
10 2 Valve disk rubber 708100
11 2 Filter 708980
12 2 O-ring 16 x 2.5 707612
13 1 Captive disk R3/8 706705
14 1
Spout block 3259264
15 2 O-ring 18 x 2.5 707614
16 1 Sieve insert cpl. 3142015
17 1 Sealing ring Cu R 1/4" 706902
18 1 Compression spring No. 164 2518412
19 1 Non-return valve 3252268
20 1 O-ring 4 x 2 707601
21 1 Coupling spout 3253262
22 1 Sealing ring Cu R 1/8" 706801
23 1 Safety valve R1/8" 851700015
24 6 Seal plug 707035
25 1 Locking screw 3220234
26 1 Ermeto coupling 752020
27 1 Locking screw 705517
