Blitz GHUSE Series - Page 42

E18050811

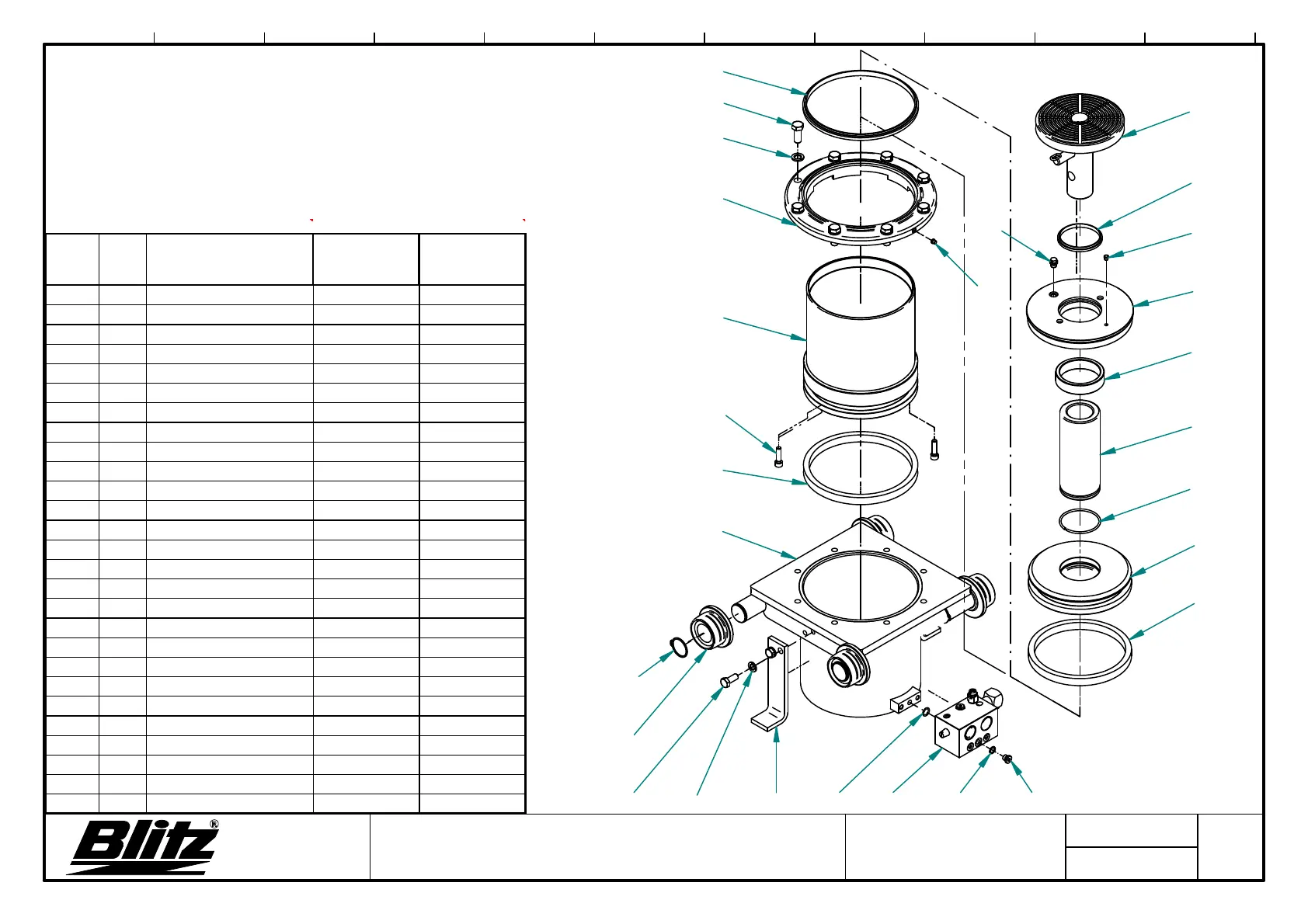

Hubeinheit kpl. GWSKTA
shirth
08/05/18
Blatt 1
von 1
012345678910
BlitzRotary GmbH
Hüfinger Straße 55
78199 Bräunlingen
16
4
11
13
24
22
8
27
1
2
10
26
7
19
25
6
17
23
18
14
15
3
9
12
5
20
21
14
Pos. Stk.
Description (en)
Order-No.
Order-No.
3/2,5
1 1 Lifting unit welded 3480300 3481300
2 1 Tappet w. piston 1st stage 34803200 34813200
3 1 Piston seal 119152 119152
4 1 Flange 3220326 3220326
5 1 Wiper ring 707918 707918
6 8 Spring washer 703515 703515
7 8 Hexagon bolt 700222 700222
8 1 Piston 2nd stage 3480341 3480341
9 1 Piston seal 119151 119151
10 1 Tappet 3480340 3481340
11 1 Flange ring 3220345 3220345
12 1 Wiper ring 707910 707910
13 1 Locking screw 3220347 3220347
14 2 Grease nipple 706349 706349
15 1 O-ring 707609 707609
16 1 Control cpl. 3220002 3220002
17 1 Sealing ring AI 703700 703700
18 1 Locking screw 705517 705517
19 2 Cylinder screw 701019 701019
20 1 Circlip 103011 103011
21 1 Spacer ring 117618 117618
22 4 Flanged roller 3261331 3261331
23 4 Retaining ring 704022 704022
24 2 Safety angle 3480971 3220971
25 4 Spring washer 703514 703514
26 4 Hexagon bolt 700211 700211
27 1 Disk cpl. 34809100 34809100
