Blitz VERSA Series - Page 4

2 102619 03/13
Operating Instruction
Component overview

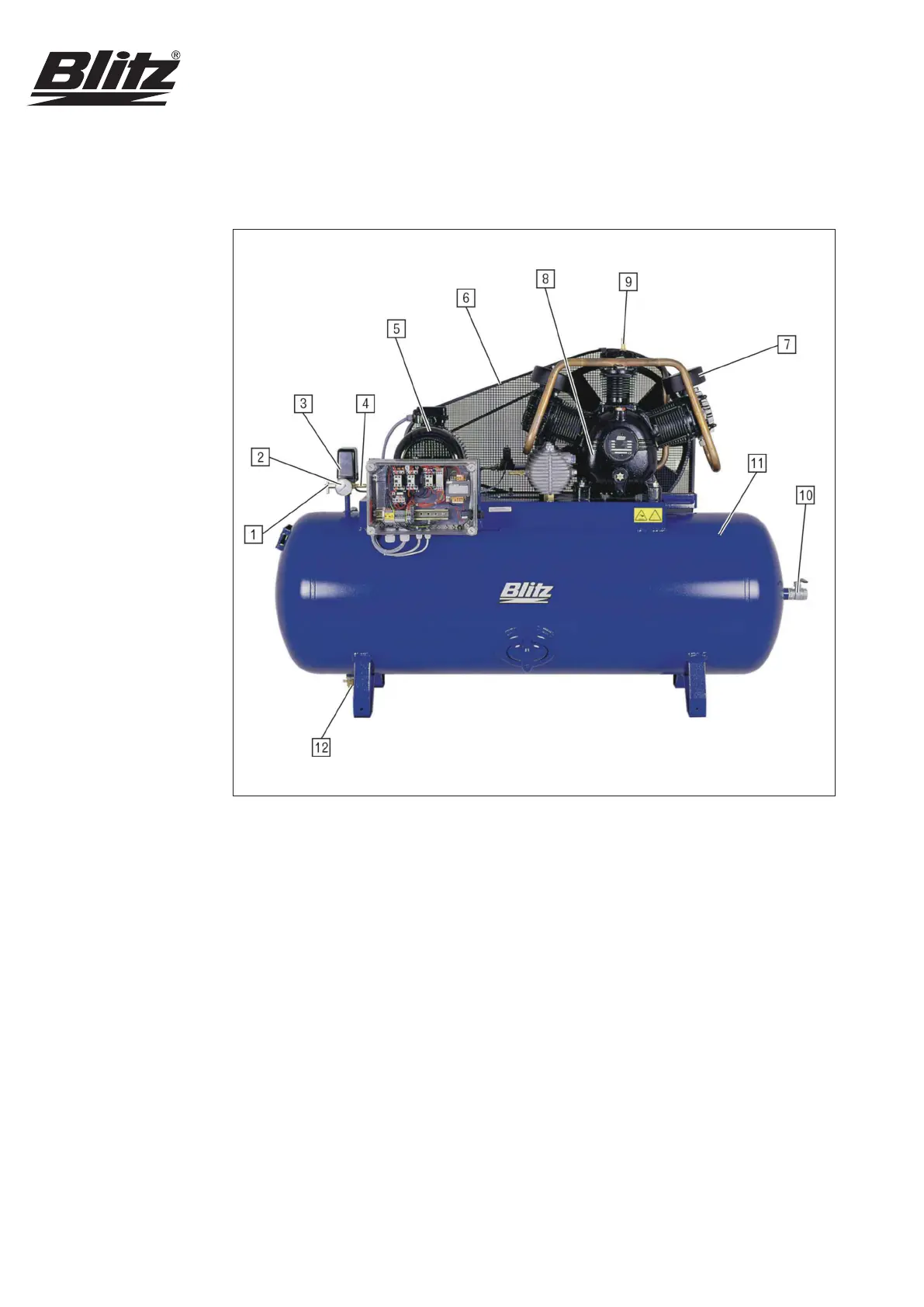

Fig.1: Component overview
1 Testange
2 Pressuregauge
3 Pressureswitch(operatingswitch)
4 Safetyvalve-ultimatepressure
5 Motor
6 Beltguard
7 Suctionlter
8 Compressoraggregate
9 Safetyvalve-intermediatepressure
10 Compressedairoutlet
11 Compressed-airreservoir
12 Condensationwaterdrain
