Notice :

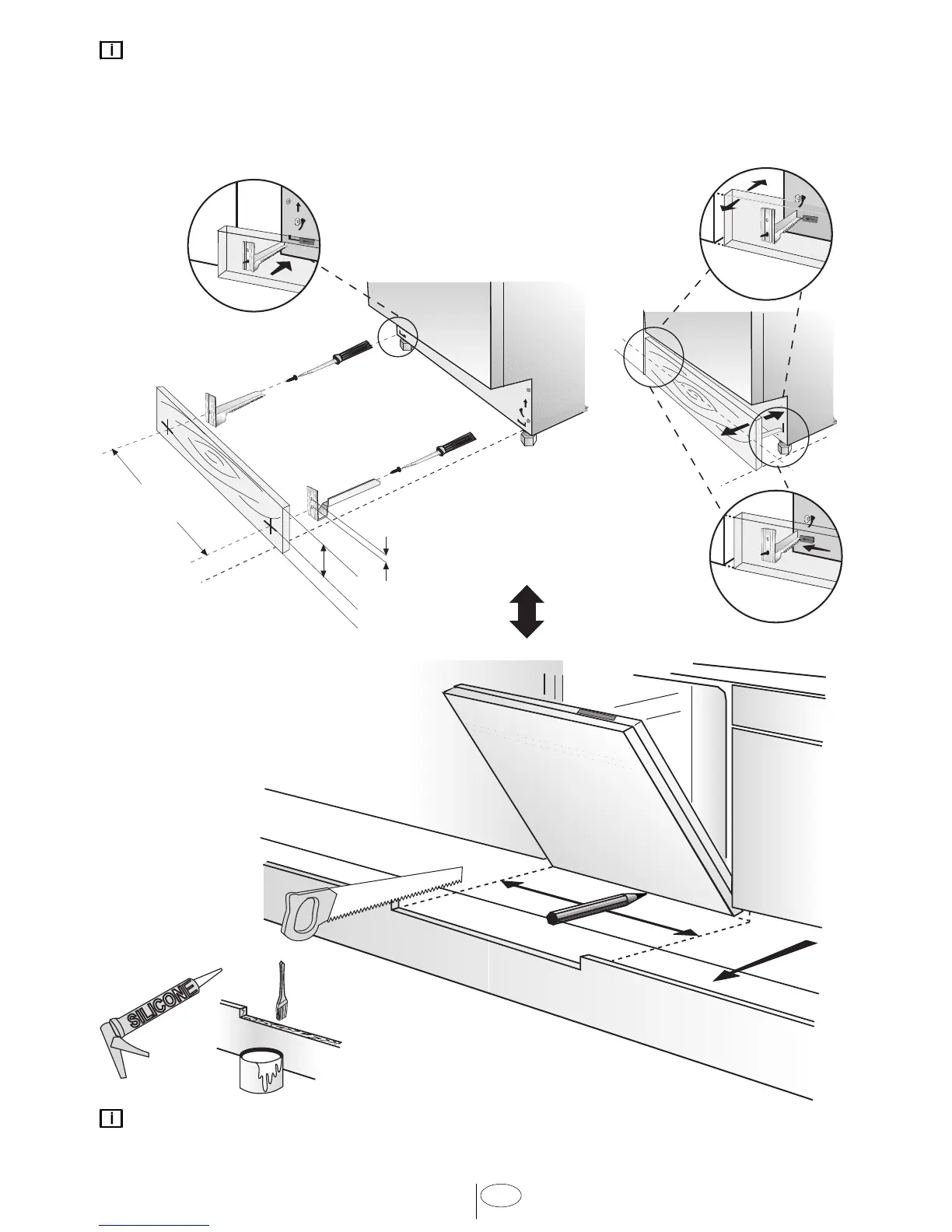

If you have a European kitchen or want to install a wooden toe kick to match your kitchen,
please refer to one of the two drawings given below. Follow the same instructions on the
brackets as for the removable toe kick.
Installation should be done following the steps illustrated in the figures A, B, C, D respectively.
See also page 17
See also page 22
Notice :
The installer is responsible for the dishwasher installation. Incorrect installation is not
covered by the warranty.
