Blomberg DWT37300 - Adjusting Door Tension with Custom Wooden Door

22
USA
A
B
0 kg
C

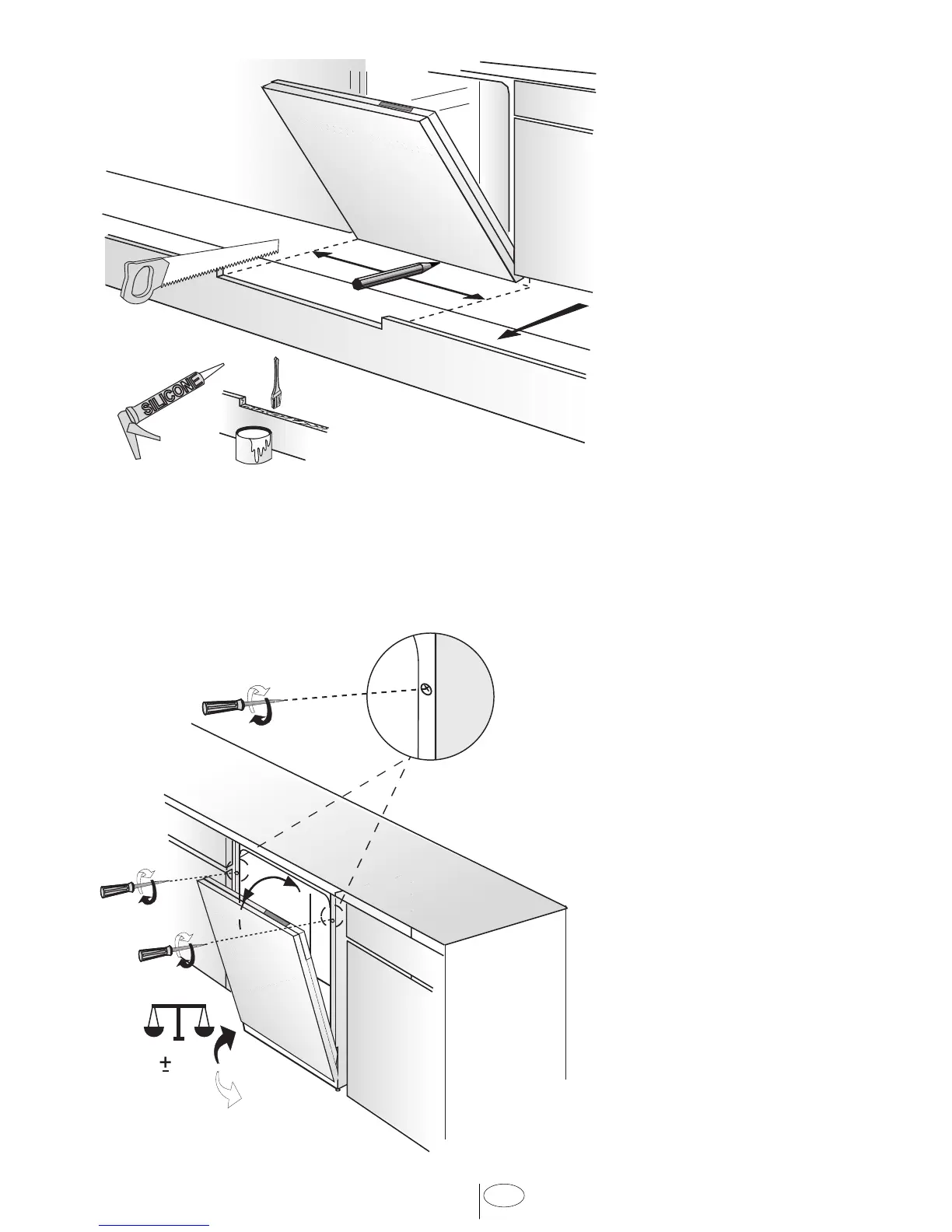

11. Check whether the bottom
of the door hits the toe kick of
the kitchen cabinet (A).
11.1. If the door hits the toe
kick cut the necessary section
out of the toe kick (B).
11.2. Apply silicon or sealant
to the cut edge of the kitchen
cabinet toe kick or paint so it
does not absorb moisture.
ADJUSTING DOOR TENSION WITH CUSTOM WOODEN DOOR
(DWT 34200, DWT 34400, DWT 35200, DWT 36200, DWT 37200, DWT 37300)
Check the door tension of the
dishwasher: If the door closes too
quickly or if the door falls open, the
spring tension needs to be adjusted.
The adjustment screws can be found
on the front of the dishwasher after you
open the door (see drawing).
Adjust the spring tension by turning
the screw to the right for more weight
and to the left for less weight (Figure C).
