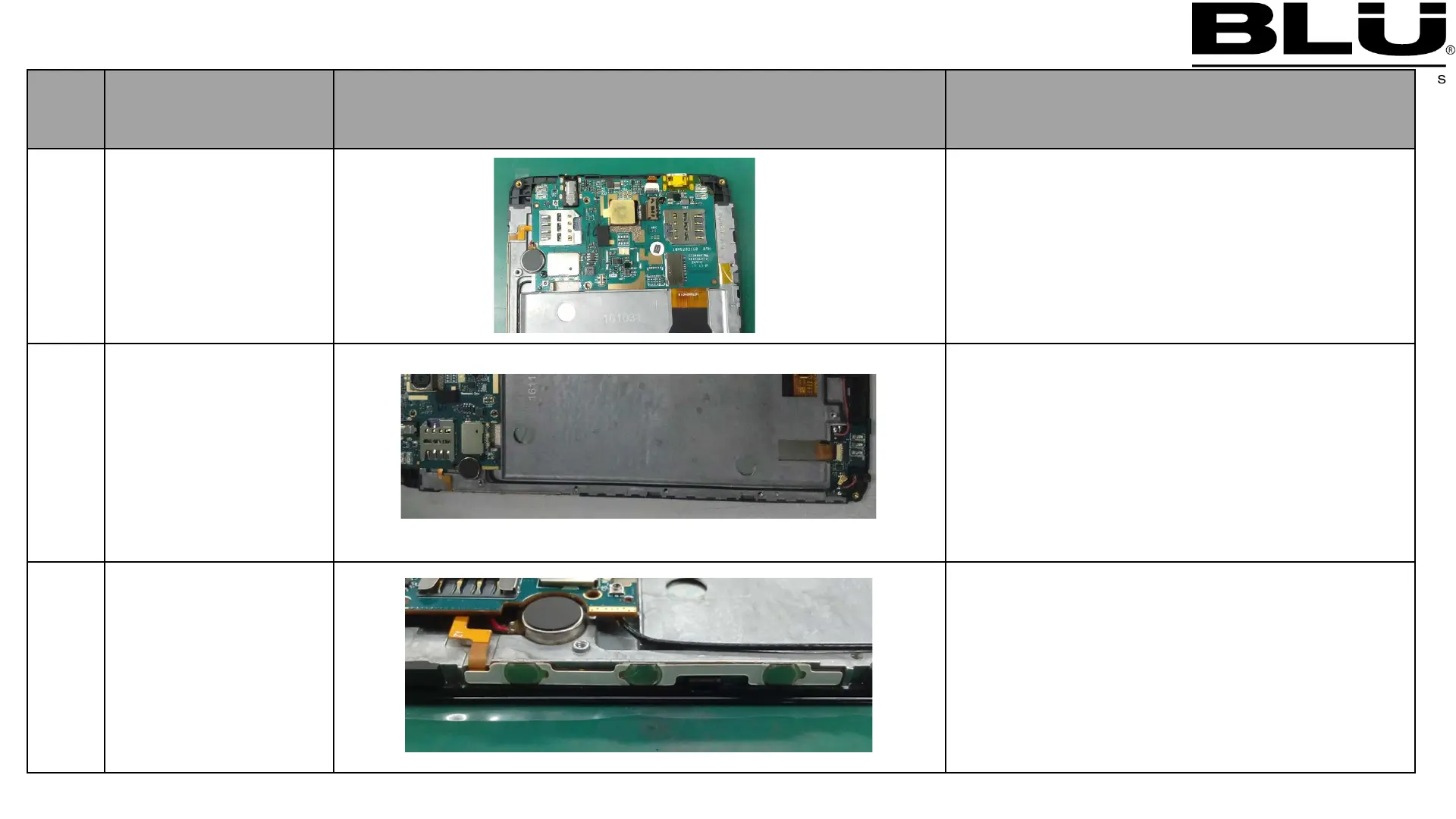

Blu Studio XL2 - Page 17

NO.
Operation name
Operation and note
10
Assemble main
pcba
1：Assemble main PCBA into the A shell
2：Assemble 2 pcs screws buckle board on
A shell
11
Straighten out the
same axis
1：The coaxial line is fixed in the groove
12
Assemble coaxial
cable connector
and motor
Tear off side key adhesive protect film,
Assemble side key component. Assemble
motor into A shell.
