Blu Studio XL2 - Page 18

NO.
Operation name
Operation and note

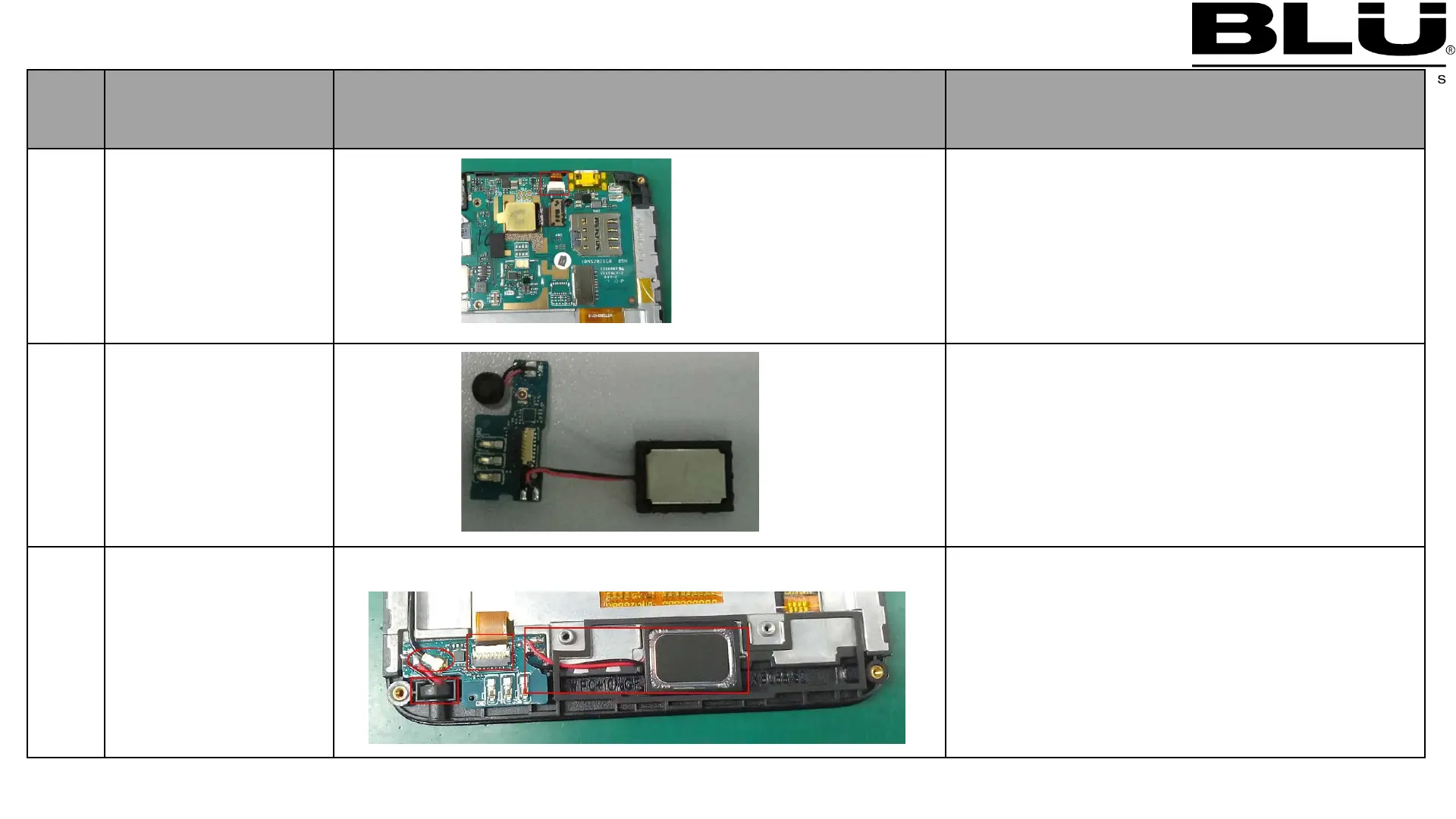

13
Assemble tp ic and
lcd connector
1.Assemble TP-IC and LCD FPC into
locker mechanism completely, as left picture
shown;
2.Close the locker with tweezers as left
picture shown
14
Assemble mic and
Speake
1：Mic red is positive black line is negative
2：Speaker red is positive black line is negative
15
Assemble SUB
board
1.Assemble SUB FPC into locker
mechanism completely, as left picture
shown;
2.Assemble Coaxial cable connector
3.Assemble Mic into A shell
4.Assemble Speaker into A shell
