Blue Bird BB550A - Rear Axle

29

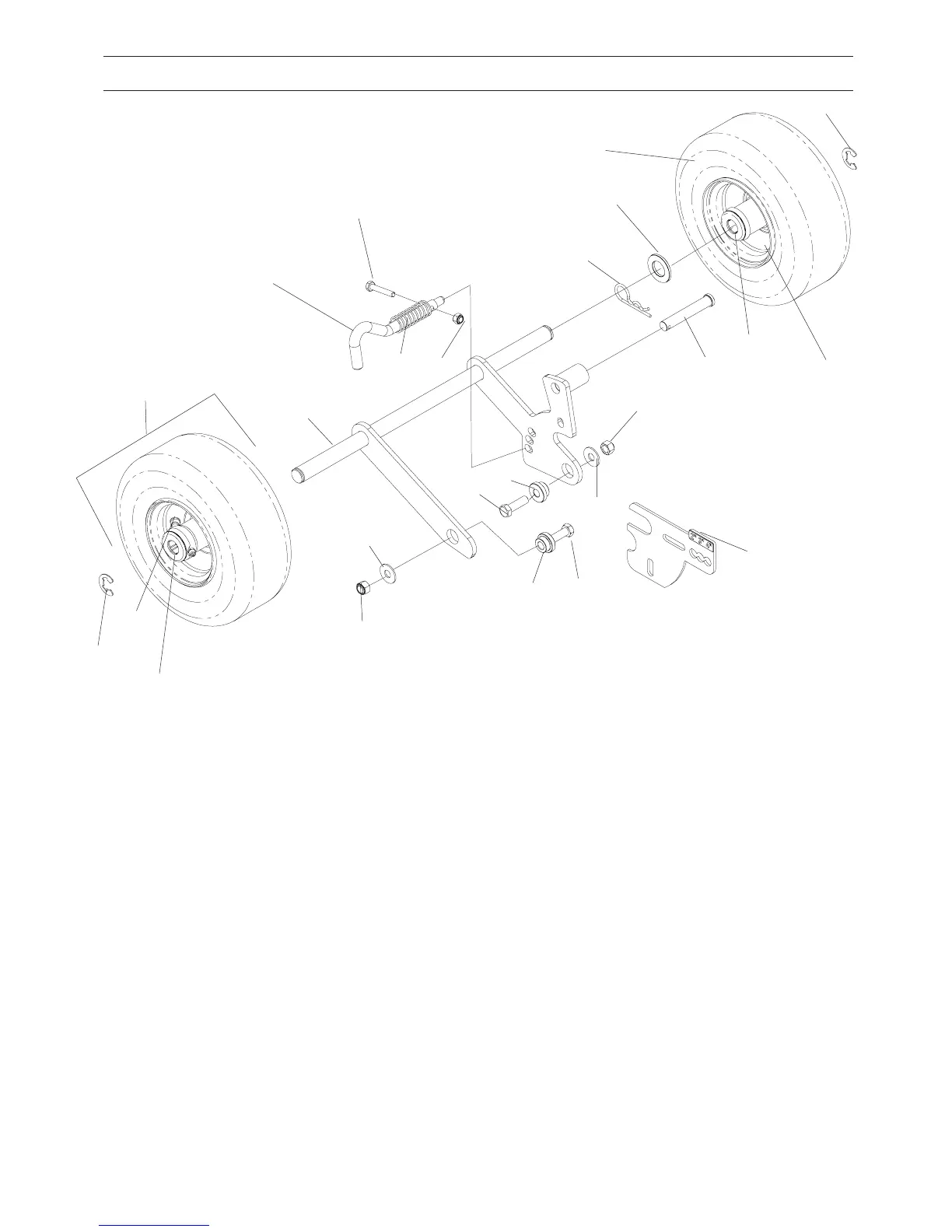

REAR AXLE
ITEM PART NO. QTY. DESCRIPTION
1 ........ 109736........1........ AXLE, REAR
2 ........ 102454........2........ E-RING, 3/4”
3 ........ 976979........2........ NUT, 3/8C, NYLOC
4 ........ 976941........2........ HCS, 3/8-16 X 1 1/4, GR5
5 ........ 106847........2........ BUSHING
6 ........ 109526........1........ SPRING PIN
7 ........ 990639........1........ HCS, 1/4-20 X 1 1/2, GR5
8 ........ 976978........1........ NUT, 1/4C, NYLOC
9 ........ 20034..........1........ SPRING, COMPRESSION
10 ...... 990517........2........ WASHER, 3/8
11 ...... 109333........2........ WASHER, 3/4, SAE
12 ...... 111100 ........1........ DEPTH PLATE W/DECAL
13 ...... 109226........1........ CLEVIS PIN, 1/2 x 2 1/4
14 ...... 976989........1........ #4 HAIRPIN
15 ...... 104556........2 ........ WHEEL ASSEMBLY
16 ...... 101905........1........ TIRE
17 ...... 104618........1........ RIM
18 ...... 912234........1........ AIR VALVE
19 ...... 923557........1........ ENDCAP
20 ...... 977356........1........ NOTCHED ENDCAP
.......... 977353........2........ ROLLER BEARING (NOT SHOWN)
1
2
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
3
4
5
10
3
2
(ASSEMBLED TO
FRAME)
