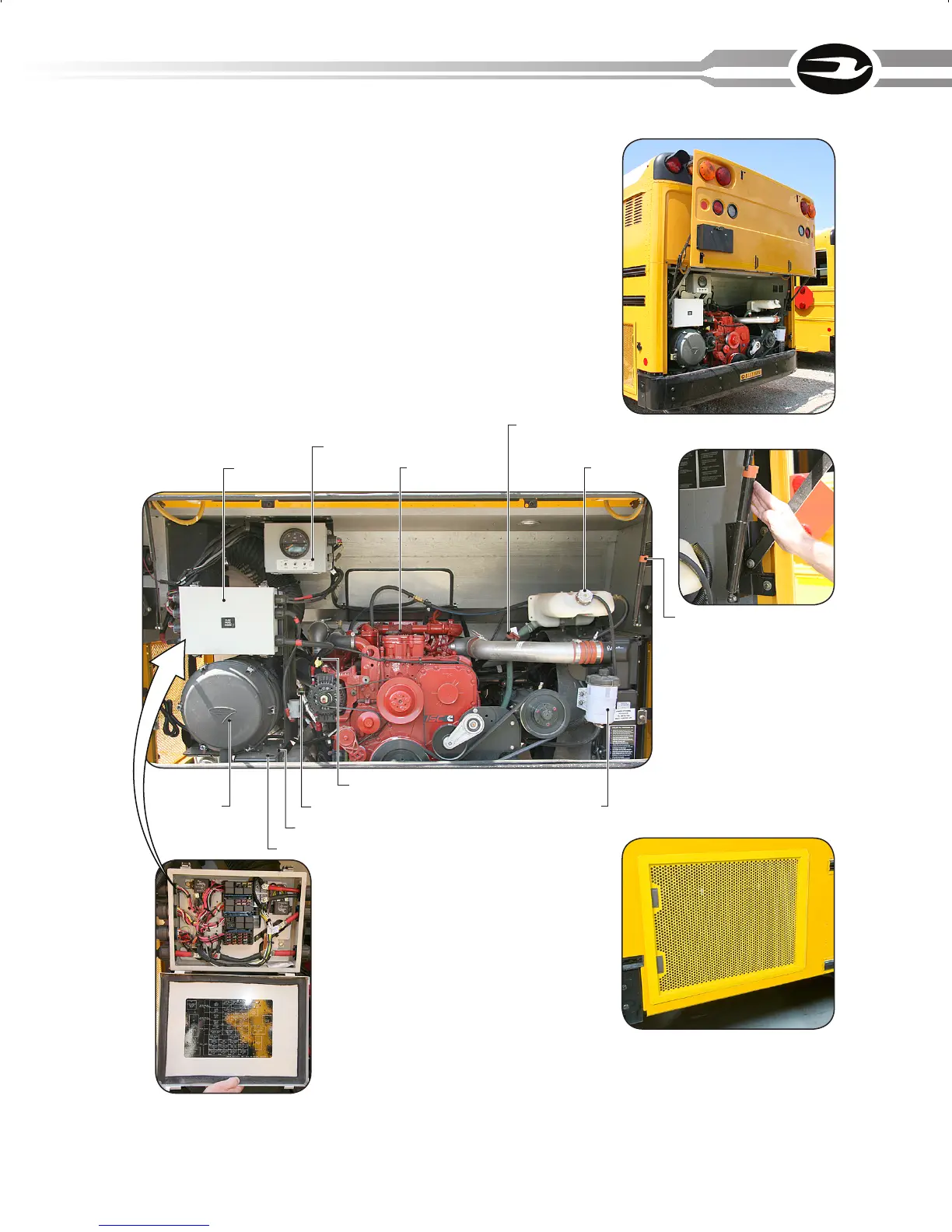

Engine Access
To open the door, press release button latches located in four places on the engine
door. Pull and lift the access cover allowing it to fully open, up and out of the way.
This will allow access to engine components, such as the oil dipstick, engine oil fill,
transmission fluid dipstick, etc.
To gain better access to the front side of the engine, utilize the rear driver’s side
access grille. The right side grille will allow access to the radiator for cleaning. Release
two press button latches at the rear edge of the panels to open.
[CAUTION] Engine and components can be very hot. If the engine has been
running, be careful to avoid burns during engine access and removal process.
Service Technician’s Control Panel (Optional)
Chassis PDU
Radiator Fill
Air Restriction Indicator
Rear Schrader Valve
Engine Block Heater Connection
Power Steering Fluid Reservoir
Use Dexron III steering uid only.
Oil Fill Location
Engine Oil Dipstick
Engine Access Door Prop Release
Push in to close engine access door
Fresh Air Intake
Filter Element
Transmission Fluid Dipstick
Use Transynd transmission
uid only.
Rear Side Access Grille
To Open PDU release four Spring Release Latches
