AR BLUE CLEAN 7830 - 7850 - 7870
USE AND MAINTENANCE HANDBOOK page 13

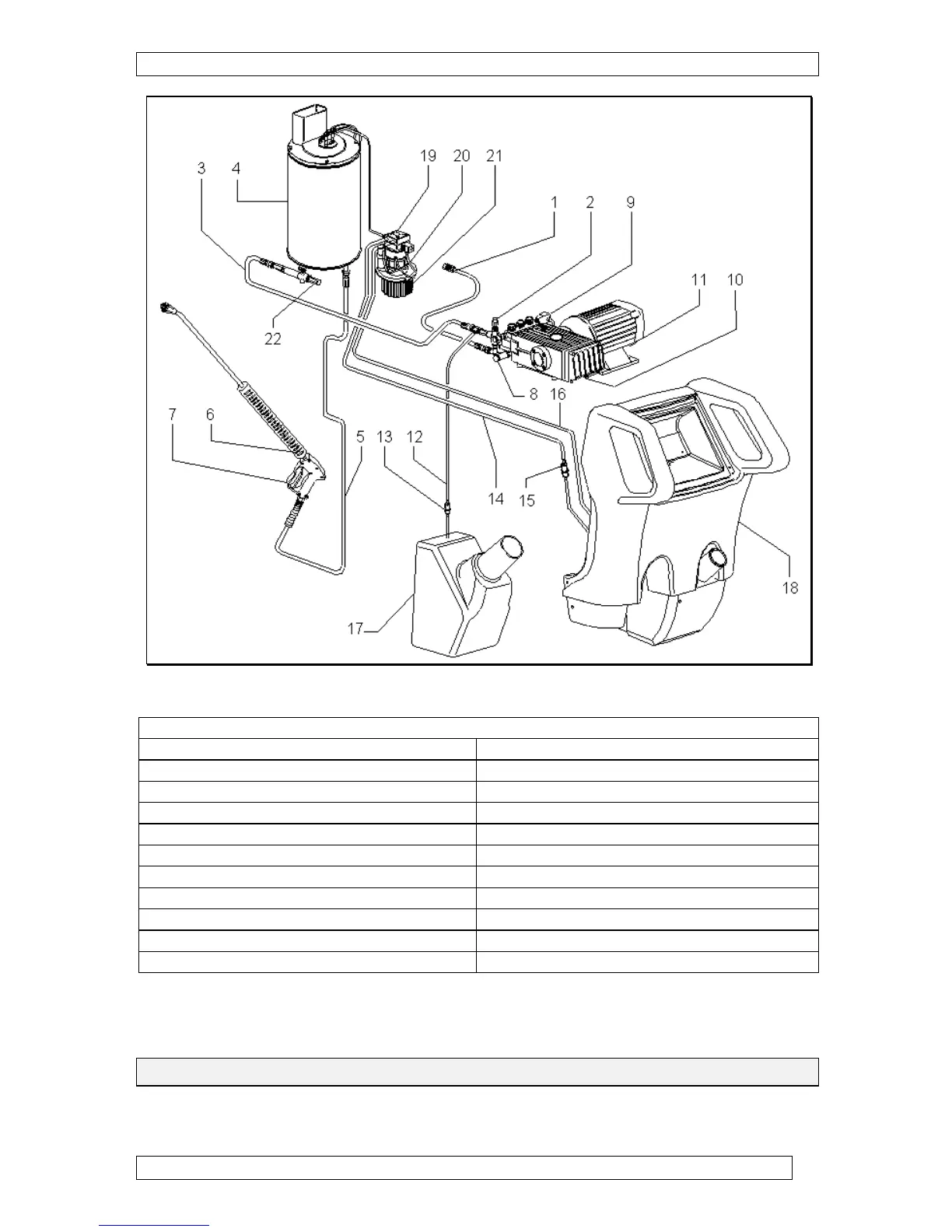

SYSTEM DESCRIPTION
1 – Water intake pipe
12 – Detergent ejector
2 – Udjustable pressure valve
13 – Detergent filter
3 – Intake pipe to boiler
14 – Fuel intake pipe
4 – Boiler
15 – Fuel filter
5 – High pressure hose
16 – Fuel outlet pipe
6 – Lance
17 – Detergent tank
7 – Gun
18 – Fuel tank
8 – By-pass valve
19 – Fuel pump
9 – Pressure switch
20 – Motor-fan
10 – Pump
21 – Fan
11 – Electric motor
22 – Safety valve
