FX PRO II NE4517,NE4518,NE4519,NE4520,NE4521,NE4522

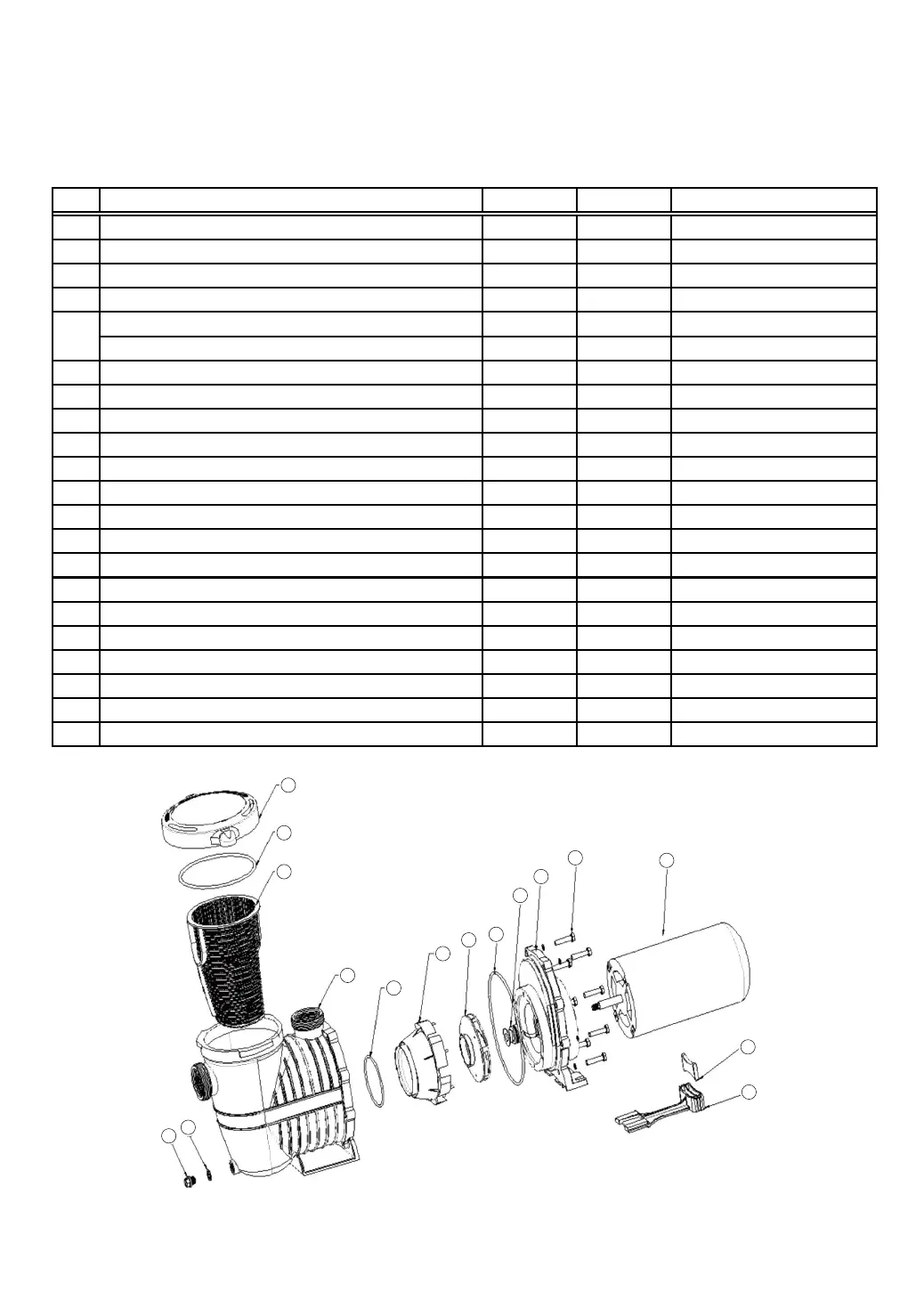

PUMP SERIES PARTS BREAKDOWN
Key Part Name Manf. No. B.W. No. For Model#
1 LID W/TRANSPARENT COVER HTI001 NEP4209 All
2
O-RING
HTI002
NEP4210
All
3
BASKET
HTI003
NEP4211
All
4
STRAINER
HTI004
NEP4212
All
5
DRAIN PLUG
HTI005
NEP4213
All
DRAIN PLUG O-RING
HTI006
NEP4214
All
6
O-RING
HTI007
NEP4215
All
7
DIVERSION SETS
HTI008
NEP4216
All
8
IMPELLER OF ITEM#HTI 075/HTI2SP 075
HTI009
NEP4217
NE4519
8
IMPELLER OF ITEM#HTI 100/HTI2SP 100
HTI010
NEP4218
NE4517 & NE4520
8
IMPELLER OF ITEM#HTI 150/HTI2SP 150
HTI011
NEP4219
NE4518 & NE4521
8
IMPELLER OF ITEM#HTI 200/HTI2SP 200
HTI012
NEP4220
NE4522
9
O-RING
HTI013
NEP4221
All
10
PUMP HOUSING
HTI014
NEP4222
All
11
SCREW
HTI015
NEP4223
All
12
MOTOR OF ITEM#HTI 100
HTI017
NEP4225
NE4517
12
MOTOR OF ITEM#HTI 150
HTI018
NEP4226
NE4518
12
MOTOR OF ITEM#HTI2SP 075
HTI020
NEP4228
NE4519
12
MOTOR OF ITEM#HTI2SP 100
HTI021
NEP4229
NE4520
12
MOTOR OF ITEM#HTI2SP 150
HTI022
NEP4230
NE4521
12
MOTOR OF ITEM#HTI2SP 200
HTI023
NEP4231
NE4522
13
CARRIER
HTI024
NEP4232
All
1
2
3
4
6
7
8
9
8
10
11
12
5
5
13
13
