Blue Wave Flow Xtreme NE4521 - Parts Breakdown

FX PRO II NE4513,NE4514,NE4515, ,NE4516 NEP4208 PUMP SERIES
page 14

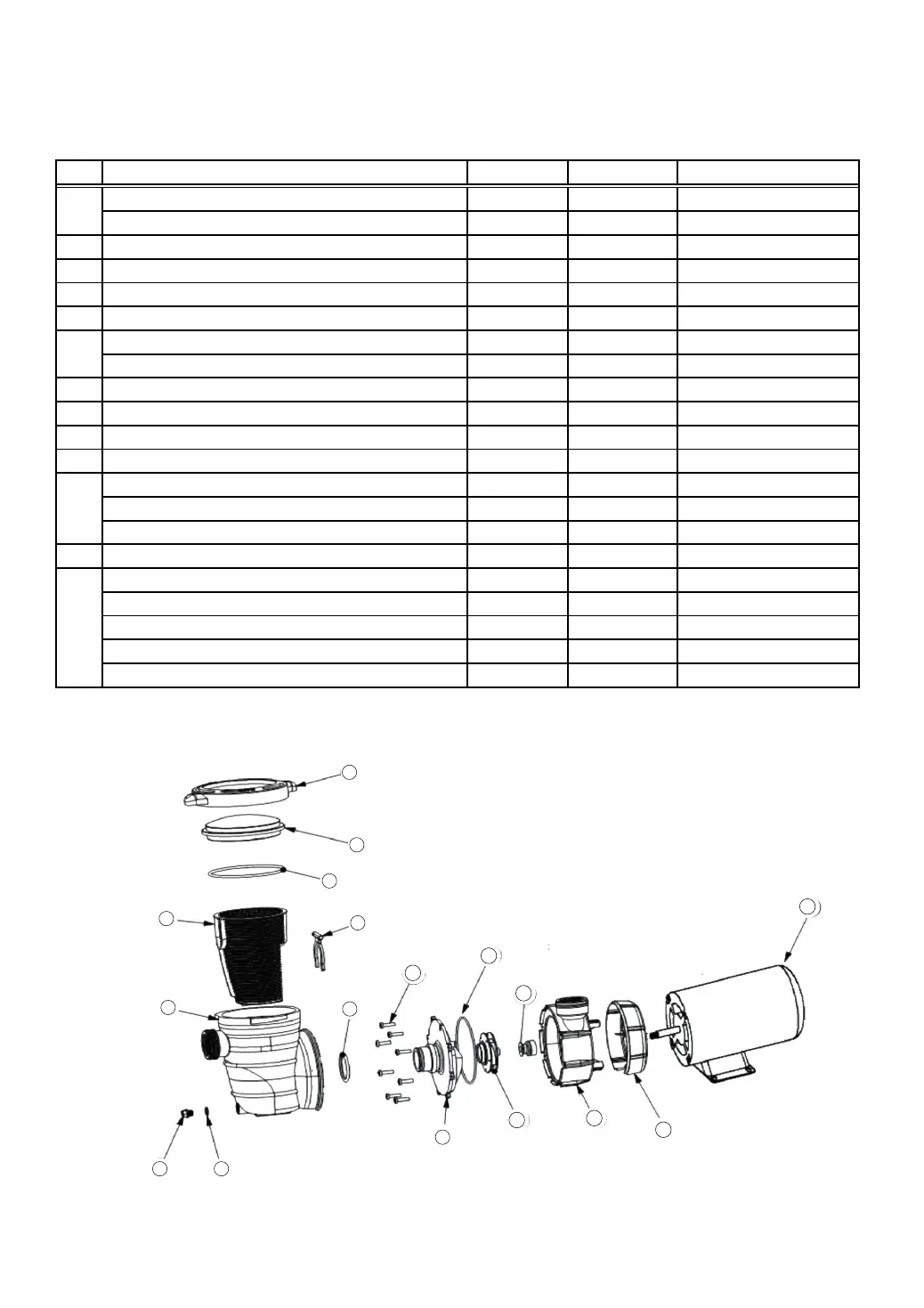

PARTS BREAKDOWN
Key Part Name Manf. No. B.W. No. For Model#
1
LID HTA001 NEP4185 All
TRANSPARENT COVER
HTA002
NEP4186
All
2
O-RING
HTA003
NEP4187
All
3
BASKET
HTA004
NEP4188
All
4
CLAMP
HTA005
NEP4189
All
5
STRAINER
HTA006
NEP4190
All
6
DRAIN PLUG
HTA007
NEP4191
All
DRAIN PLUG O-RING
HTA008
NEP4192
All
7
O-RING
HTA009
NEP4193
All
8
SCREW
HTA010
NEP4194
All
9
PUMP COVER
HTA011
NEP4195
All
10
O-RING
HTA012
NEP4196
All
11
IMPELLER OF ITEM#HTA 075/HTA2SP
075
HTA014
NEP4198
NE4513 & NE4515
IMPELLER OF ITEM#HTA 100/HTA2SP
100
HTA015
NEP4199
NE4514 & NE4516
IMPELLER OF ITEM#HTA 150
075
100
150/HTA2SP
150
HTA016
NEP4200
NEP4208
12
PUMP HOUSING
HTA017
NEP4201
All
MOTOR OF ITEM#HTA 075
HTA019
NEP4203
NE4513
MOTOR OF ITEM#HTA 100
HTA020
NEP4204
NE4514
MOTOR OF ITEM#HTA2SP 075
HTA022
NEP4206
NE4515
MOTOR OF ITEM#HTA2SP 100
HTA023
NEP4207
NE4516
MOTOR OF ITEM#HTA2SP 150
HTA024
NEP4208
NEP4208
