POOL ASSEMBLY INSTRUCTIONS (CONTINUED)
2
2
2
2

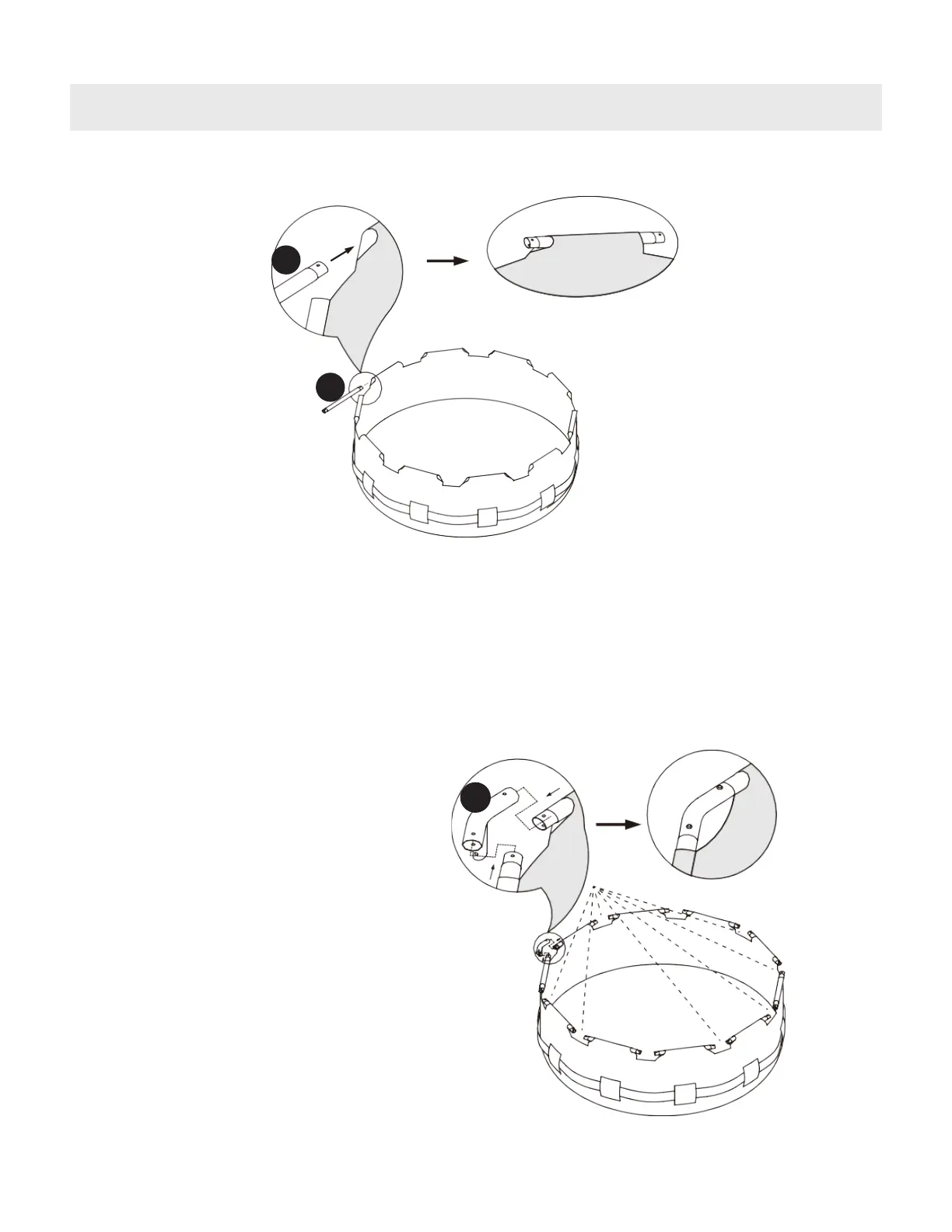

8. Carefully slide the Horizontal Beams (2) into the sleeves of the pool.
9. Connect the T-Fitting (4) to the Horizontal Beam (2).
IMPORTANT: The last T-Fitting (4) can be difcult to connect. Connect the rst side of the Horizontal Beam to
the T-Fitting. Then, angle the second side of the T-Fitting up slightly and begin to push the Horizontal Beam
into the T-Fitting. Finish sliding the Horizontal Beam into the T-Fitting and ensure it is secure.
4
TIP: A Philips screwdriver can be
helpful in aligning the holes.
Insert the pins through the
holes until they snap into place.
Continue until all Vertical Legs
are connected and pinned to
the T-Fittings.
