blueberry PLUS R2 Installation Manual 3.0 22
5.2. Foundation
The blueberry PLUS charging station shall be mounted in a solid ground, concrete
foundation/floor. The foundation shall be dimensioned according with the drill layout and

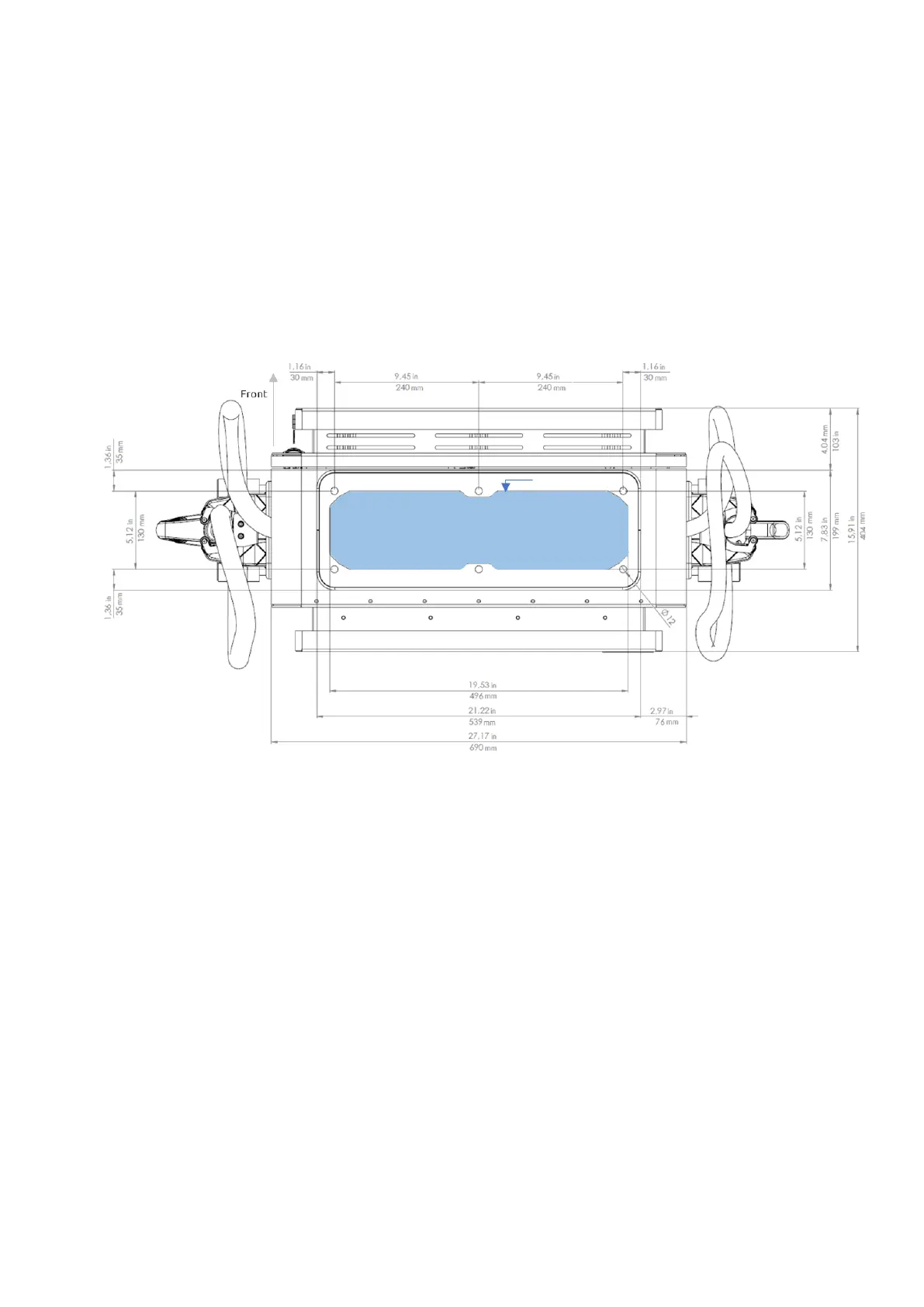

local standards. The drilling layout is presented below.
5.2.1. blueberry PLUS - User Unit
To fix the blueberry PLUS - User Unit, 6 x M8 chemical anchors shall be applied in the
concrete foundation, with a maximum outside length of 25mm (0.98in). Please be aware
that the cable shall be routed through the area, positioned on the center of the
equipment base.
To route the cable through the equipment cable glands, i-charging recommends a ground
mounting base with the dimensions of the blue area 100mm x 450mm (3.94in x 17.72in)
and 400mm (15.75in) deep.
Cable Entry
