Blueberry plus - Page 23

blueberry PLUS R2 Installation Manual 3.0 23

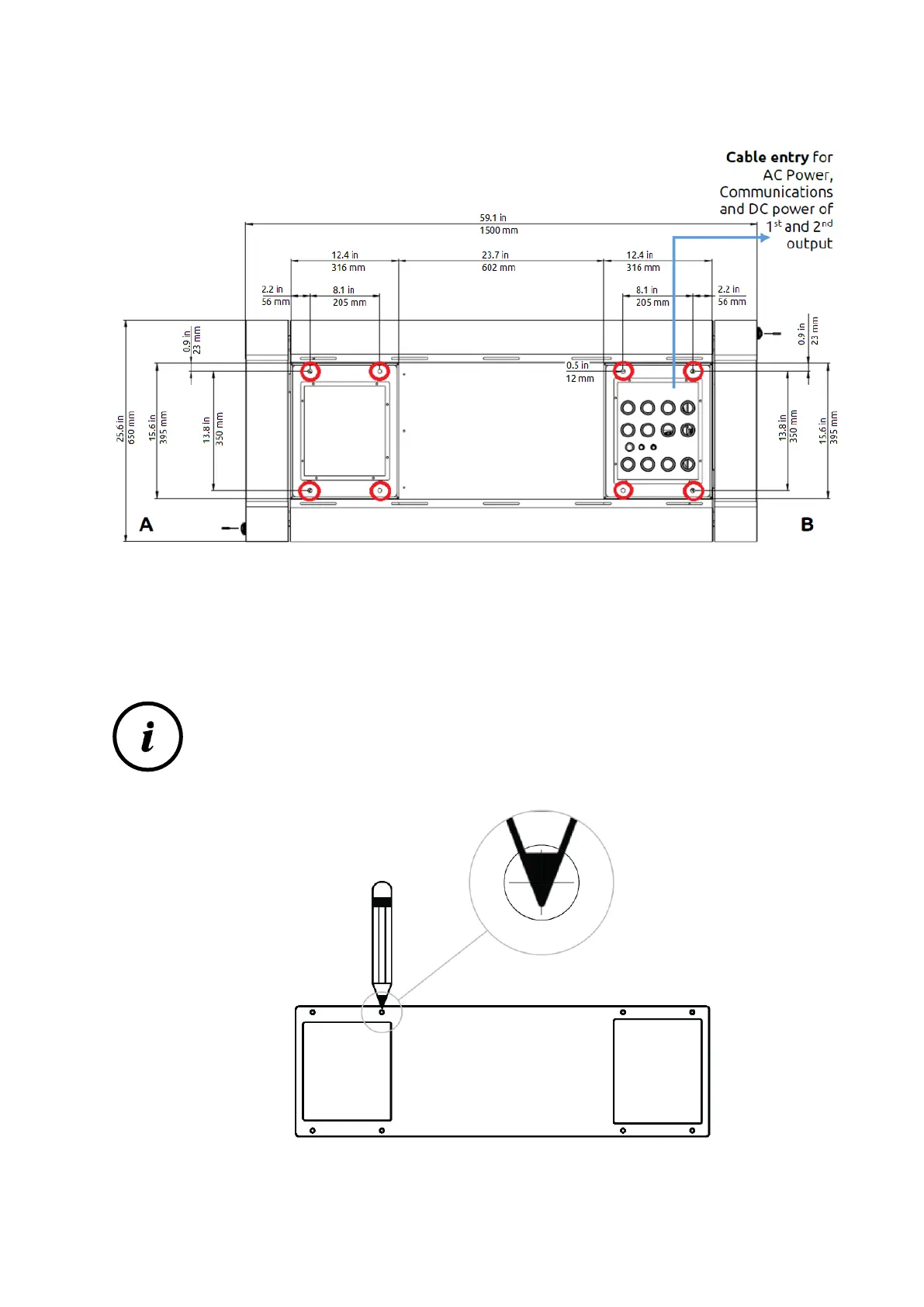

5.2.2. Power Unit
To fix the Power Unit, 8 x M12 chemical anchors shall be applied in the concrete foundation,
with a maximum length of 25mm (0.98in).
PLEASE NOTE!
i-charging can supply a metal drilling layout template to assist on making the holes in the
right position. Please contact our commercial department for more information on this
drilling template.
