blueberry PLUS R2 Installation Manual 3.0 28
DANGER!
Make sure that the main switch of the Switchboard power supply that feeds the
blueberry charger product is set to the off position.

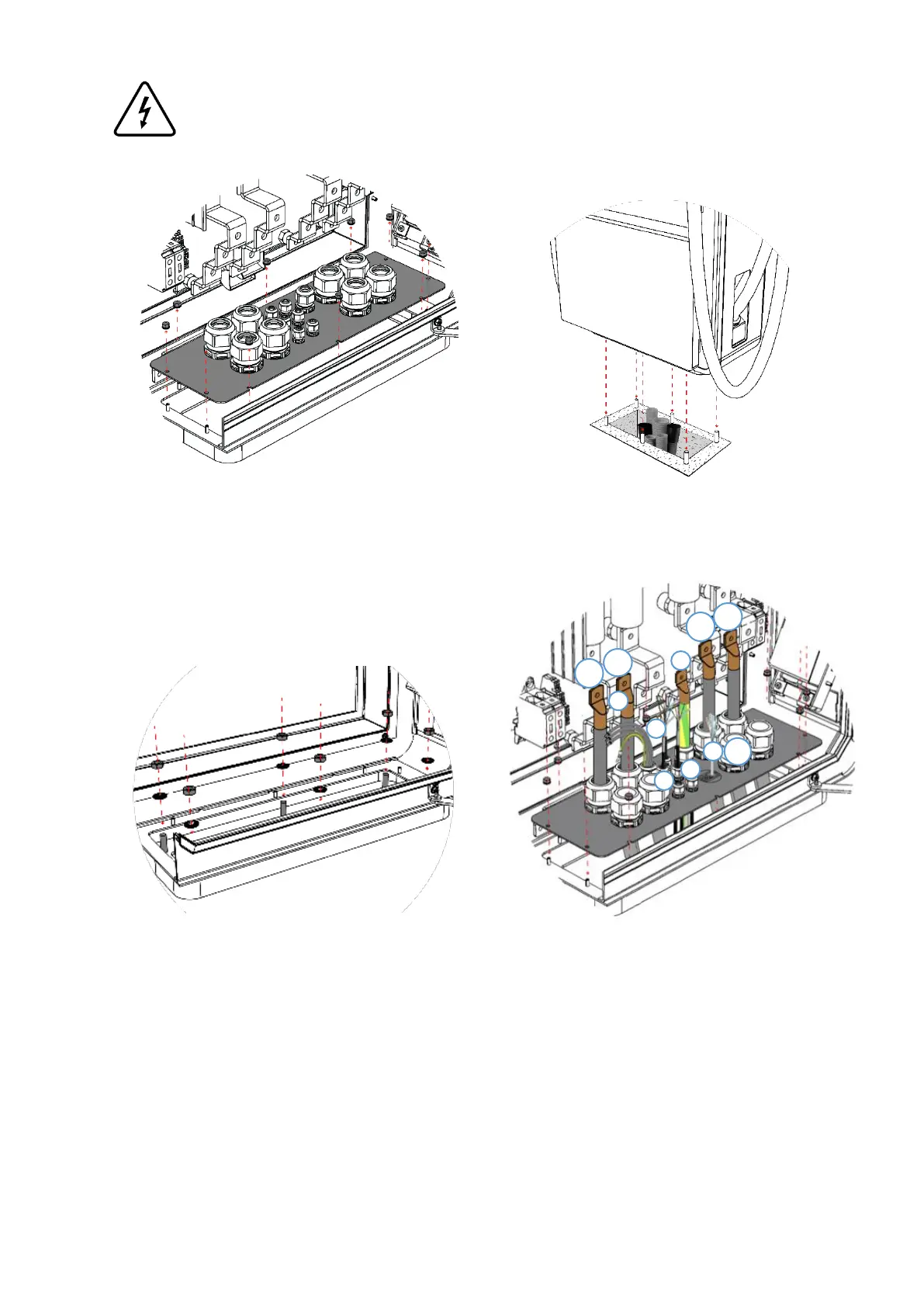

Step 1 – Remove the bottom plate from the
blueberry PLUS - User Unit. It is necessary to untight
10x M5 hexagon nuts with a ratchet wrench size 8.
Save the fasteners for tightening the DC cable glands
plate again after STEP 9.
Step 2 – Place the blueberry PLUS - User Unit on
the ground floor, matching the bottom holes
with the chemical anchors.
Step 3 – Place the matching washers and tight the
hexagonal nuts to fix the blueberry to the ground. Use
a ratchet wrench size 13.
Step 4 – Route the cables through the cable
glands and make sure that the cable number is
the correct one (Refer to Chapter 5.4 for
interconnections).
8
DC2+
8
DC2-
1
5
6
8
DC1-
8
DC1+
8
DC1+
2
12
17
