blueberry PLUS R2 Installation Manual 3.0 39
7.2. Start Up

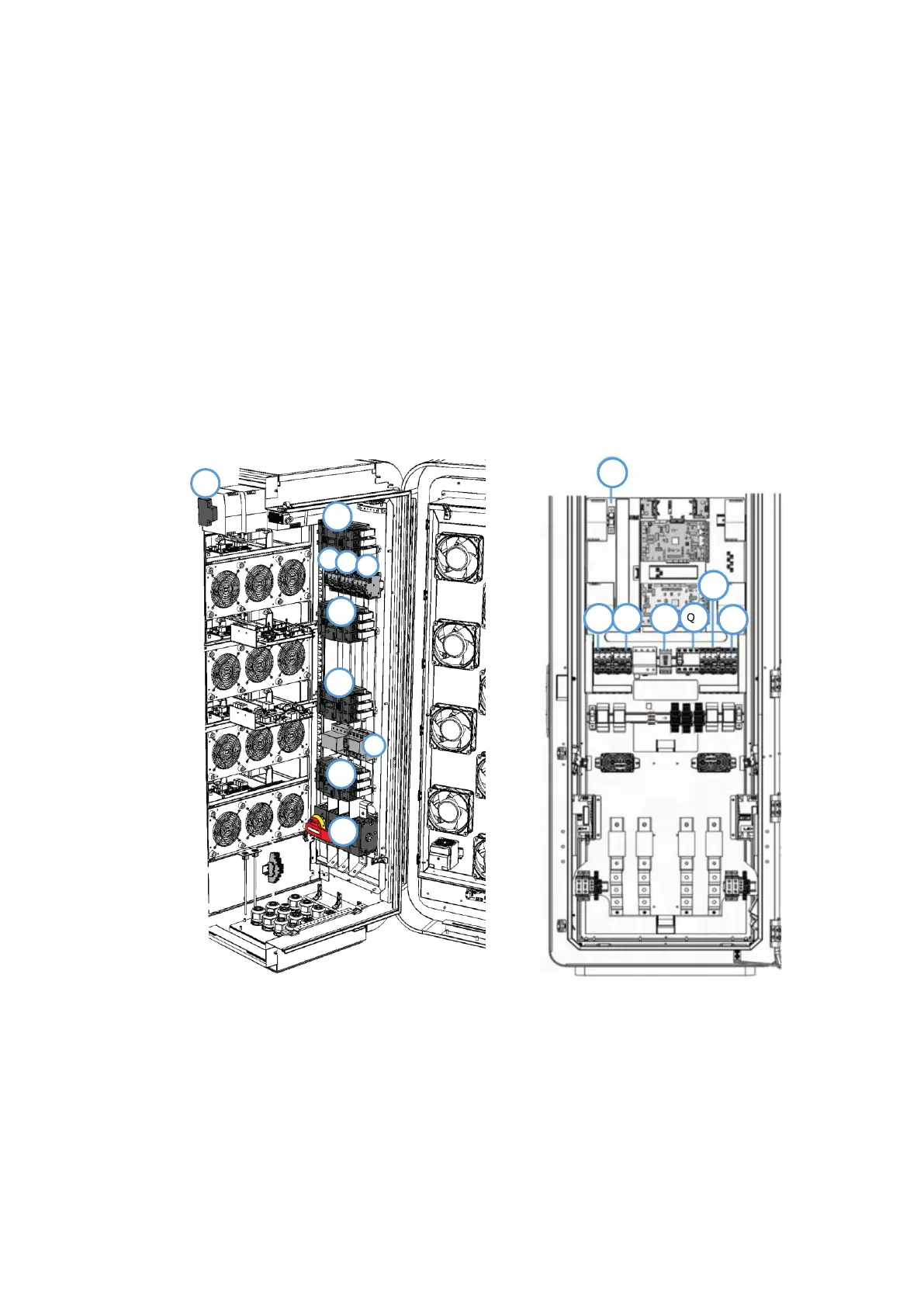

The start-up of the blueberry PLUS charging station shall begin by switching on the
circuit breakers Q1.A, Q1.B, Q1.C, Q1.D (power circuit - according to the number of
power modules), circuit breaker Q7 and the fuse F20 in the power Unit. In the
blueberry PLUS - User Unit, the circuit breakers Q4 (HMI), Q6 (cable retractor) and
the fuse F20 must also be switched on.
Please make sure that the switch disconnector S1, the residual current device Q2 and
the circuit breakers Q3, Q5 are already switched ON, as stated in chapter 6.
\
F20
\
Q1.D
\
Q1.C
\
Q1.B
\
Q1.A
\
S1
Q3
Q5
Q7
Q2
\
F20
\
Q3
\
Q4
\
Q5
\
Q6
\
Q2
\
S1
