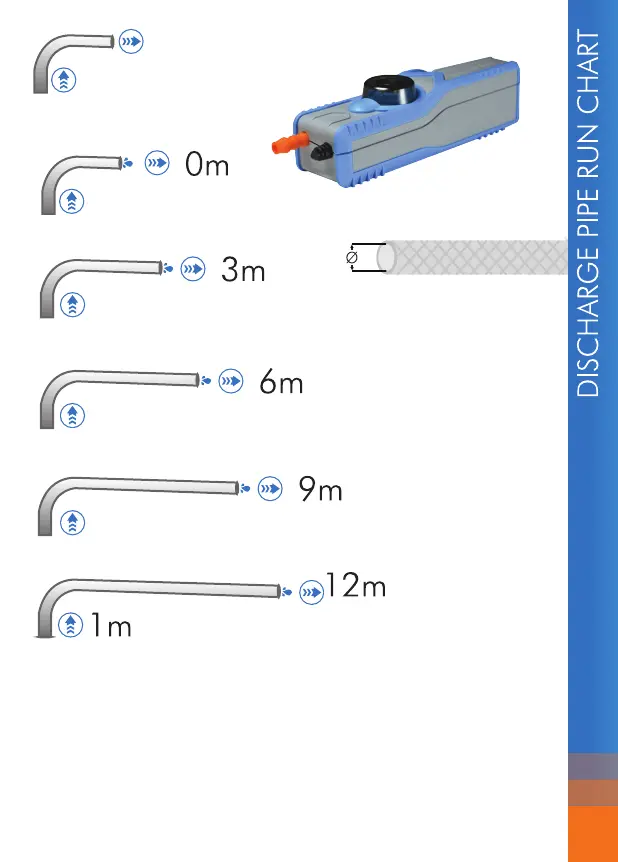

BlueDiamond Microblue - Discharge Pipe Run Chart

1/4” ID
TUBING SIZE
BRAIDED
27
2m
3m
4m
5m
• For each metre not used on vertical head you can run 3m on the horizontal.
• In addition the pump can be mounted up to 2 metres from the FCU (Fan Coil Unit).
• A heavy load on the pump will reduce the flow rate over greater distances.
• Performance is for guide only. It is the ultimate responsibility of the end user to ensure pump is fit for
purpose.
