bluefin Scout - Pump Disassembly Guide

PUMP
DIS A SSEMBL Y

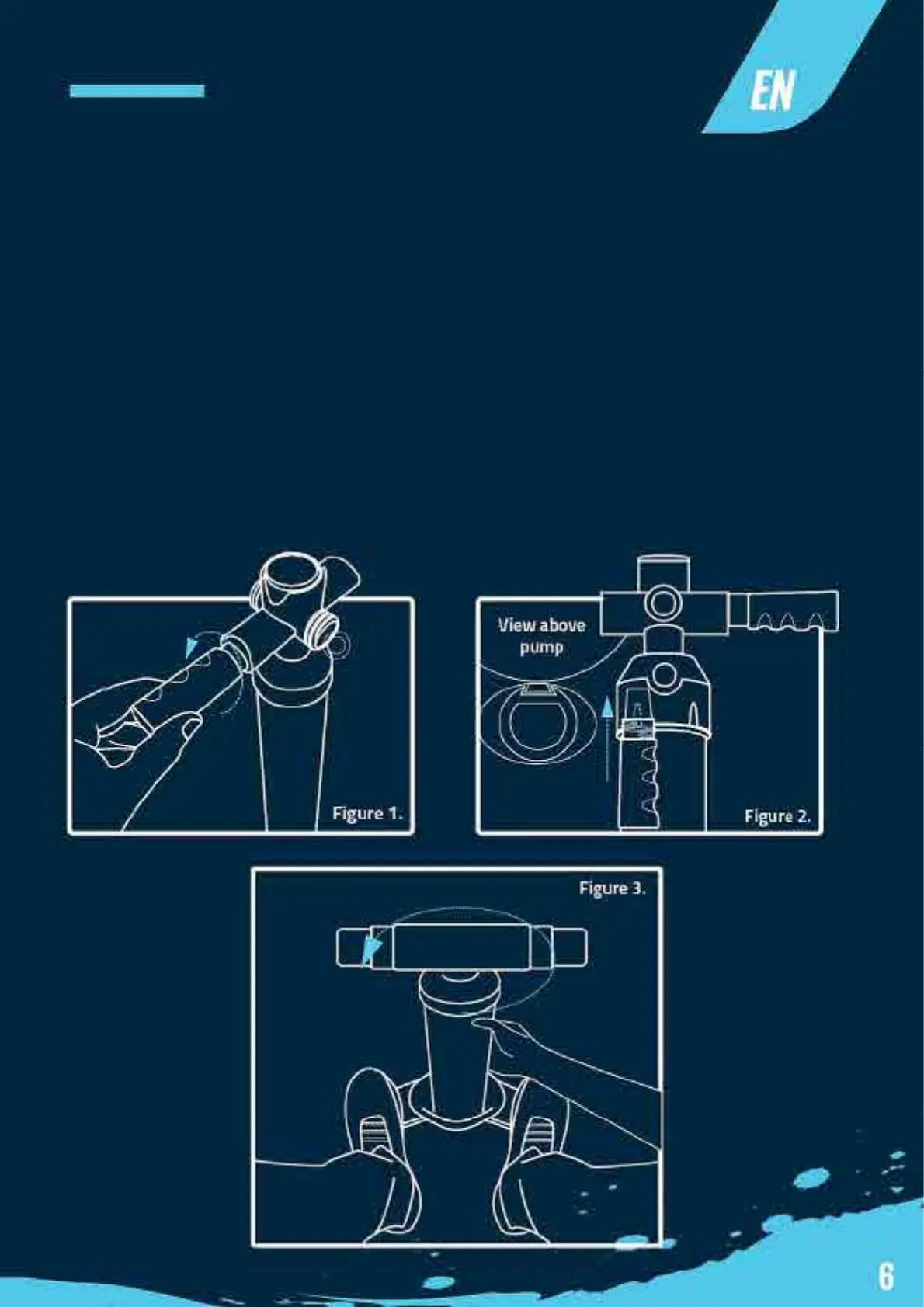

● To make the pump more compact, remove the pump handles by rotating counterclockwise. Figure 1
until fully detached and slide onto the two handle mounts. Figure 2
● To remove the footplate, stand on the base and twist the pump anti-clockwise using the centre shaft
on the pump. Figure 3
