Pin1
Pin2
Pin3
Pin4

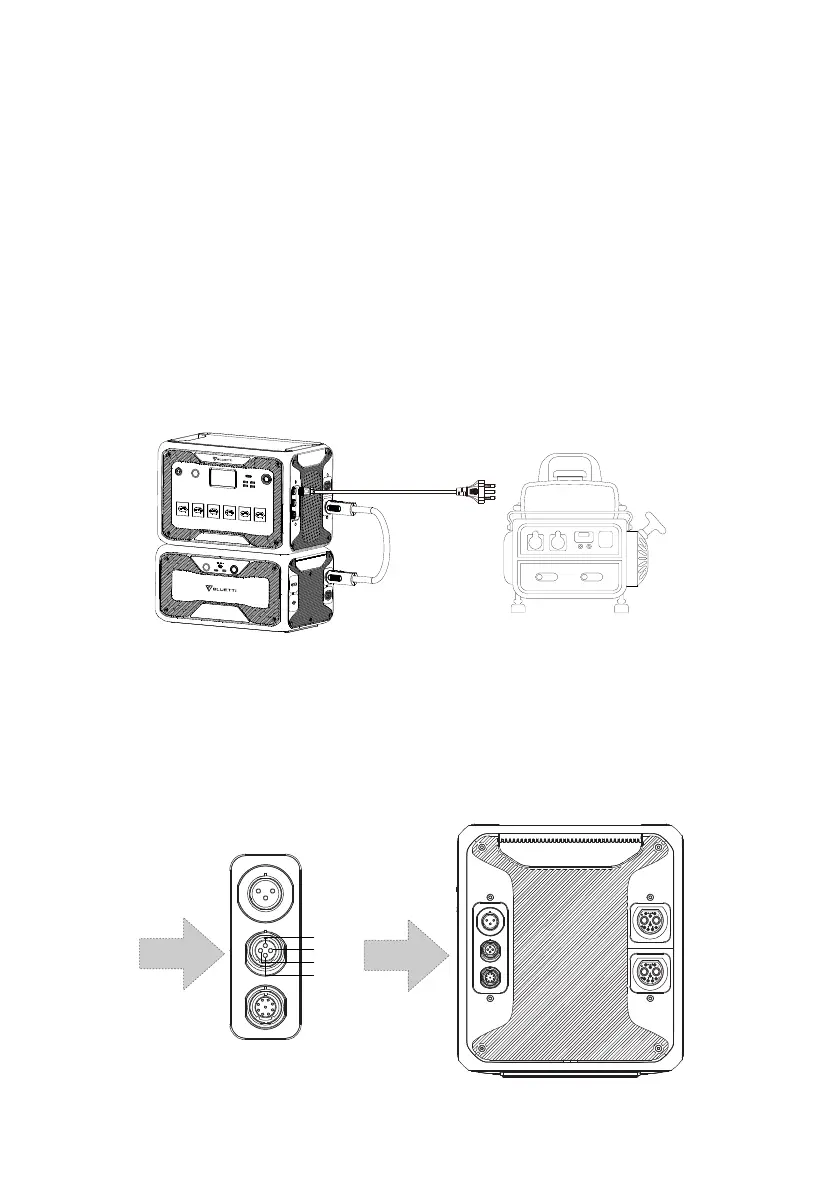

10.1.2 Charging Method 2: Generator Charging (Gasoline/Propane/Diesel)
•
Connect the AC300+B300 to a generator via the generator charging cable . The
charging automatically stops when the AC300 system reaches 100% capacity.
•
Note: It is recommended to use a generator with pure sine wave output, such as
inverter generator.
Please make sure your generator meets the following:
Voltage: 207-253VAC
Frequency: 47Hz-53Hz/57Hz-63Hz*
* If the AC input frequency of AC300 is set to 50Hz, use a generator with a frequency
of 47Hz-53Hz; if it is set to 60Hz, the generator frequency should be 57Hz-63Hz.
10.2 DC Input (2
nd
Charging Port: CP2)
Pin1: DC1 PV+
Pin2: DC2 PV+
Pin3: DC1 PV-
Pin4: DC2 PV-
27 JUST POWER ON
