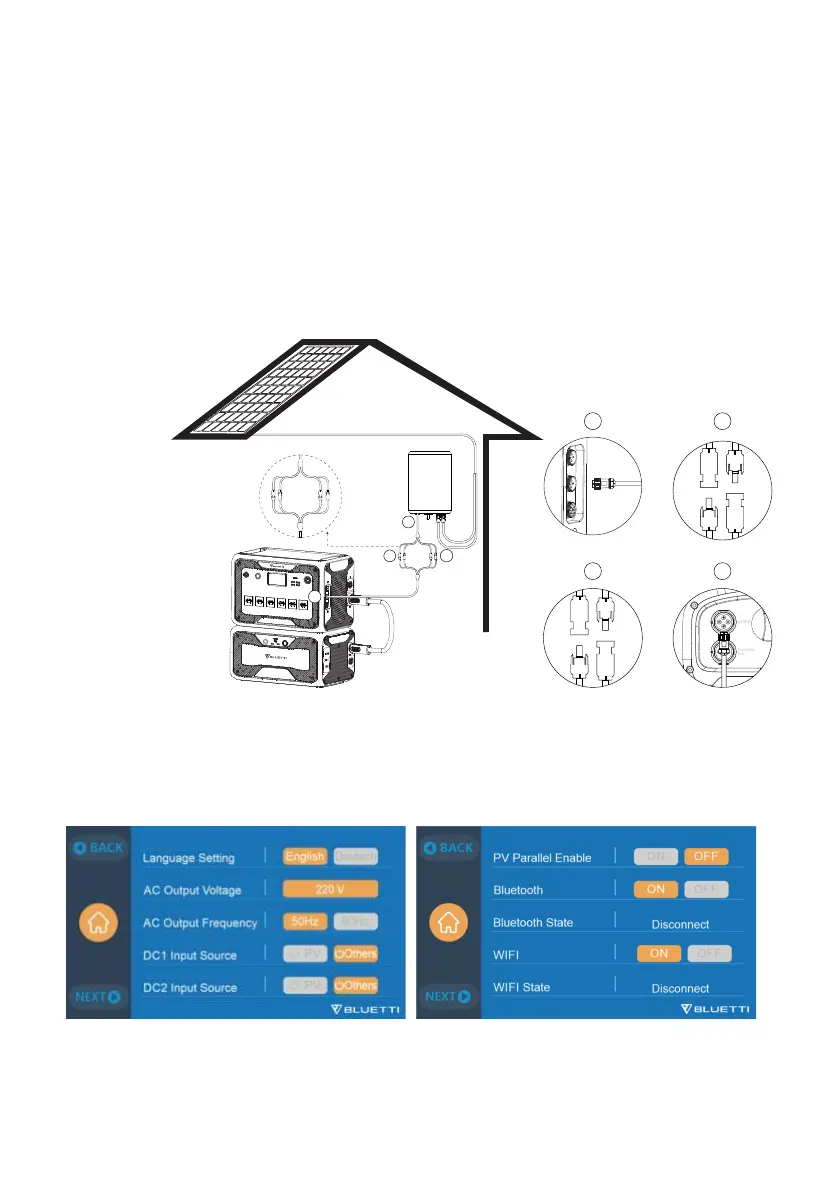

(Charging via rooftop solar)
a. DC output cable to AC300
b. DC1 plug to PV1
c. DC2 plug to PV2
d. DC output cable to D300S
Note: Roof/Rigid panel can charge AC300. If the panel's open circuit voltage falls in
150-550V, use D300S to lower the voltage.
•
How to connect AC300 to rooftop solar
i) 150V<Voc of PV<550V:
-
Connect to D300S
-
DC Input Source: Others
-
PV Parallel Enable: OFF
29
JUST POWER ON
