Charging

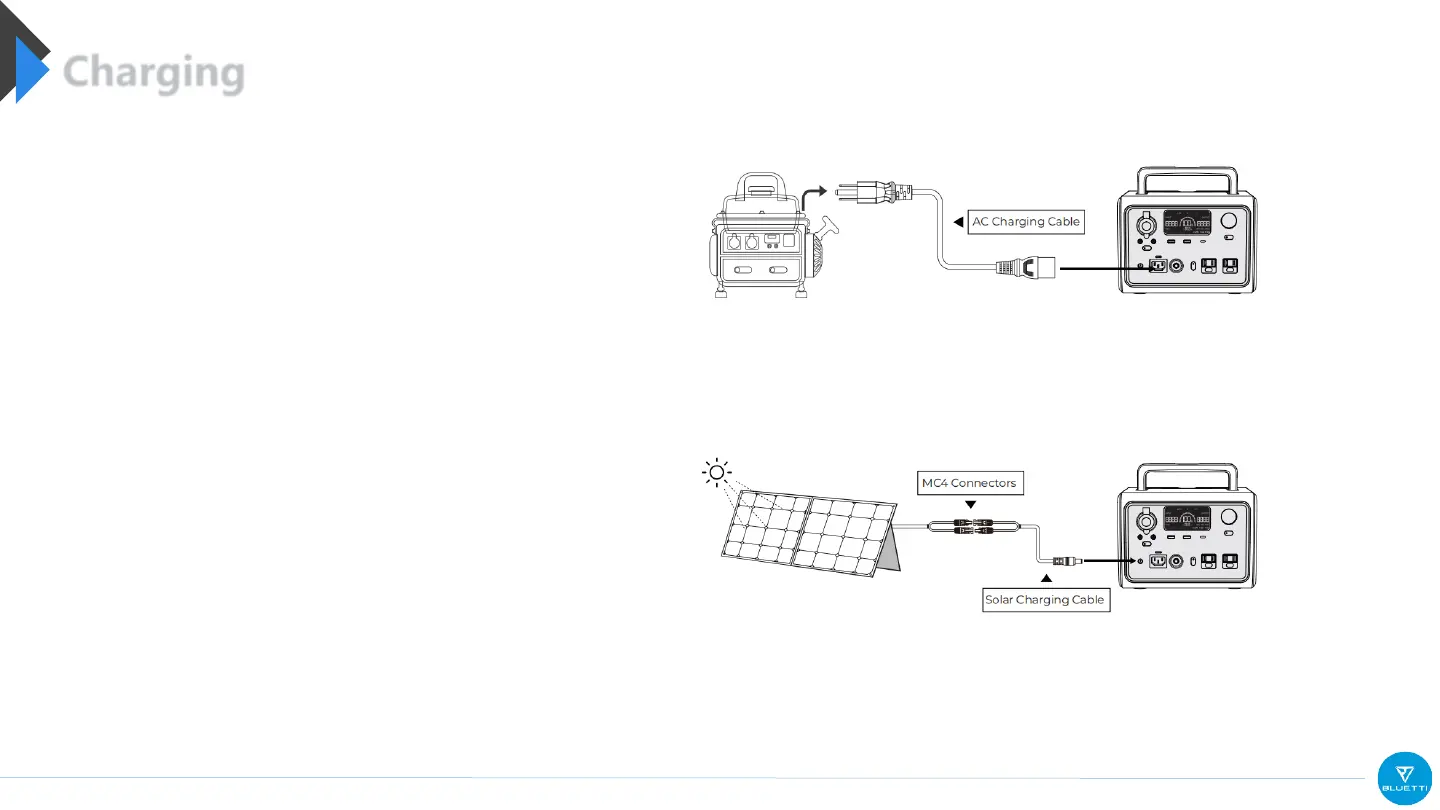

4. PV (Solar panel) Charging
C o n n e c t t h e s o l a r p a n e l s ( i n s e r i e s o r p a r a l l e l ) t o E B 7 0 v i a
t h e s o l a r c h a r g i n g c a b l e .
N o t e : P l e a s e m a k e s u r e y o u r s o l a r p a n e l s c o m p l y w i t h :
V oc: 1 2 - 2 8 V
I n p u t P o w e r : 2 0 0 W M a x
C u r r e n t : 8 . 5 A M a x .
E . g . U s e o n e B L U E T T I P V 2 0 0 s o l a r p a n e l t o c h a r g e t h e u n i t .
B L U E T T I P V 2 0 0 : V o c = 2 6 . 1 V V m p = 2 0 . 5 V C u r r e n t = 9 . 7 A M a x .
P V 2 0 0 S o l a r P a n e l ( 2 0 0 W ) = 2 h r s
P V I 2 0 S o l a r P a n e l ( 1 2 0 W ) = 3 h r s
3. Generator Charging
C o n n e c t t h e AC a d a p t e r i n p u t p l u g t o t h e g e n e r a t o r
w h i l e t h e o u t p u t p l u g g o e s t o t h e a d a p t e r c h a r g i n g
p o r t o f E B 70.
T u r b o C h a r g i n g M o d e ( 3 5 0 W ) = 1 . 3 h r s
S t a n d a r d M o d e ( 2 6 8 W ) = 1 . 5 h r s
