23 | P a g e

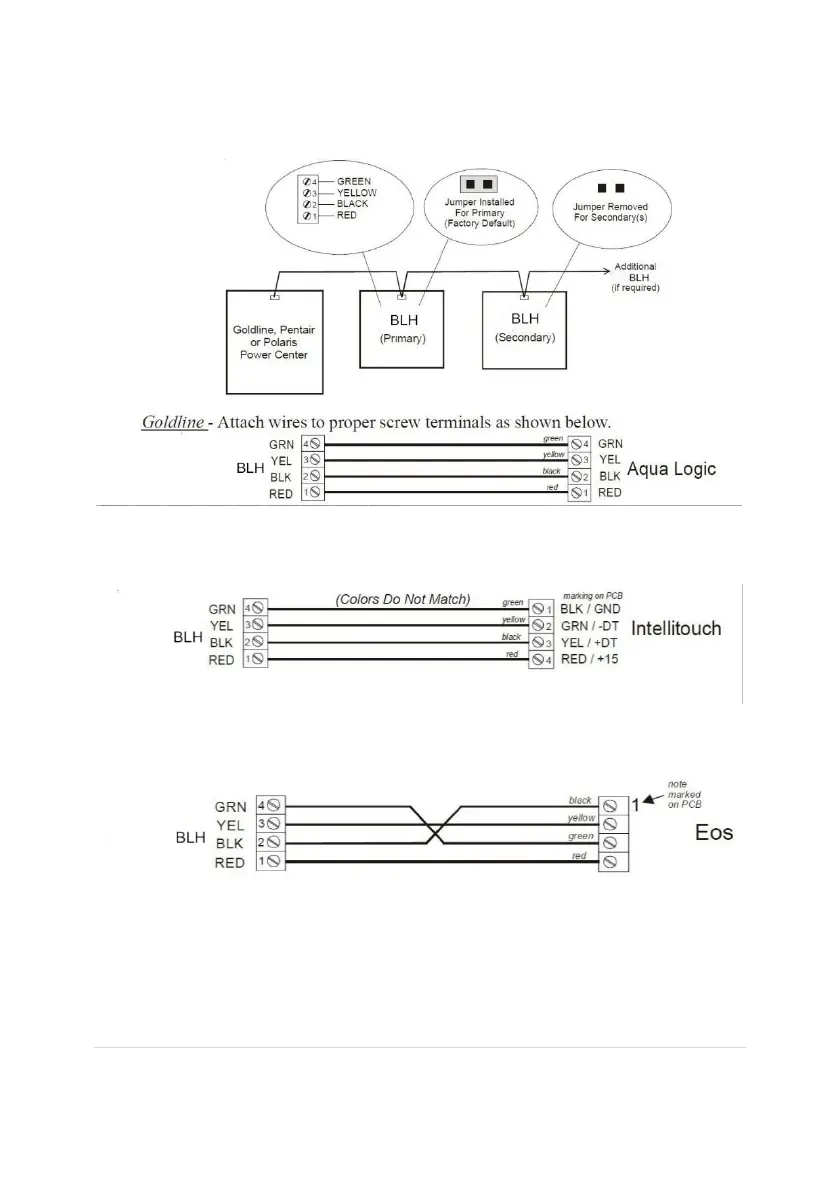

Pentair: Attach wires to opposite numbered screw terminals as shown below. Note that the
colors marked on the Pentair PCB do not match the BLH.
Polaris: Attach wires to proper screw terminals as shown below. Note that the screw terminal
“1” is marked on the Polaris PCB.
