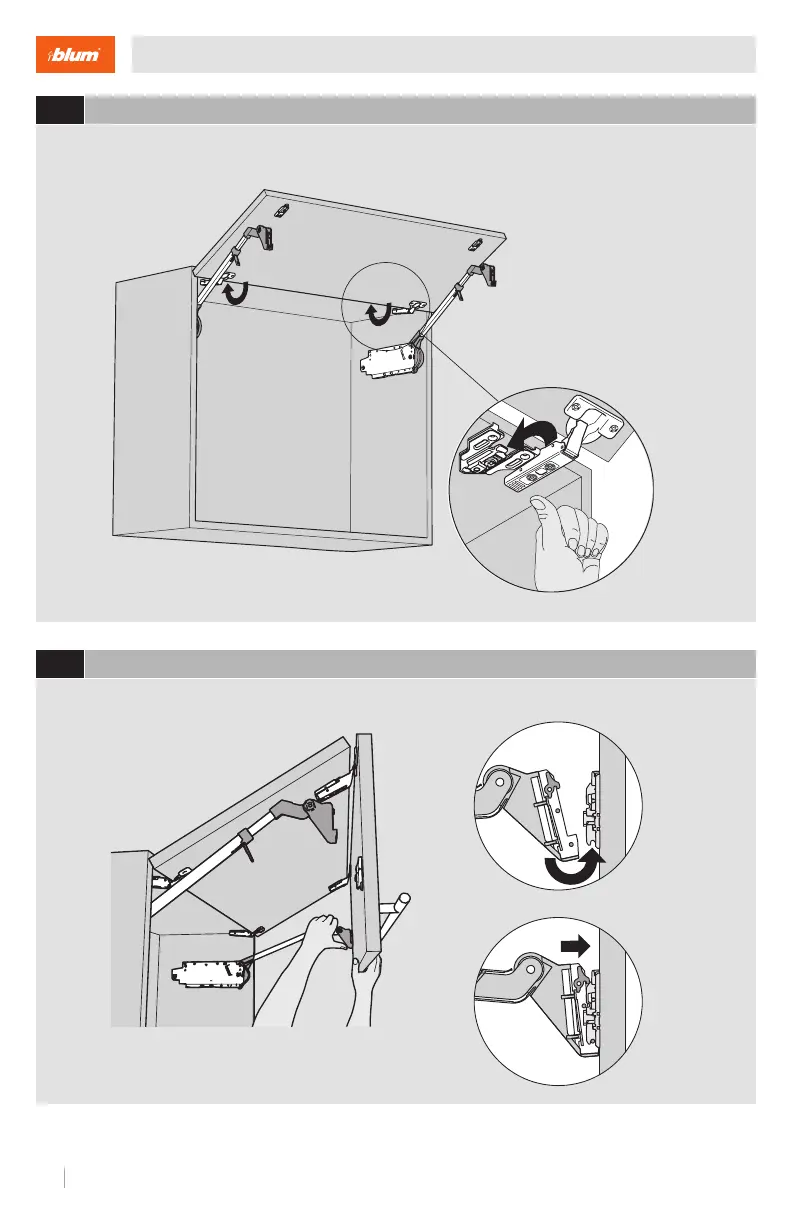

AVENTOS HF

Subject to technical modiﬁcations without notice. © 2018

1

Telescopic arm set

▀ Telescopic arm (qty 2)

Cabinet heights Part no.

479 (18-7/8") — 558 (22")

20F3200.01

558 (22") — 686 (27")

20F3500.01

686 (27") — 889 (35")

20F3800.01

889 (35") — 1067 (42")

20F3900.01

Cover set

▀ Right and left cover plate

▀ Non-handed cover cap (qty 2)

Part no.

Cover set

20F8000.NA

Lift mechanism set

▀ Lift mechanism (qty 2)

▀ #7 x 35 mm (1-3/8”) wood screw (qty 8)

Power factor Part no.

85 — 230 (1 lift mechanism req.)

20F2200.N5

231 — 470

20F2200.N5

471 — 880

20F2500.N5

780 — 1440

20F2800.N5

1401 — 2300 (3 lift mechanisms req.)

20F2800.N5

Wood or wide alum door hardware set

▀ CLIP top 120° hinge (qty 2)

▀ COMPACT 33° hinge (qty 2)

▀ CLIP top bottom door hinge (qty 2)

▀ COMPACT mounting plate (qty 2)

▀ Face frame adapter (qty 4)

▀ Telescopic arm mounting plate (qty 2)

NOTE: Three hinges and mounting plates required

for cabinet widths over 1219 (48")

Hardware set

78Z5530TA8

Inst. screw for wood doors

606N or 606P

Inst. screw for wide alum doors

7072A

Mounting plate with bracket set

▀ Left and right mounting plate with bracket

▀ For large overlay ﬁve-piece doors

Part no.

Mounting plate w/ bracket set

175H3F00

Wood/wide aluminum

frame door application

Part no.
