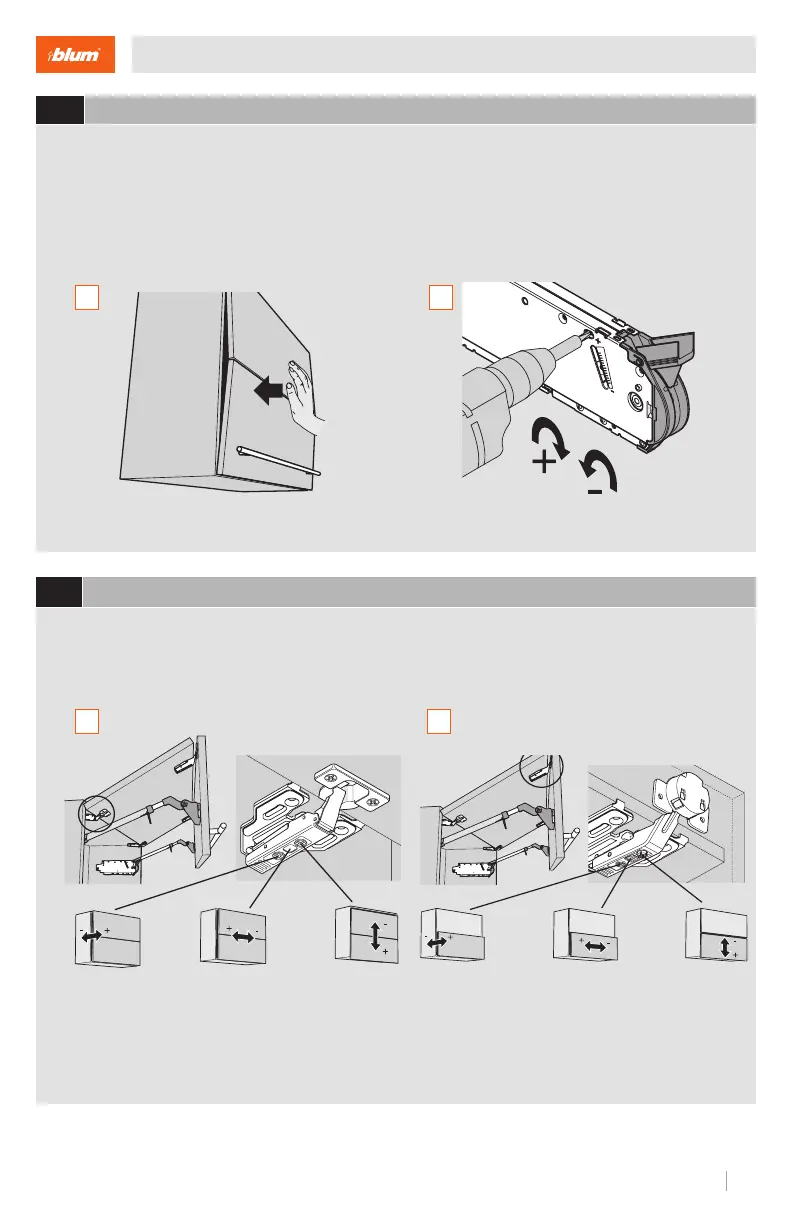

Finalize the tension adjustments
11
Finalizing the door adjustments
1. Adjust each top door hinge and
mounting plate to properly align the top
door to the cabinet.
2. Adjust each bottom door hinge and
mounting plate to properly align doors to
the cabinet and to the top door.
NOTE: Although not illustrated here, telescopic arm mounting plates can also be adjusted
horizontally ± 2 mm if needed.
1 2
± 2 mm ± 2 mm± 2.5 mm± 2 mm± 3 mm + 3/- 2 mm
Assembly
1 2
1. Close and flush d oors to cabinet. Open
an d close door t o test closing force.
2. Open door and adjust tension screws on
both lift mechanisms with a power drill. Tes t
door ag ain and repeat until desired function
is achieved.
Tension a djustment should be the same on both lift mechanis ms.
