BLUM IC56

Systemoverview
©byBlum‐Novotest
7
V2A|04/2018

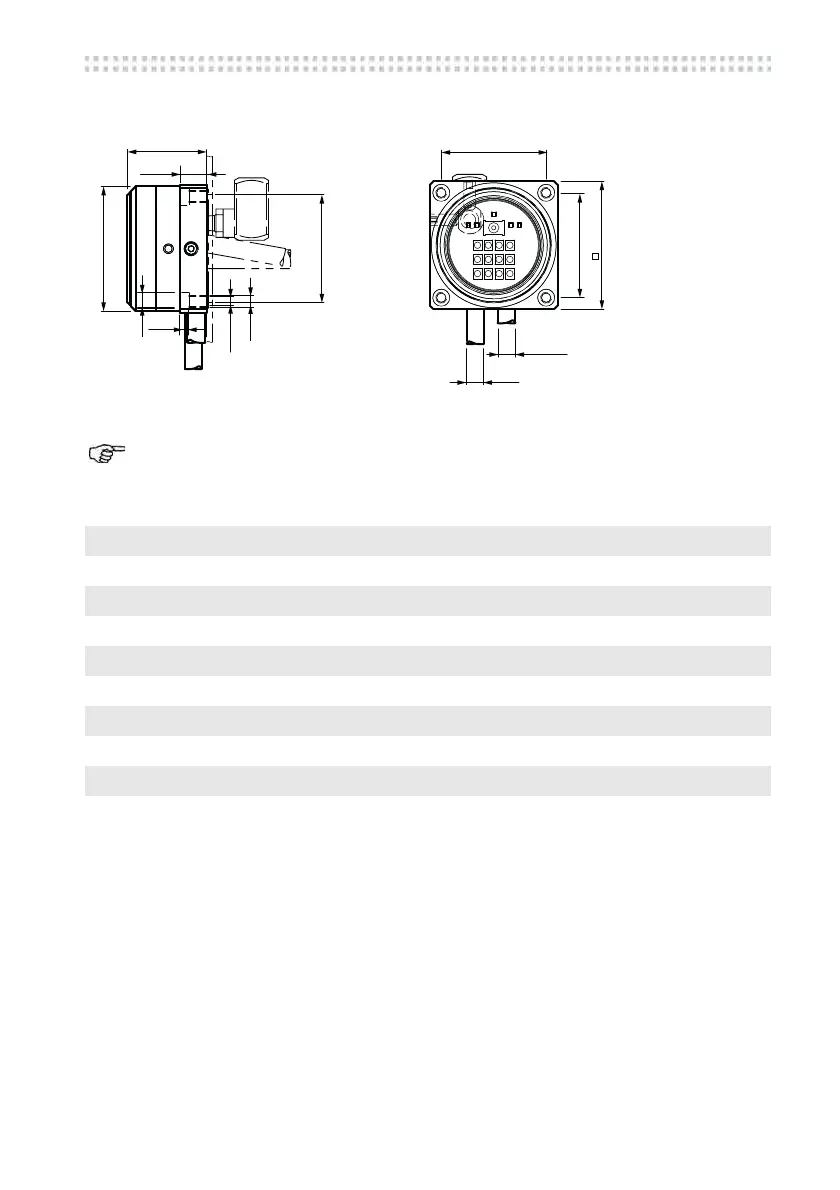

2.3 Dimensions
Fig.2‐2
2.4 Technicaldata
Tab.2‐2
30
37
Ø 44
45
37
Ø 6,3
Ø 6
9,5
3,2
Ø6
Ø3,3
M4
a)
a)
Wallbushing:Ø20mm...Ø38mm
Protectionclass IP68
Powersupply 12 V DC / 100 mAviaIF59
Airnozzle Integrated,max.6bar(0.6MPa)
Signaltransmission Infrared
Min.bendingradiuscable 60 mm(application:flexible)
Max.cablelength 50 m
Mass 700 g
Storagetemperature ‐20 °C ... +70 °C
Operatingtemperature +5 °C ... +50 °C
