11

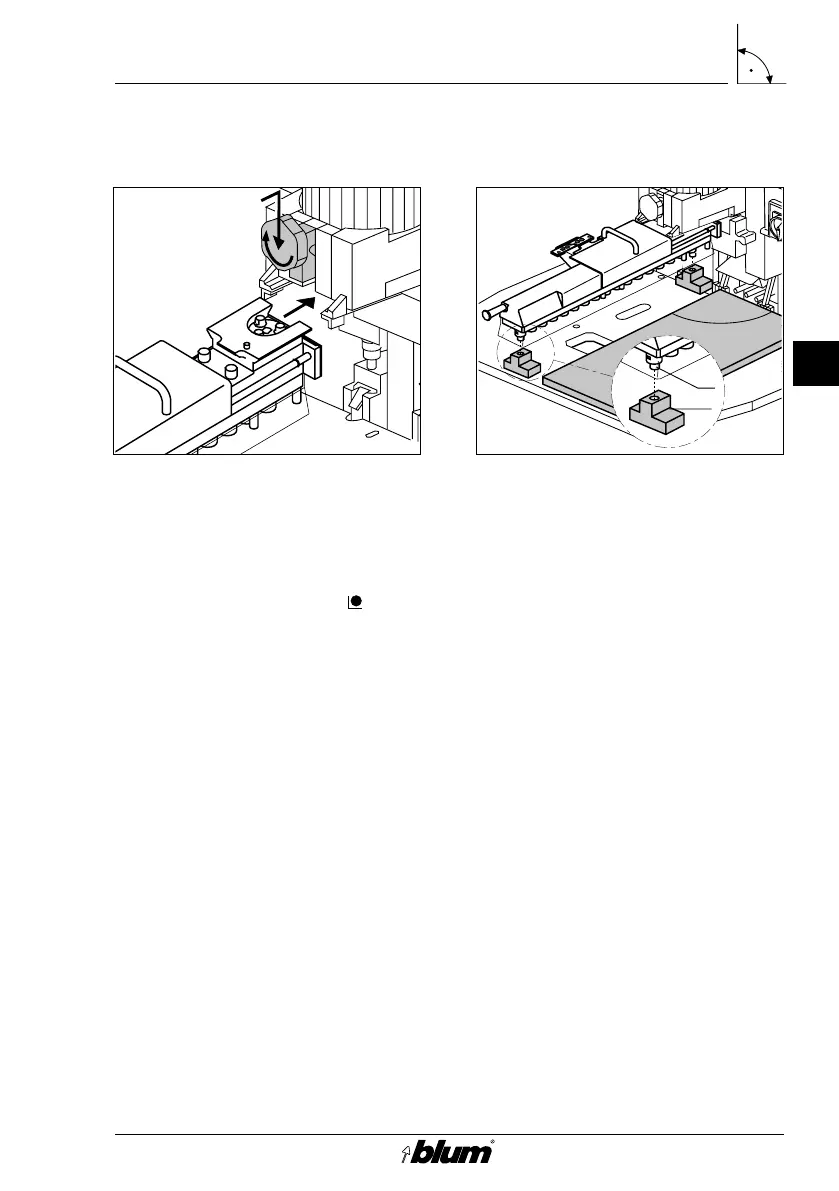

2. Mounting drilling head onto ma-
chine
• Set main switch to position I
• Set preselector to position
(set-up)
• Mount standard ruler
• Slide drilling head along the guide
until it rests against the stop
• Move clamping device downwards
then turn clamping knob and tighten
until the control lamp for vertical
drilling stops blinking
3. Mounting adjustment aids
• Set the worktable to a drilling distance
of approx. 40 mm according to the
scale
• Set drilling depth to 16 mm
• Set the preselector to "Vertical drilling
and hinge insertion"
• Attach adjusting blocks (E7) to ad-
justing pins (E6)
• Prepare a right-angled piece of
pressboard measuring approx. 600
x 600 x 16 (19) mm
Adjusting MZK.2880 to ruler
E
