SERVO-DRIVE uno
Instruction leaet
The following parameters must be observed to ensure the error-free functioning of SERVO-DRIVE:
• Blum distance bumpers must be attached
to the front to ensure the required trigge-
ring signal (2 mm) between the pull-out
unit and the cabinet.
• No items can be clamped between the
pull-out unit and the cabinet back and/or
SERVO-DRIVE.

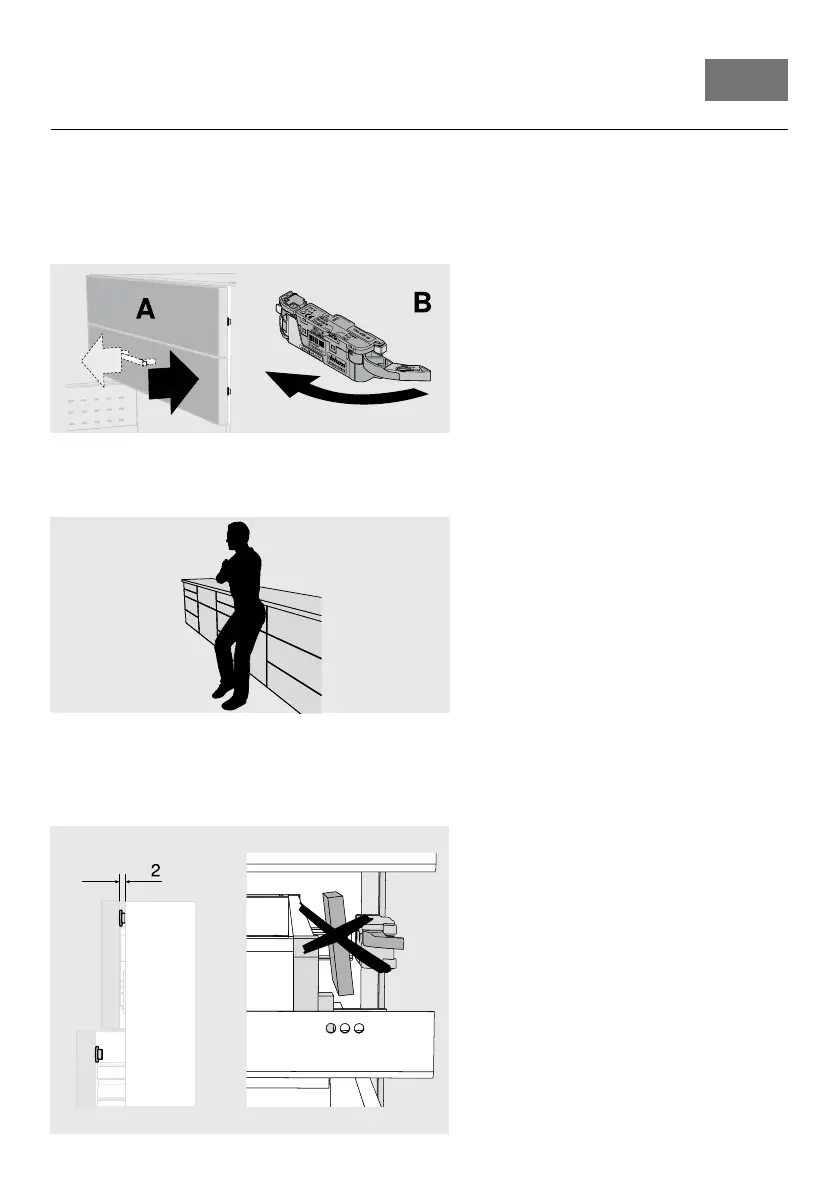

Electrical motion support system
When the front and/or handle of the drawer
(A) is pulled or pressed, the eject lever
of the drive unit (B) swivels forward and
opens the drawer a short distance.
The electrical opening support function
is only triggered by a brief touch or pull.
Leaning on the drawer, for example, will not
open it.
Leaning protection

BLUM SERVO-DRIVE uno Specifications

General

Brand	BLUM
Model	SERVO-DRIVE uno
Category	Door Opening System
Language	English
