20
Filtration (optional)

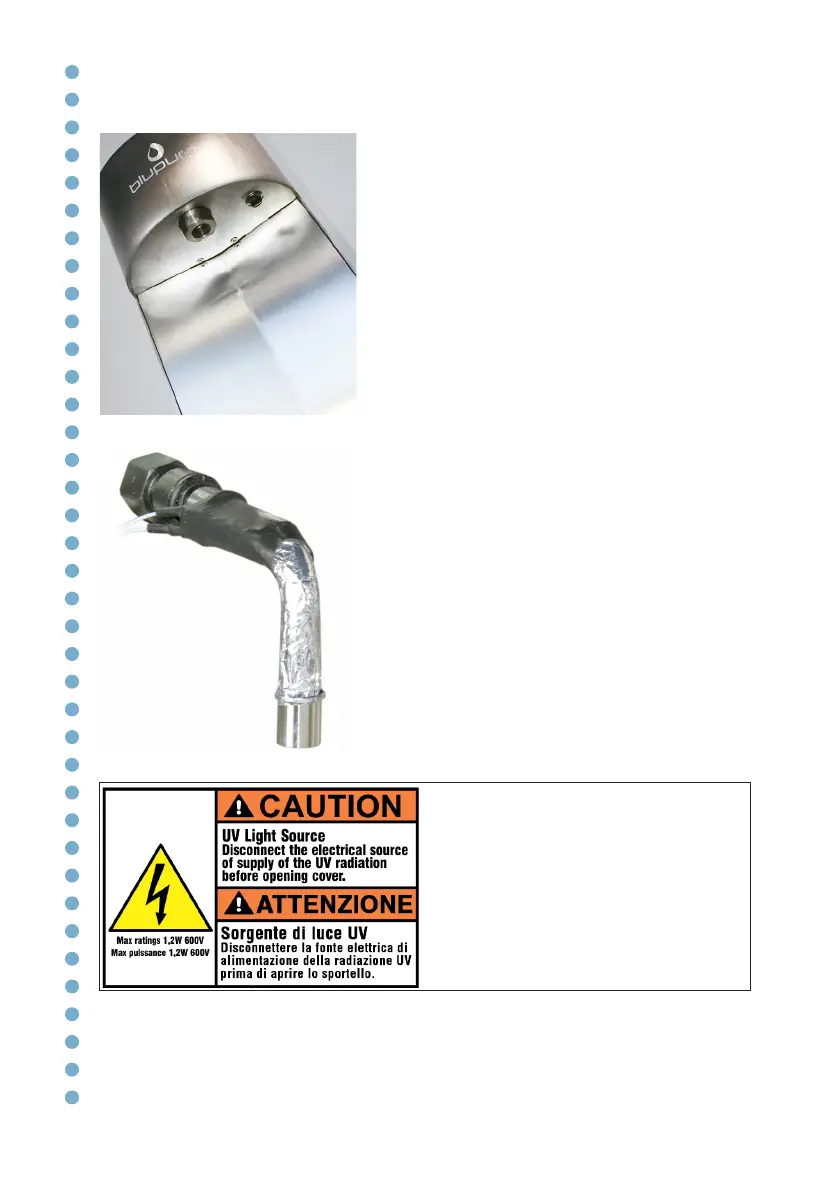

Sterilizing UV filter
The supply head is fitted with a BLUPURA
UVC OUT QUARTZ 4W FM 150193 (λ=254
nm) sterilizing filter at the exit point to avoid
backflow contamination.
The UV-C light emitted by the special
4W mercury vapour lamp is lethal for
all microorganisms (bacteria, viruses,
mould, algae, etc.); for this reason, water
treated with the UV-C sterilizer will be
microbiologically pure.
TECHNICAL PROFILE
Material AISI 304 and quartz tube
Power rating 24vac
Power consumption 4Wh
Maximum capacity: 8000 h
The UV sterilizer is made entirely in Italy
and complies with Italian, European and US
quality and safety guidelines.
The light emitted by the ultra-violet
lamp may cause serious burns to the
eyes and skin.
Do not remove it from its stainless-
steel container. The replacement
can only be performed by qualified
personnel.
