Connection to the water cooler
This unit must be connected to an under-
sink cooler. Refer to the relevant manual
for the purchased model. Do not connect
this unit directly to the mains water
supply.
Connect the incoming water pipes of the
unit (1, ext. diameter 8 mm) to the water
cooler. Connect the waste pipe (2) to a
waste water manifold.
Make sure that the connecting pipes
between the cooler and the Wall
are adequately insulated to prevent
condensation.
On the “Fizz” models with sparkling
water, you can adjust the output stream
with the screw on the compensator (3).
Turn the screw clockwise to decrease the
flow or counterclockwise to increase it.
Once the pipes are attached, turn on the
tap. Ensure there are no leaks.
Attention!
To connect the water cooler to the mains
water supply, you will need to use a new
set of connectors (joints, gaskets and
pipes).
Do not use a set of connectors that has
already been used elsewhere.
The water pressure entering the unit must
be between a minimum of 1,0 bar (0.10
MPa) and a maximum of 3,5 bar (0.35
MPa).

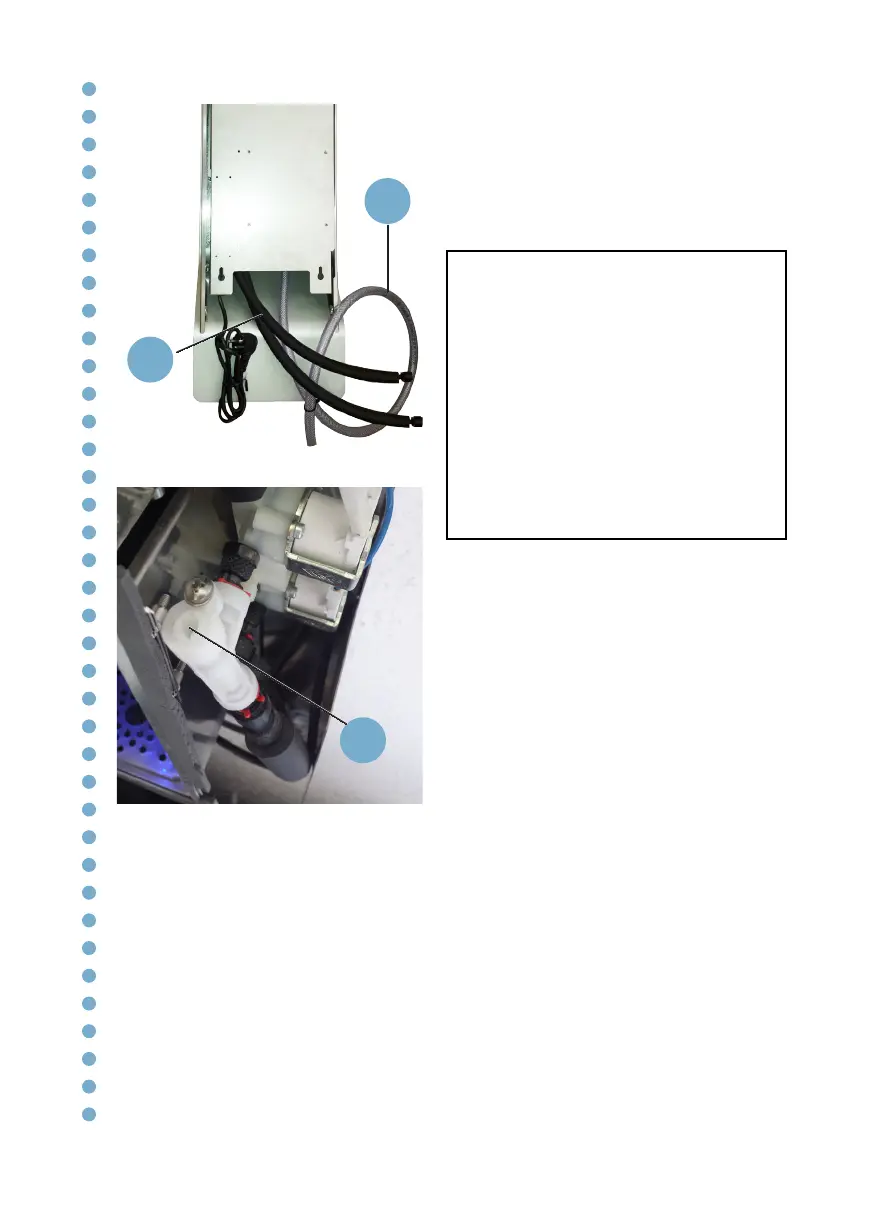

Fig. 18.1
1
2
Fig. 18.2
3
