C44-KIT USER MANUAL
www.blustream.com.au | www.blustream-us.com | www.blustream.co.uk 10
EDID (Extended Display Identification Data) is a data structure that is used between a display and a source. This
data is used by the source to find out what audio and video resolutions are supported by the display then from this
information the source will discover what the best audio and video resolutions need to be outputted.
While the objective of EDID is to make connecting a digital display to a source a simple plug and play procedure issues
do arise when multiple displays or video matrix switching is introduced because of the increased number of variables.
By pre-determining the video resolution and audio format of the source and display device you can reduce the time
need for EDID hand shaking thus making switching quicker and more reliable.
Configuration of matrix EDID settings can be achieved in one of the following ways:
1 Using the EDID dip-switches located on the rear of the Matrix
2 Using the Supplied Blustream Matrix IR Remote Control
3 Using the C44 Web browser interface (For further details see ‘Blustream Web GUI Manual’)

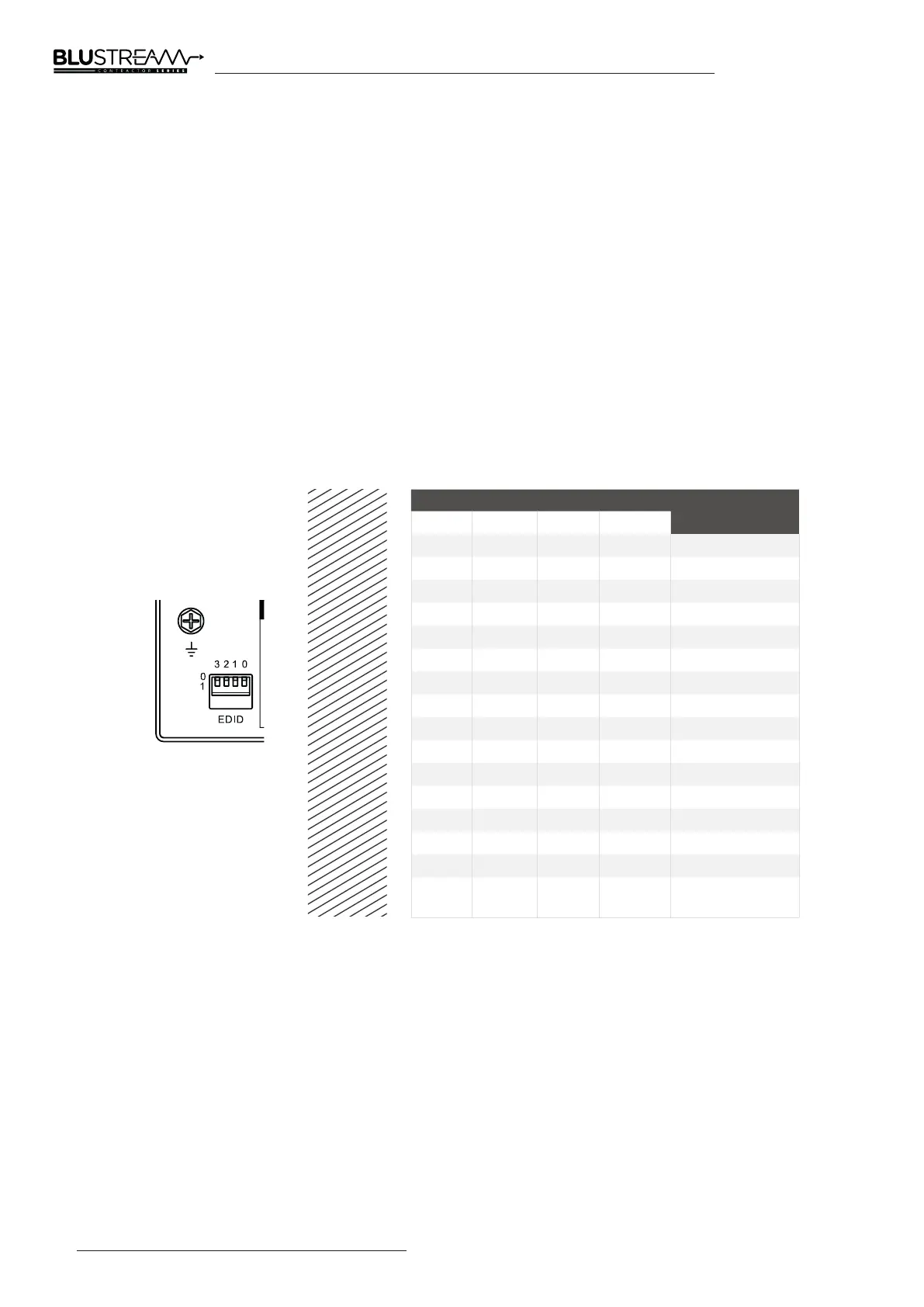

EDID Control
DIP ON ▼/OFF▲ SWITCHING POSITIONS
EDID TYPE
3 2 1 0
OFF OFF OFF OFF 1080p/2.0ch
OFF OFF OFF ON 1080p/5.1ch
OFF OFF ON OFF 1080p/7.1ch
OFF OFF ON ON 1080i/2.0ch
OFF ON OFF OFF 1080i/5.1ch
OFF ON OFF ON 1080i/7.1ch
OFF ON ON OFF 4K60Hz 4:2:0/2.0ch
OFF ON ON ON 4K60Hz 4:2:0/5.1ch
ON OFF OFF OFF 4K60Hz 4:2:0/7.1ch
ON OFF OFF ON 4K30Hz 4:4:4/2.0ch
ON OFF ON OFF 4K30Hz 4:4:4/5.1ch
ON OFF ON ON 4K30Hz 4:4:4/7.1ch
ON ON OFF OFF DVI 1280x1024
ON ON OFF ON DVI 1920x1080
ON ON ON OFF DVI 1920x1200
ON ON ON ON Soware Controlled
EDID
To manage EDID using the App or Web GUI, it is necessary to select the appropriate DIP switch selection on the matrix.
Until the matrix EDID DIP switches have been assigned to 'Soware Controlled EDID', the option to select individual
EDID's per input will remain greyed out within the soware.
Global EDID Settings
Dip-switch Position ‘0’ = O
Dip-switch Position ‘1’ = On
