C44-KIT USER MANUAL
Contact: support@blustream.com.au | support@blustream-us.com | support@blustream.co.uk
09

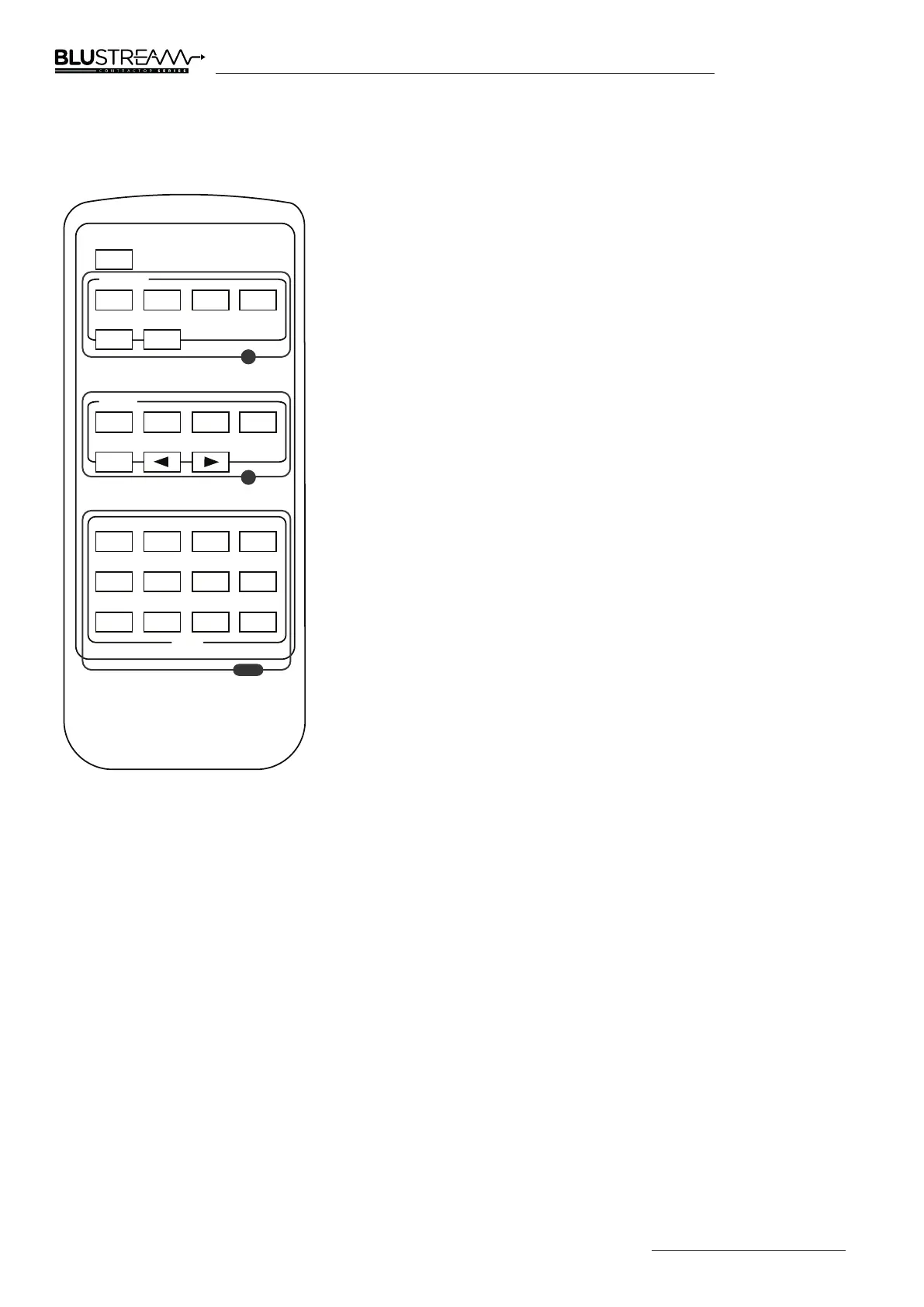

Infrared Remote Control
POWER
OUTPUT
INPUT
1 2 3 4
1 2 3 4
1080I
2.0CH
USER 1 USER 2 FN1 FN2
EDID
5.1CH 7.1CH COPY
1080P 3D 4K
ALL
PTPALL
EDID
B
A
OUTPUT AND INPUT SELECTION
A. Select the zone OUTPUT you wish to change the source on
(Numbers 1-4 correspond to the zone outputs 1-4).
B. Select the source INPUT you wish to change on the selected zone to
(Numbers 1-4 corresponds to the source inputs 1-4).
C. Press PTP button If you wish to instantly mirror all inputs and outputs
(Example - Input 1 to output 1, input 2 to output 2 etc).
EDID SET UP
The C44-KIT Matrix provides a comprehensive range of EDID settings. Below
are three examples of how to deploy the desired EDID setting when using the
supplied remote.
A. Fix EDID to an Input or ALL inputs: Press the desired video resolution
button (1080i / 1080p / 3D / 4K), then select the desired audio format
(2.0ch / 5.1ch / 7.1ch), then select the source input you want this EDID
information allocated to by pressing the INPUT 1–4 or the ALL button.
B. Copy EDID of Output-X to an Input or ALL: Press the COPY button then
select the OUTPUT you wish to copy the EDID information from, then
select the source input you want to copy this EDID to by selecting the
INPUT 1-4 or the ALL button.
NOTE: THE BUTTON PRESS SEQUENCE SHOULD BE FINISHED IN 3
SECONDS, OTHERWISE THE OPERATION IS DISCARDED.
