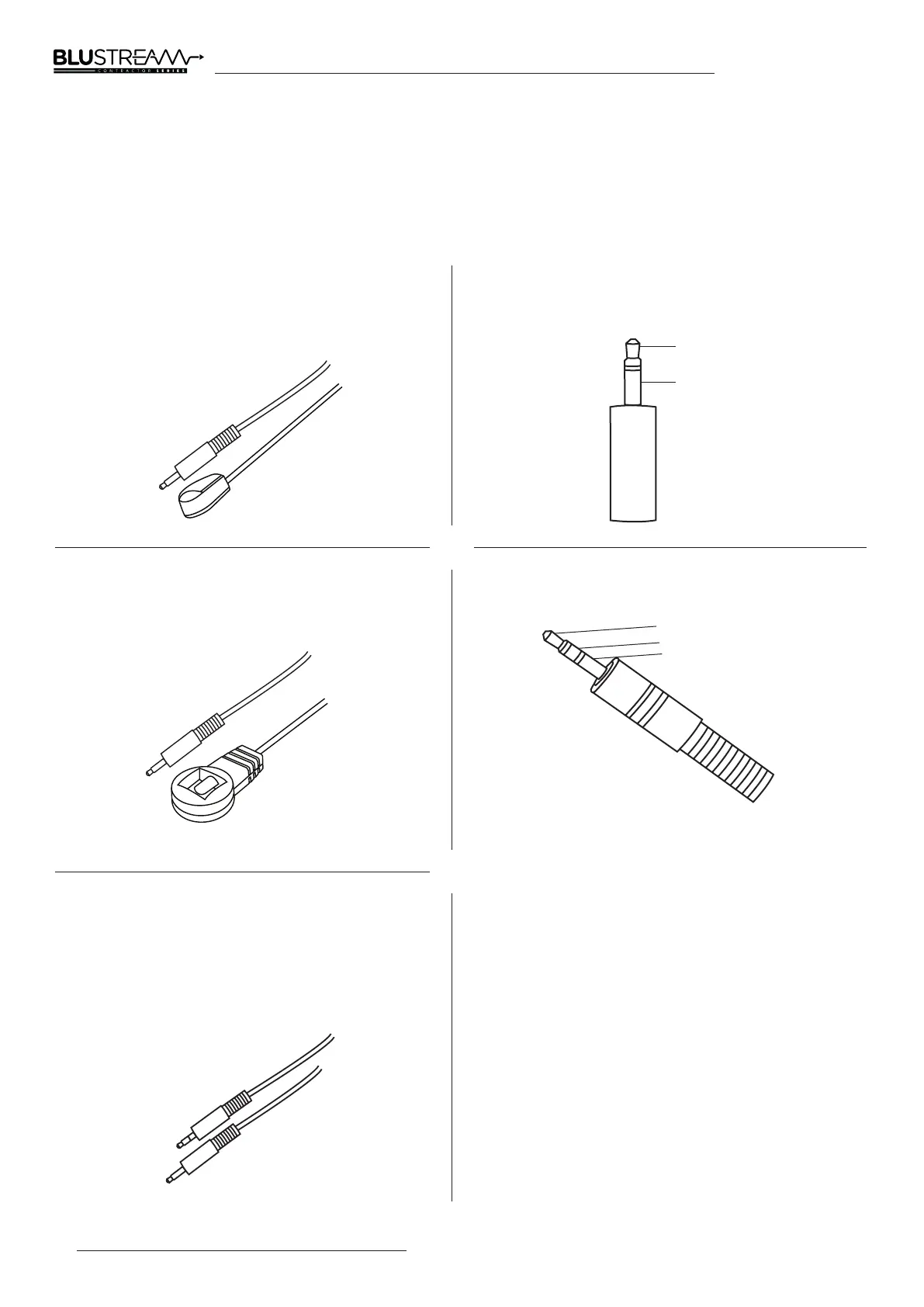

The Blustream range of matrix products include multiple options for control and routing of IR.
IMPORTANT: Blustream Infrared products are all 5V and NOT compatible with alternative manufacturers
Infrared solutions. When using third party 12V IR control solutions please use optional Blustream IRCAB cable
for IR conversion.
IR Emitter - IRE1 & IRE2 (IRE2 sold separately)
Blustream 5V IR Emitter designed for discrete IR control
of hardware.
IR Receiver - IRR
Blustream 5V IR receiver to receive IR signal and
distribute through Blustream products.
IR Control Cable - IRCAB
Blustream IR Control cable 3.5mm Mono to 3.5mm
Stereo for linking third party control solutions to
Blustream products.
Compatible with 12V IR third party products.
Note: Cable is directional as indicated.
Infrared 3.5mm Pin-Out
IR Emitter - Mono 3.5mm.
IR Receiver - Stereo 3.5mm
Infrared Distribution
Signal
Ground
Signal
5V
Ground
