C44-KIT USER MANUAL
www.blustream.com.au | www.blustream-us.com | www.blustream.co.uk 04
1 IR Outputs 1 to 4 – 3.5mm stereo
jack. Routed IR 5V emitter outputs
for discrete source control
2 IR Inputs 1 to 4 – 3.5mm stereo
jack. Sends 5V IR out to corre-
sponding HDBaseT™ zones
3 HDMI Output 1 – Output for
displays (Output linked to HDBa-
seT™ Output 1)
4 TCP/IP (RJ45) – Connect to LAN
for TCP/IP control of matrix
5 RS-232 Port - For control of the
Matrix from PC or third party con-
trol processor.
6 EDID Dip-switch – Used for global
EDID settings
7 HDMI Inputs 1 to 4 – Connect
HDMI sources
8 HDBT Outputs 1 to 4 – Output for
displays
9 IR Extension Receiver Input –
3.5mm stereo jack. 5V input for
connection of a remote IR sensor
or control processor for remote IR
control of the matrix
q Power Port – Use included
24V/3.5A DC adaptor to power the
matrix switcher and HDBaseT™
receivers

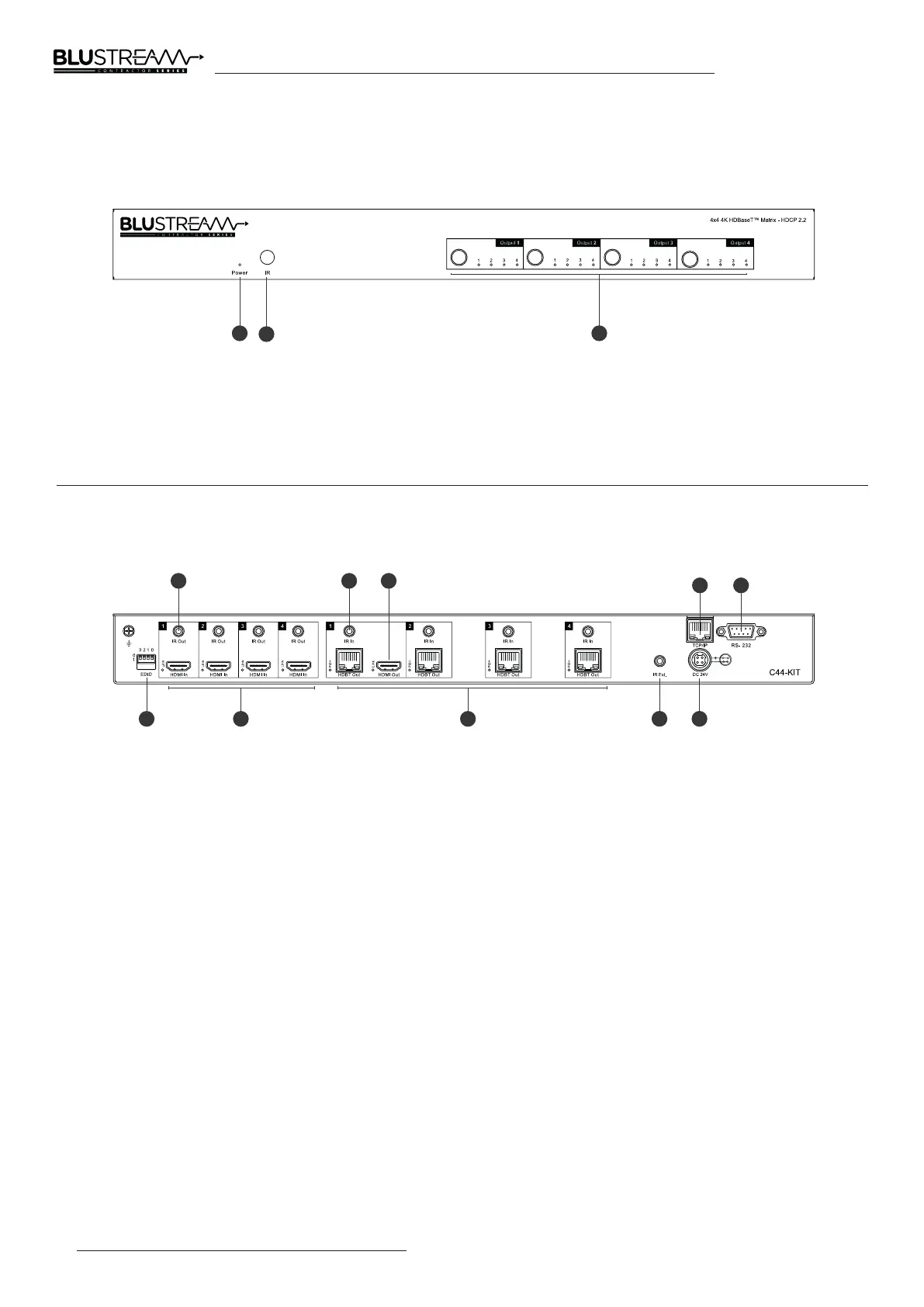

Rear Panel
Front Panel
Panel Descriptions
3311
1 2
6 87
9
2
4 5
3
10
1 Power LED Indicator
2 IR Receiver Window
3 HDMI Output Selection Buttons 1-4 - Press to scroll through source inputs per HDMI output
