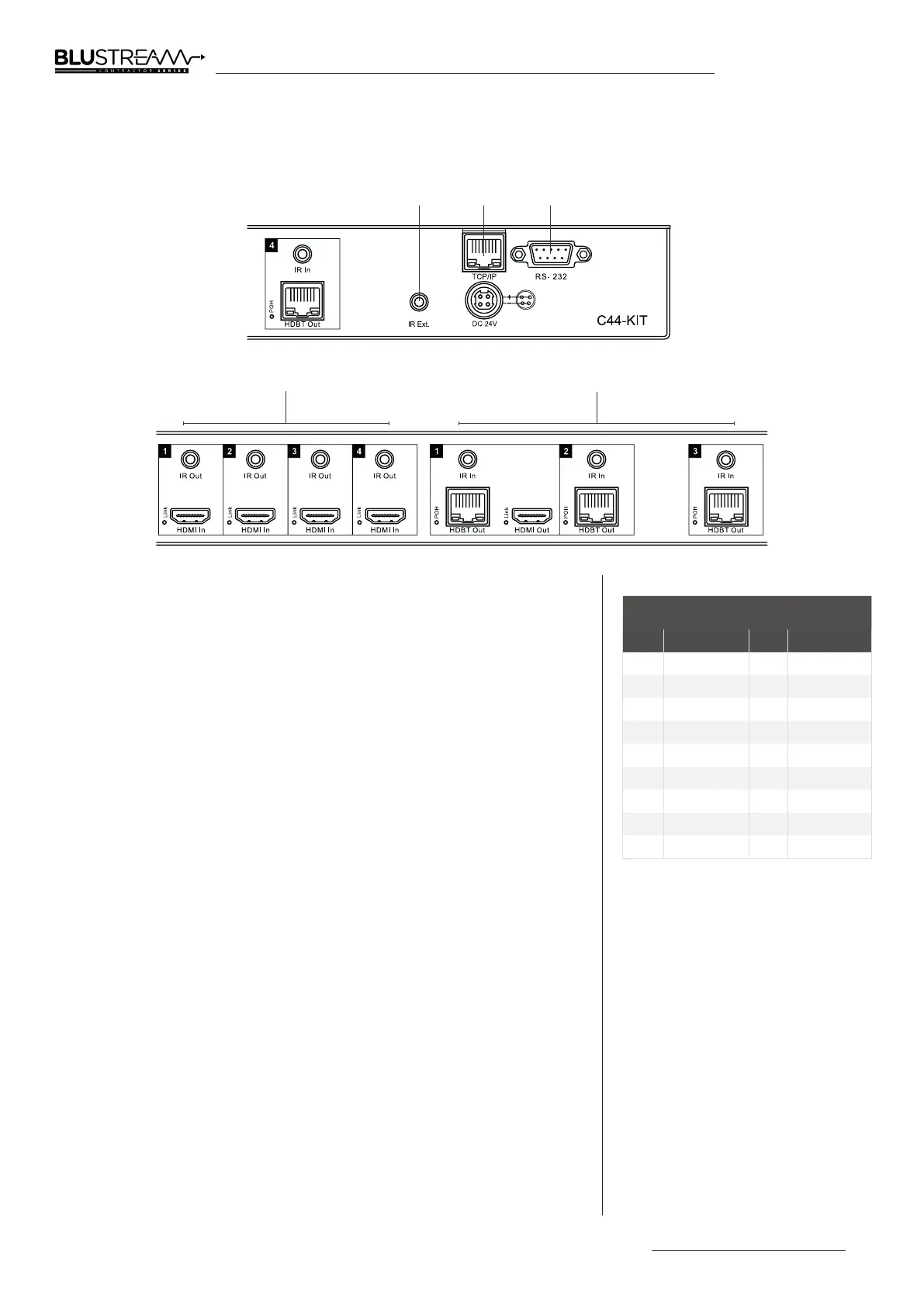

The C44 Matrix main communication ports are located on the rear panel and includes the following connections:
Connections:
A. Global IR Input 3.5mm stereo jack - For control of the Matrix Switcher*
B. TCP/IP – For control of the Matrix (RJ45 Connector)
C. RS-232 – For control of the Matrix (9 pin serial connection)
D. IR Output (3.5mm mono jack) for routed IR control of source equipment*
E. IR Input (3.5mm stereo jack) for IR pass-through to the associated output
HDBaseT Receiver*
*Note - Blustream products use 5V IR hardware. For further details please
see page 8 ‘Infrared Distribution’
Blustream C44-KIT Matrix is supplied with all required 5V IR emitters and
receivers
TCP/IP
The Blustream C44-KIT Matrix can be controlled via TCP/IP.
For the full list of protocols please see ' RS-232 and Telnet Commands'
located at the rear of this manual.
The C44-KIT Matrix features a built-in web browser user interface allowing
control and configuration of the matrix. For further details please see page 17
‘Web Browser Interface’.
A ‘Straight-through’ RJ45 patch lead should be used.
RS-232 2-Way
The Blustream Matrix can be controlled via a 9-pin serial cable.
For the full list of protocols please see 'RS-232 and Telnet Commands'
located at the rear of this manual.
Details of RS-232 pin assignment and communication are adjacent. Please
note that depending on your control device serial port pin configuration you
may require either a ‘Straight’ RS-232 cable or ‘Null-modem’ type.
Control Ports
BLUSTREAM RS-232 REMOTE CONTROL
CONSOLE
PIN Assignment PIN Assignment
1 NC 1 NC
2 Tx 2 Rx
3 Rx 3 Tx
4 NC 4 NC
5 GND 5 GND
6 NC 6 NC
7 NC 7 NC
8 NC 8 NC
9 NC 9 NC
Baud Rate: 57600 bps
Data Bit: 8-bit
Parity: None
Stop Bit: 1-bit
Flow Control: None
A B
D E
C
