C44CS-KIT/C66CS/C88CS USER MANUAL
www.blustream.com.au | www.blustream-us.com | www.blustream.co.uk 24
Matrix Main (MCU) Firmware Update
The Matrix main (MCU) firmware update is completed from within the Matrix web-GUI. It is important that the web-
GUI firmware is applied PRIOR to updating the main MCU firmware for the Matrix.
To update the main (MCU) firmware:
1) Login to the matrix web-GUI:
Default IP Address is: 192.168.0.200
Default Username is: blustream Default Password is: 1234
Please note: as before, if the default network settings have been changed please use the custom IP address to login
to the product.

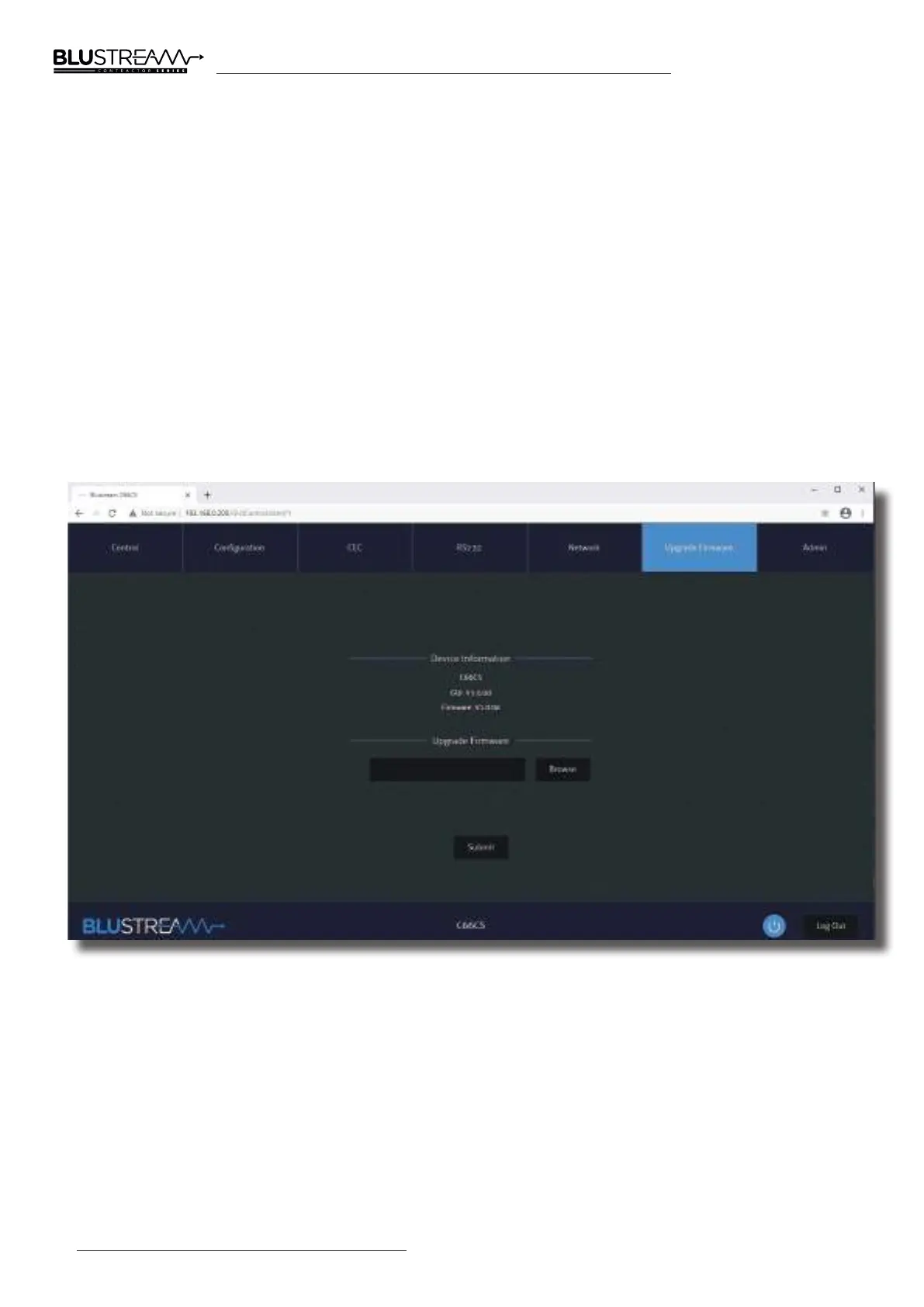

2) Once the main product web-GUI has been accessed, click on the tab at the top of the page marked ‘Upgrade
Firmware’:

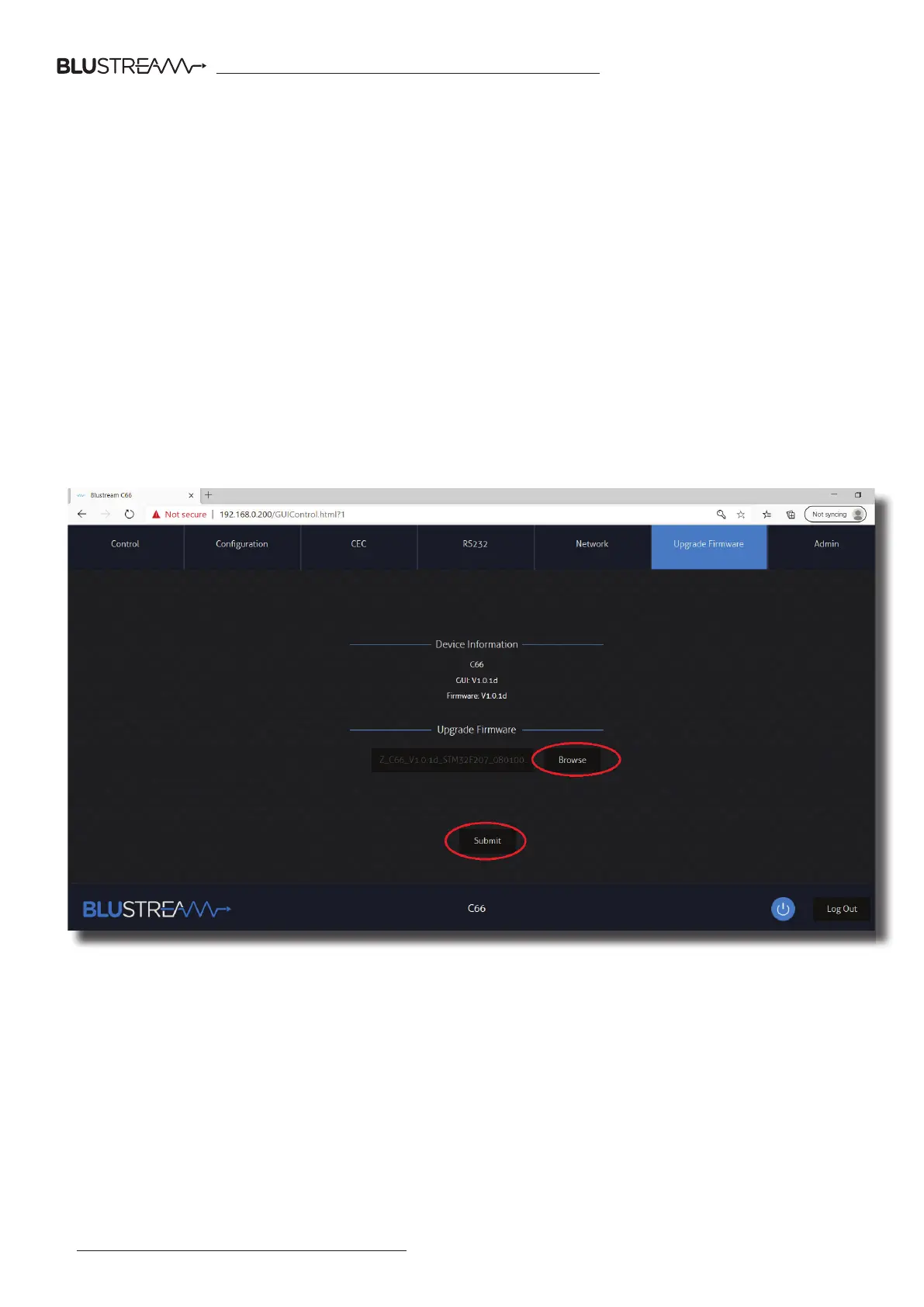

3) Select ‘Browse’
4) Press ‘Choose File’ and select the main (MCU) firmware file downloaded from the Blustream website. This will be a
.app type file.
To Next Page
