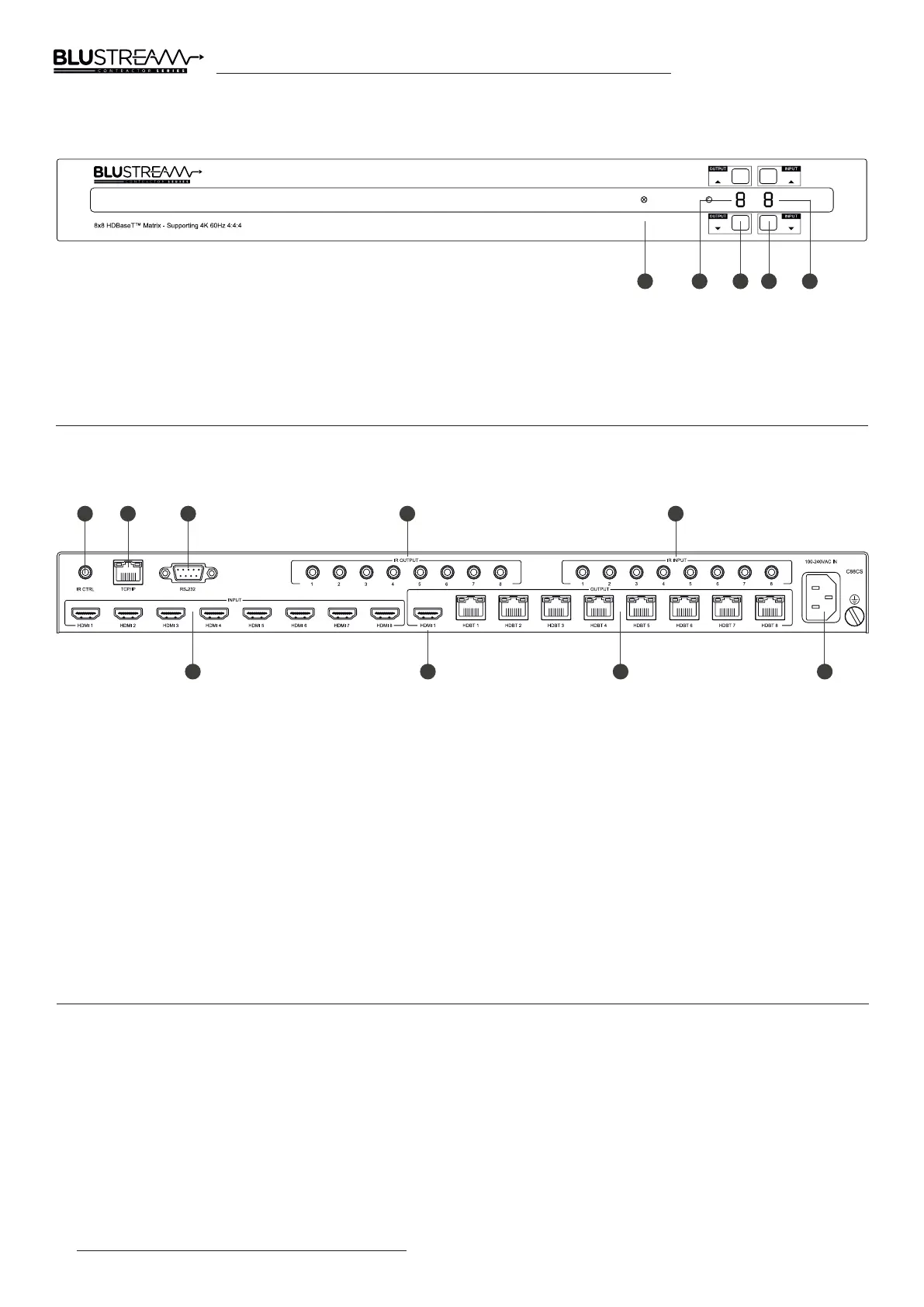

Front Panel Description
1 IR Receiver - Built in IR sensor for IR remote control of matrix
2 Output LCD - Shows the currently selected output
3 Output Up / Down Button - Press to adjust the selected output up or down
4 Input Up / Down Button - Press to adjust the selected input up or down
5 Input LCD - Shows the currently selected input
1 IR Control Input - 3.5mm stereo connector to connect to Blustream IR receiver for IR control of the matrix
2 TCP/IP - RJ45 connector for TCP/IP and Web GUI control of the matrix
3 RS-232 - DB9 connector for RS-232 control of the matrix, and RS-232 pass-through
4 IR Emitter Outputs - 3.5mm mono connector to connect to Blustream IR emitter. Used for local source control
5 IR Receiver Inputs - 3.5mm stereo connector to connect to Blustream IR receiver. Used to extend IR from matrix to
HDBaseT™ outputs 1-8
6 HDMI Inputs - connect to source devices
7 HDMI Output - connect to display device or AVR
8 HDBaseT™ Outputs - RJ45 HDBaseT ™ port to connect to the HDBaseT ™ input port of the compatible Blustream
HDBaseT™ receiver
9 IEC Power socket - use supplied IEC power cable
Rear Panel Description
1 3 4 52
6 7 8 9
1 2 3 4 5
