There are recommended Blustream HDBaseT™ transmitter and receiver options that are compatible with the
HDBaseT™ CSC input and output boards of the Custom Pro matrix:

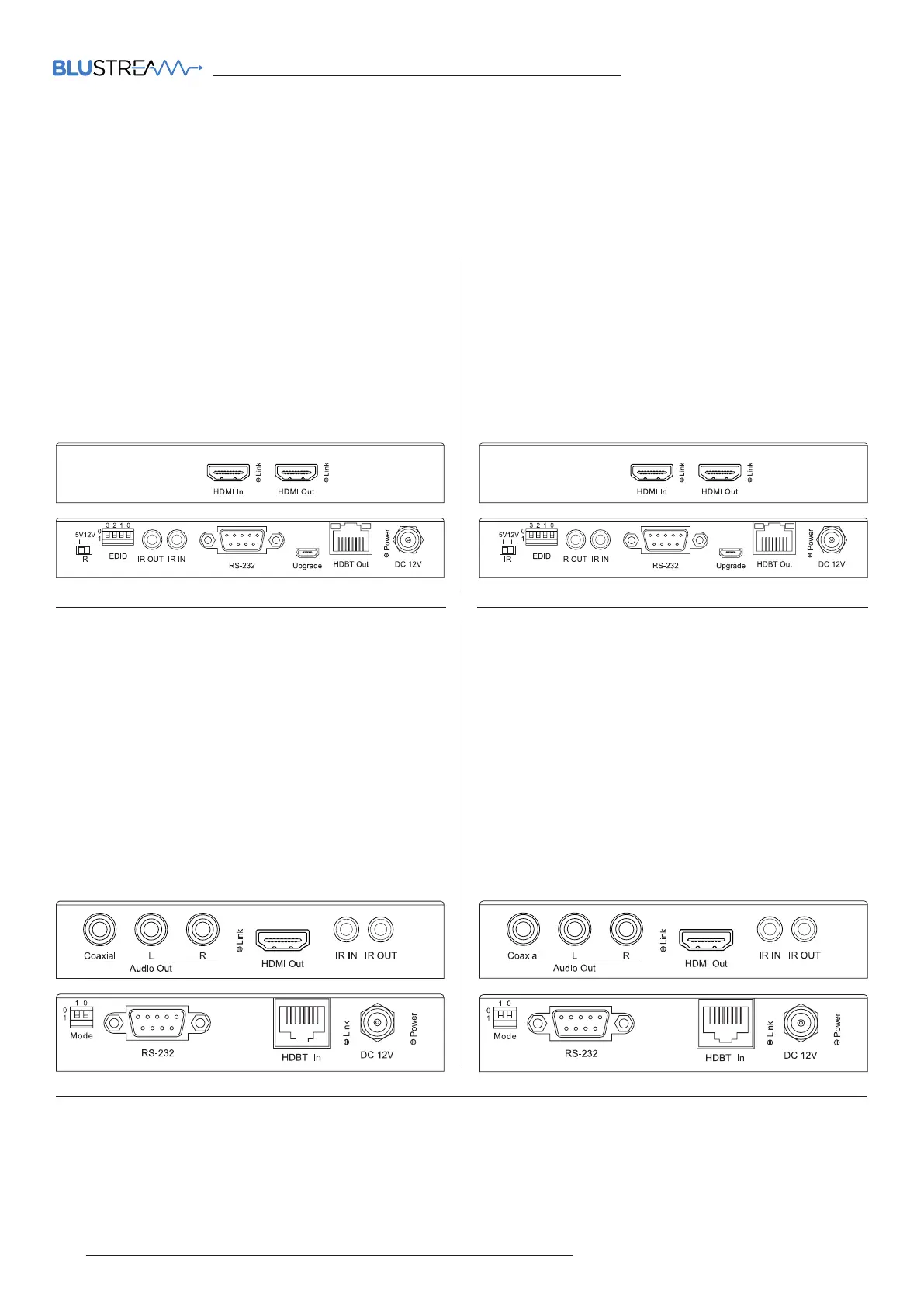

HEX70CS-TX - HDBaseT™ Transmitter
• HDBaseT™ CSC transmitter with HDMI loop out
• 2-Way 5V or 12V IR, and RS-232 pass-through
• Local EDID management
• Supports distances up to 40m @ 4K 60Hz 4:4:4, and 70m
@ 1080p
Please Note: IR routing requires PRO-8IR-V2 board. RS-232
routing requires PRO-8RS232 board.
HDBaseT™ Transmitter & Receiver Options
Using Other Blustream HDBaseT™ Receivers or Transmitters
Whilst HDBaseT™ as a technology is interoperable, and Blustream have designed their HDBaseT™ equipment to be
interoperable, using other HDBaseT™ receivers or transmitters will likely limit the performance of the system. The
HDBaseT™ receivers and transmitters noted above have been designed to specifically work, and are recommended
with the Custom Pro HDBaseT™ output and input boards.
HEX70CS-RX - HDBaseT™ Receiver
• HDBaseT™ CSC receiver
• 2-Way IR, and RS-232 pass-through
• Audio breakout (simultaneous coaxial digital and 2x RCA
L/R analogue fixed 2ch output)
• Supports distances up to 40m @ 4K 60Hz 4:4:4, and 70m
@ 1080p
• PoC (Power over Cable) to power receiver from matrix
output
Please Note: IR routing requires PRO-8IR-V2 board. RS-232
routing requires PRO-8RS232 board.
HEX100CS-RX - HDBaseT™ Receiver
• HDBaseT™ CSC receiver
• 2-Way IR, and RS-232 pass-through
• Audio breakout (simultaneous coaxial digital and 2x RCA
L/R analogue fixed 2ch output)
• Supports distances up to 70m @ 4K 60Hz 4:4:4, and 100m
@ 1080p
• PoC (Power over Cable) to power receiver from matrix
output
Please Note: IR routing requires PRO-8IR-V2 board. RS-232
routing requires PRO-8RS232 board.
HEX100CS-TX - HDBaseT™ Transmitter
• HDBaseT™ CSC transmitter with HDMI loop out
• 2-Way 5V or 12V IR, and RS-232 pass-through
• Local EDID management
• Supports distances up to 70m @ 4K 60Hz 4:4:4, and 100m
@ 1080p
Please Note: IR routing requires PRO-8IR-V2 board. RS-232
routing requires PRO-8RS232 board.
