CUSTOM PRO MATRIX USER MANUAL

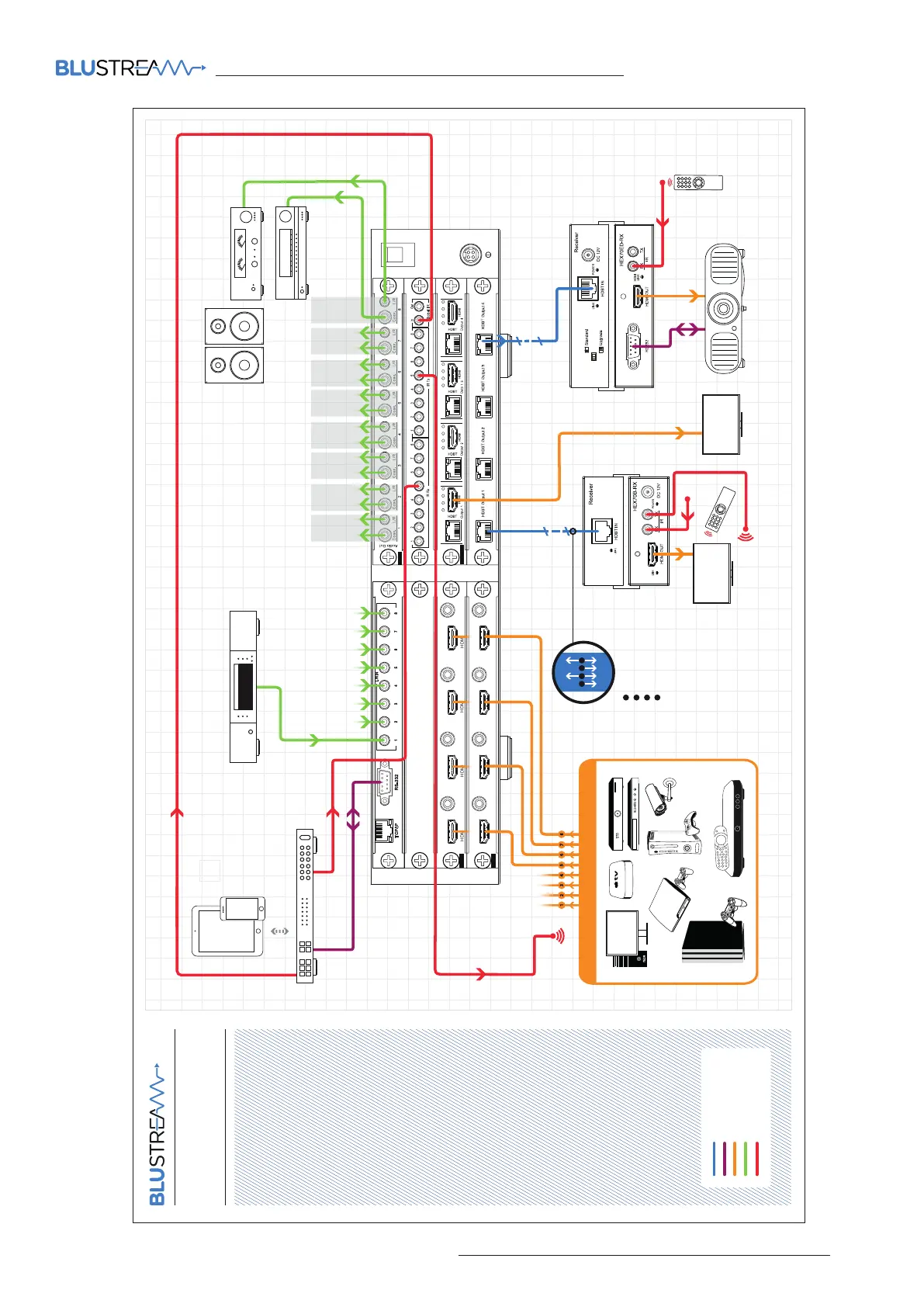

Example Schematic 8x8 Chassis
CAT Cable RS-232 HDMI Audio IR Cable
OUT4TLS-V2
HDMI In 1 HDMI In 2
HDMI In 3
HDMI In 4
IN4HAB
L/R L/R L/R L/R
HDMI In 1 HDMI In 2
HDMI In 3
HDMI In 4
IN4HAB
L/R L/R L/R L/R
8ABV
















Audio Source
Maximum of 8 4K Sources
Both outputs from the same zone, HDMI and HDBT will output the same signal


Display 2
Display 1
In
Out
Up To 70m Max
A B C D
HDMI IR Power over Cable RS-232
A
B C D
Control Processor
