CUSTOM PRO MATRIX USER MANUAL

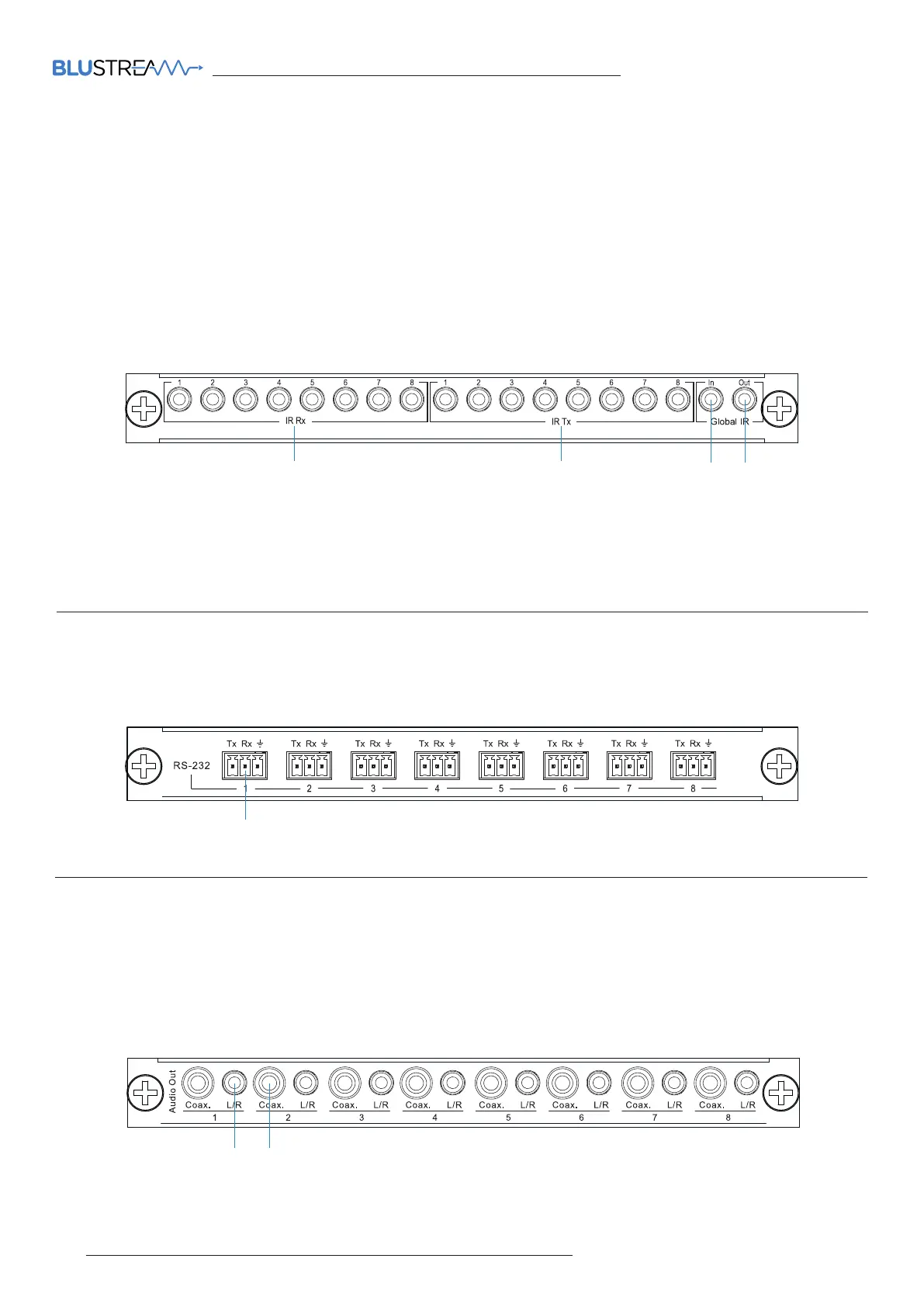

Custom Pro Matrix Feature Boards
PRO-8RS232 - 8-Way RS-232 Routing Board
• 8 x bi-directional RS-232, 3-pin phoenix
• Supplied with 8 x 3-pin phoenix connector blocks
PRO-8ABV - 8-Way Audio Breakout Board with Line Level Volume Control
• 8 x coaxial digital, RCA
• 8 x simultaneous analogue L/R, 3.5mm stereo jack
Please Note: when using the analogue audio outputs, the audio input must be 2ch PCM audio as the Custom Pro
matrix does not down-mix multichannel audio signals.
1 Analogue fixed 2ch output 3.5mm stereo jack
2 Coaxial digital output
1 3-pin RS-232 phoenix connectors
PRO-8IR-V2 - 8-Way Bi-Directional IR Control Board
• 8 x IR inputs (IR Rx), 3.5mm stereo jack
• 8 x IR outputs (IR Tx), 3.5mm mono jack
• 1 x Global IR input (3.5mm stereo jack), 1 x Global IR output (3.5mm mono jack)
• As standard this card is set to accept / send 5V IR signals. To change to 12V, please remove the card from the
chassis and adjust the switch located towards the back of the main PCB of the control card
• 5V IR cabling supplied
Please Note: the PRO-8IR-V2 is not required for the CUSTOMPRO-HUB16. IR cards are supplied as standard within this
chassis.
1 8 x 3.5mm stereo 5V/12V IR inputs for distribution of IR to compatible HDBaseT™ receivers
2 8 x 3.5mm mono 5V/12V IR outputs for routed control of local source hardware from compatible HDBaseT™ receivers
3 1 x 3.5mm stereo 5V/12V IR input for global IR control (used for control of matrix and distribution of IR to all IR TX ports)
4 1 x 3.5mm mono 5V/12V IR output for global IR output (all matrix / HDBaseT™ extender IR RX signals will output on the
Global IR output)
1 2 3 4
1
1 2
