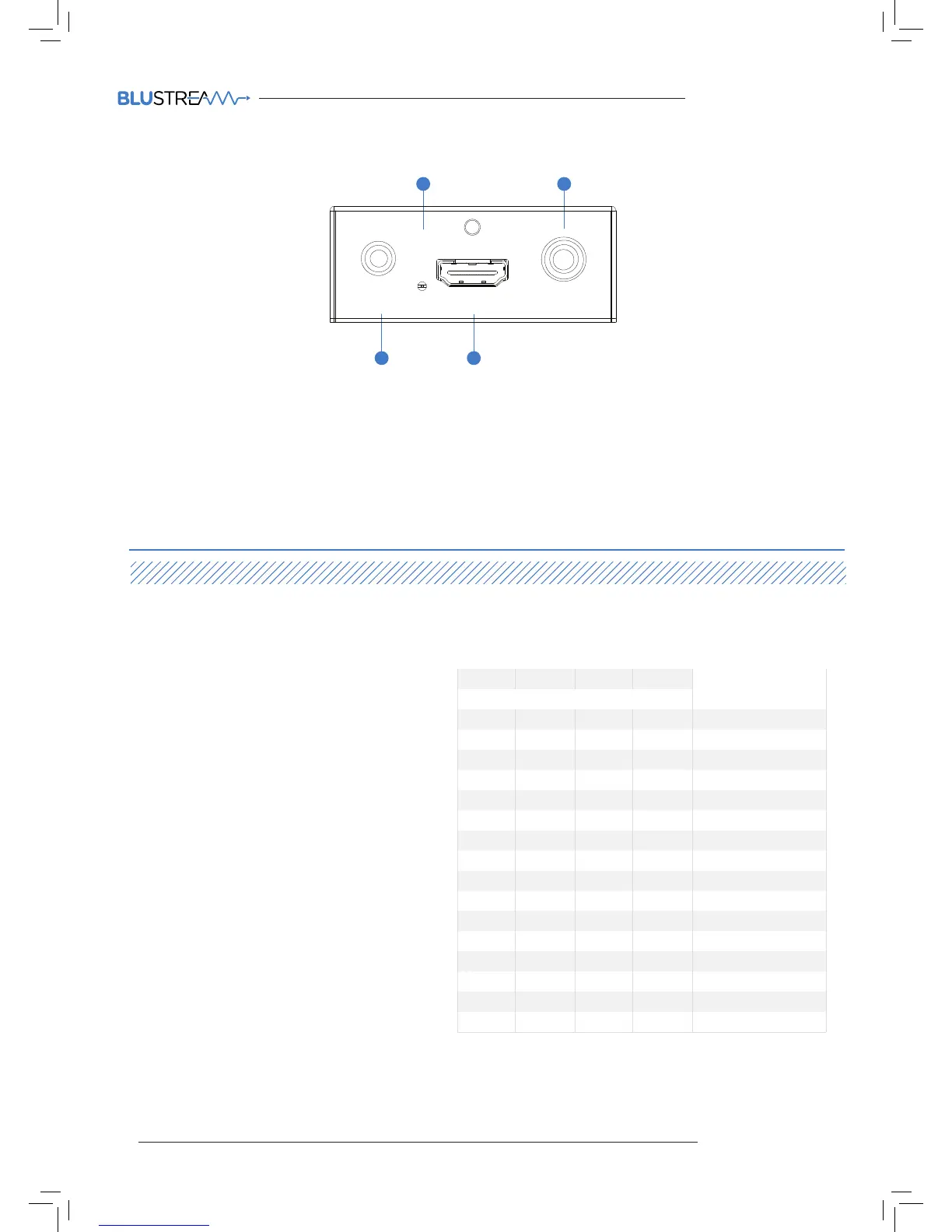

Rear Panel
1
3
2
4
3 2 1 0
EDID Type
Combination of DIP positions
0 0 0 0 Copy EDID from output
0 0 0 1 1080P 2.0CH
0 0 1 0 1080P 5.1CH
0 0 1 1 1080P 7.1CH
0 1 0 0 1080i 2.0CH
0 1 0 1 1080i 5.1CH
0 1 1 0 1080i 7.1CH
0 1 1 1 3D 2.0CH
1 0 0 0 3D 5.1CH
1 0 0 1 3D 7.1CH
1 0 1 0 4K 2.0CH
1 0 1 1 4K 5.1CH
1 1 0 0 4K 7.1CH
1 1 0 1 DVI 1280x1024
1 1 1 0 DVI 1920x1080
1 1 1 1 DVI 1920x1200
1 HDMI LED indicator - Lit when detecting a HDMI
connection to a display/end point.
2 Digital Coaxial Out—Extracted audio from the HDMI input.
3 L/R Out Analogue Audio Out - Extracted audio from HDMI
input (Compatible with 2ch PCM only).
4 HDMI Output - Connect to the HDMI display.
HDMI Output
Coaxial OutAnalog Out
HDMI Link
EDID Control
EDID (Extended Display Identification Data) is a data structure that
is used between a display and a source. This data is used by the
source to find out what audio and video resolutions are supported
by the display then from this information the source will determine
what the best resolution is to output.
While the objective of EDID is to make connecting a digital display
to a source a simple plug and play procedure issues do arise when
multiple displays or video matrix switching is introduced because
of the increased number of variables.
By pre-determining the video resolution and audio format of
the source and display device you can potentially work around
compatibility issues associated with some display and source
combinations.
To change the EDID settings move the EDID dip-switches as
required on the front panel of the unit. Please see adjacent
table for settings.
Note: You must power-cycle the HDCP11AB aer changes
have been made in order for the EDID settings to update.
