ACM200 API DEVELOPMENT
04
www.blustream.co.uk / www.blustream.com.au

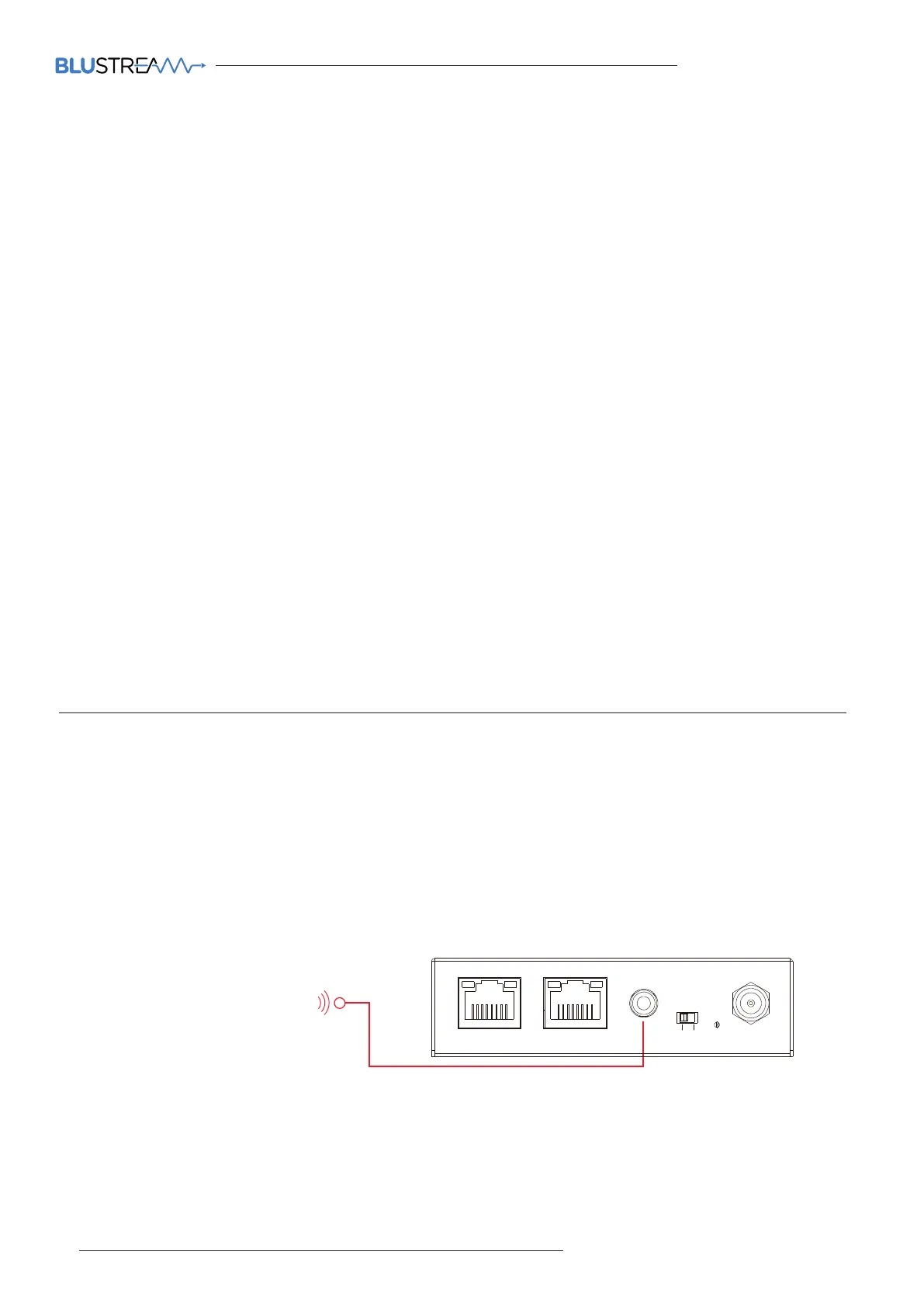

The Blustream Multicast system can be controlled using local InfraRed control from a third party control system.
Note: Only the source selection feature is available using local IR control. For advanced features such as video wall mode, audio
embedding etc. you will need to use RS-232 or TCP/IP control.
Blustream have created 16x input & 16x output IR commands allowing source selection of up to 16x IPxxxUHD-TX Transmitters
on up to 16x IPxxxUHD-RX Receivers. For systems larger than 16x source devices (IPxxxUHD-TX) it is recommended to use RS-232
or TCP/IP control.
Infrared Control
Link
RXTX
CH Select
IR IR
Rx
Tx
Gnd
RS-232
CH
IP100UHD-RXMULTICAST UHD
1 2 3 4
41 42 43 44
45 46 47 48
49 50 51 52
53 54 55 56
57 58 59 60
61 62 63 64
65 66 67 68
69 70 71 72
73 74 75 76
77 78 79 80
5 6 7 8
9 10 11 12
13 14 15 16
17 18 19 20
21 22 23 24
25 26 27 28
29 30 31 32
33 34 35 36
37 38 39 40
MULTICAST
Third Party Control System
Video LAN(PoE)
Control LAN
IR Ctrl
IR
5V
12V
DC 12V
Power
Link Link
PoE
IO Level
Reset
VOut
IO4
IO3
IO2
IO1
5V Normal
RS-232
MCU
12V
ACM200
Yellow Green Yellow Green
The Blustream ACM200 can be controlled via serial using the serial DB9 connector.
For the full list of command protocols please see ‘RS-232 & Telnet Commands’ located at the rear of this manual.
RS-232 Control
Baud Rate: 57600
Data Bit: 8-bit
Parity: None
Stop Bit: 1-bit
Flow Control: None
The Baudrate for the ACM200 can be adjusted using the ACM200 bult-in web-GUI or by issuing the following commands:
RSB x : Set RS-232 Baud Rate to X bps
Where x = 0 : 115200
1 : 57600
2 : 38400
3 : 19200
4 : 9600
