EDID: IN ALL DF00
HDMI: 1080P @ 60HZ
EDID Management - Global or individual input settings
The following characters show adjusting the EDID for ‘All’ inputs (Global). Current EDID value is DF00 (Default setting 0) which is 1080p @ 60Hz.
To change the EDID value for source inputs using the Matrix front panel buttons press the following:-
a. Press MENU button.
b. Panel will display ‘EDID settings’. Press SELECT button
c. Select the input you wish to fix the EDID on (1-4) or select ‘All’. Use UP/DOWN buttons to toggle selection and ENTER button to
confirm.
d. Select video resolution required (1080p, 1080i DVI etc). Use UP/DOWN buttons to toggle selection and SELECT button to confirm.
Options are standard EDID settings (DF00-DF04) or 'COPY' EDID from outputs 1-4.
e. Press the ESC button to exit.

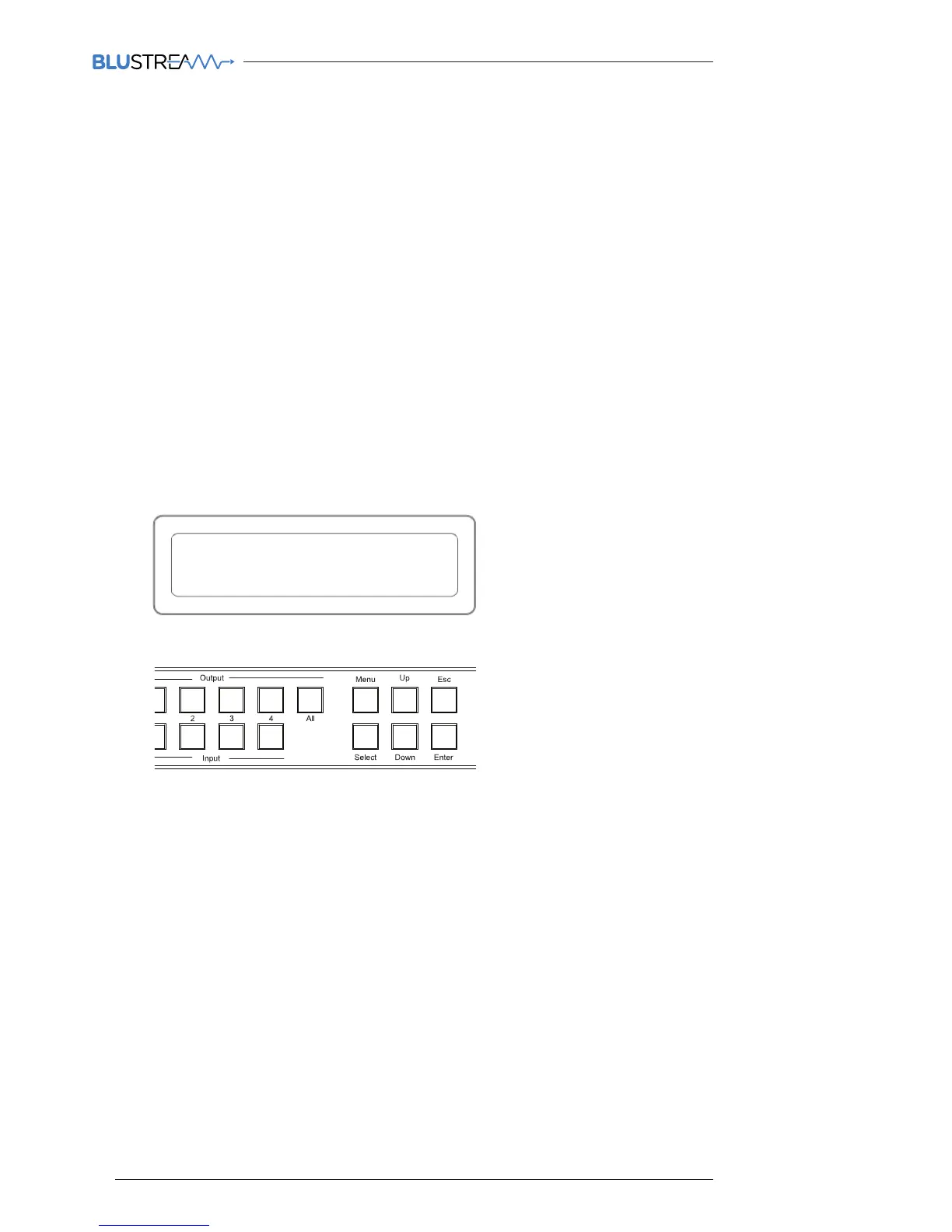

Matrix Front Panel Control
Turning On/O HDMI outputs
It is possible to turn o each individual HDMI output using RS-232, TCP/IP or in-built Web GUI interface. This can be helpful when using panels
with a 'signal sense' power on/o feature.
Please see page 17 for list of product RS-232 and Telnet commands.
Note: There is no indication on the front panel to inform users that the outputs of the Matrix have been turned o. If you are unsure of the
status of the zone outputs you can force all outputs back on in one of two ways:
• Powering OFF/ON the matrix. All outputs will be turned on when powered up.
• Zone outputs can be forced back on by pressing and holding ‘OUTPUT 1’ button on the front panel for 10 seconds. The matrix will
reset and all outputs will be turned back on.
