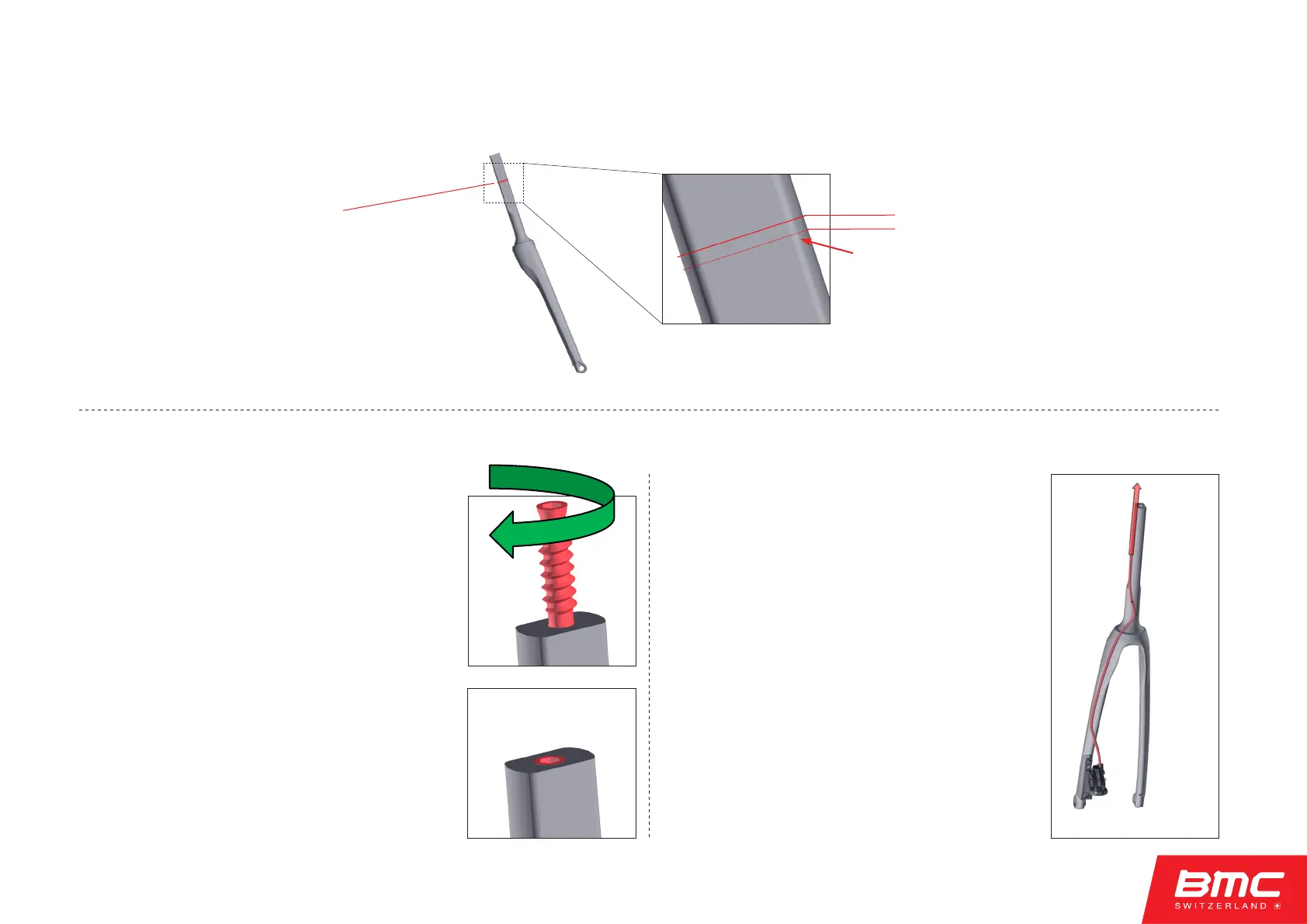

4.3.3 Install self-tapping compression nut
• The Roadmachine 01 IC Fork comes with an
internal channel which receives a self-tapping
compression nut.
• Install the self-tapping compression nut, making
certain it remains aligned with the steerer
• Tighten until the top of the compression nut is
flush with the top of the fork
4.3.4 Route brake housing
• Route the housing through the internal guide,
starting at the axle dropout and working towards
the steerer tube.
• It is recommended to assemble the caliper-end of
the hydraulic system (connector insert, olive, and
inserting the threaded connector bolt) – this will
help hold the hose in place during future assem-
bly steps.
4.3 Preparing and Installing Fork
4.3.2 Cut fork
• Use the mark on the steerer tube
to assign a proper cutting location.
Cut the steerer tube
3mm below the mark!
Cut line
3mm
4. Frameset assembly
}
ROADMACHINE - Integrated Cockpit System (ICS) Instruction Manual
