BMC Timemachine User Manual

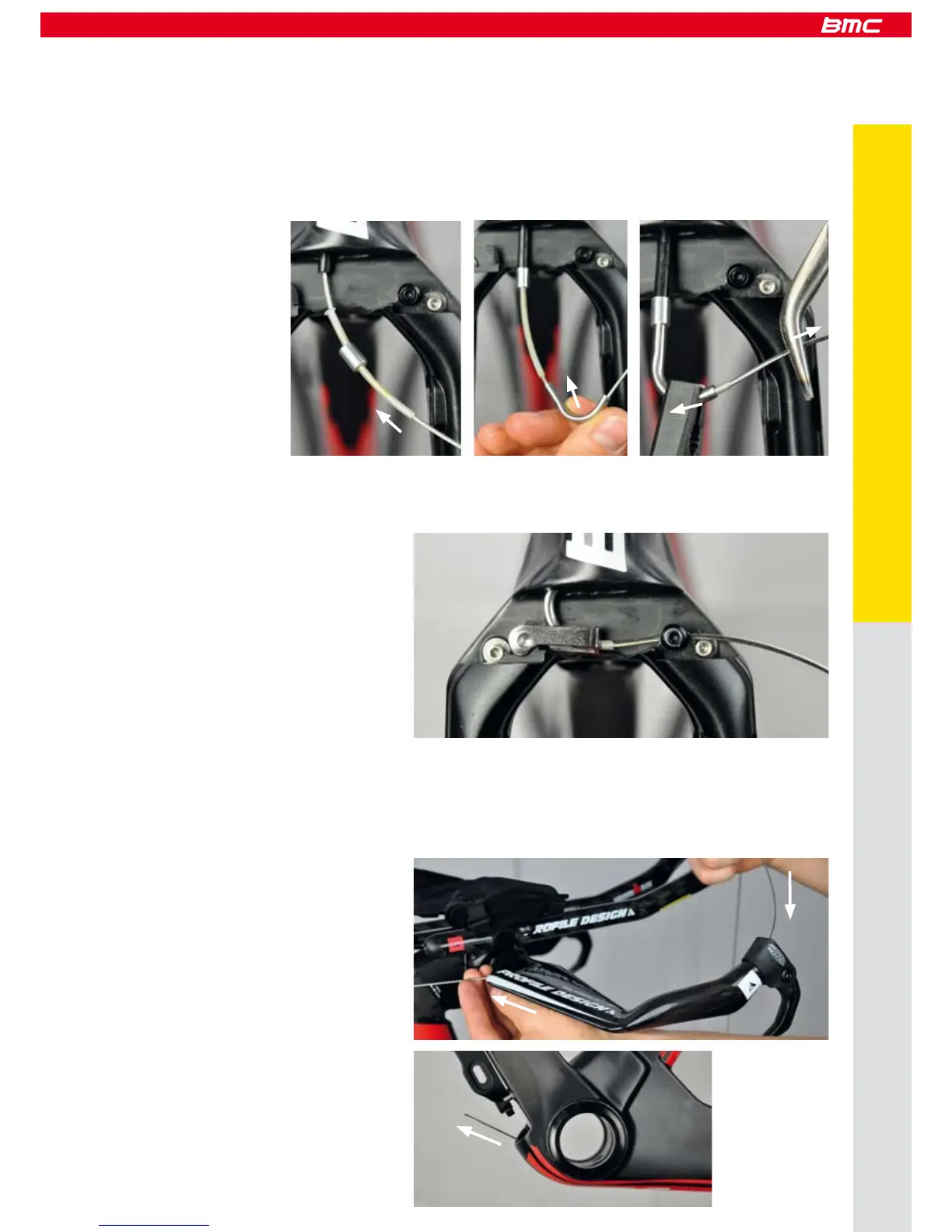

Installing the pipe on front brake
- Always run the housing of the pipe onto the cable first (7), then run the cable into the metallic pipe (8). Pull the cable until the
housing sits well inside the pipe (9).
- Install the pipe holder while running the brake cable through the brake arm.
Brake cable routing (rear)
- Run the rear brake cable inside the bars (1) and then the frame, entering the top tube with the cut end of the cable (2).
98
7
10
1
2
18 | 19
Building
Building a timemachine
