Hingefork and headset

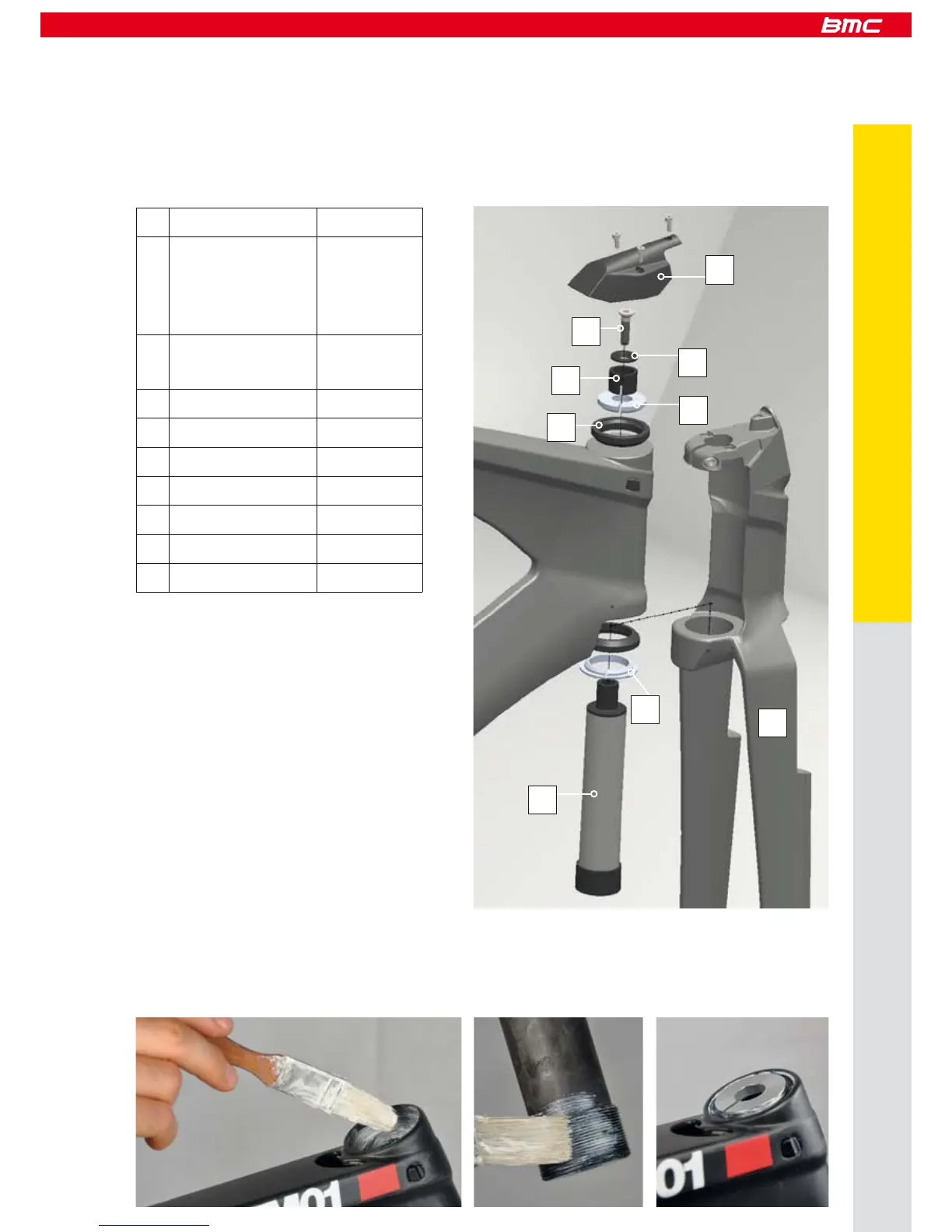

Parts overview
- Apply grease on the bearing seats (1) and all metal parts (2). Install bearings and crown races (3).
Assembly procedure
Description Part N°
1 Hingefork 210510 (S Red)
210511 (M Red)
210512 (L Red)
210799 (S Blue)
210800 (M Blue)
210801 (L Blue)
2 Steer tube 210527 (S)
210528 (M)
210529 (L)
3 Bearings 210994
4 Lower crown race 210526
5 Upper crown race 210526
6 Slotted sleeve 210526
7 Top cap 210526
8 Headset bolt 210526
9 Stem cover 210524
1
2 3
28 | 29
Building
1
2
3
4
5
6
7
8
9
Building a timemachine
