Reagent injectors (optional)
Top View, Reagent Box
FLUOstar OPTIMA & POLARstar OPTIMA
Reagent injectors (optional)
Transport pin

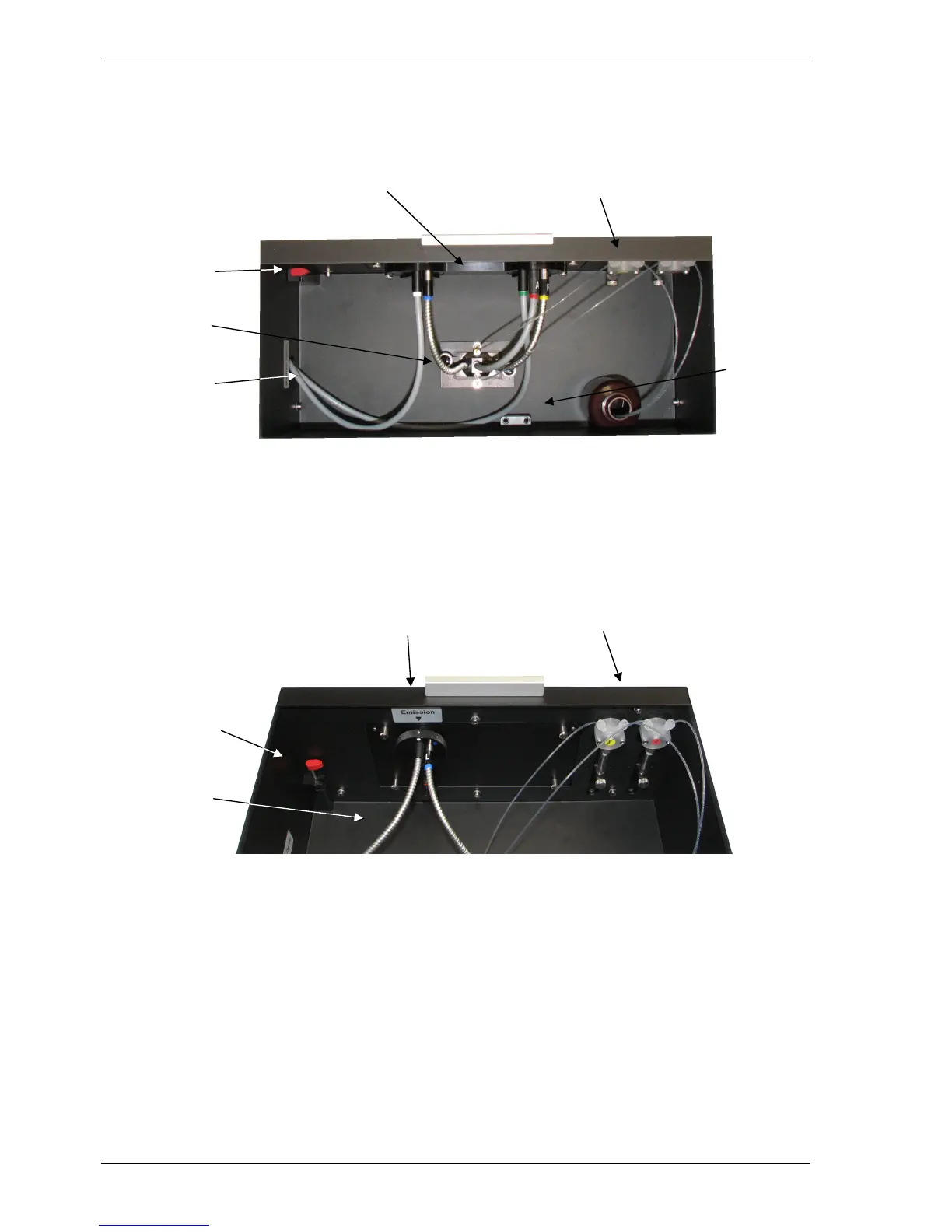

Figure 8: FLUOstar OPTIMA & POLARstar OPTIMA top
view of reagent box with combi-optic and 2 reagent injectors
Top View, Reagent Box
LUMIstar OPTIMA
Transport pin
Figure 9: LUMIstar OPTIMA top view of reagent box with 2 reagent injectors
Injection
needle
holder
Measurement
head position
Bottom optic
Bottom optic
Filter wheel cover
(for emission filter wheel)
Filter wheel cover
(for emission filter wheel and
excitation filter wheel)
